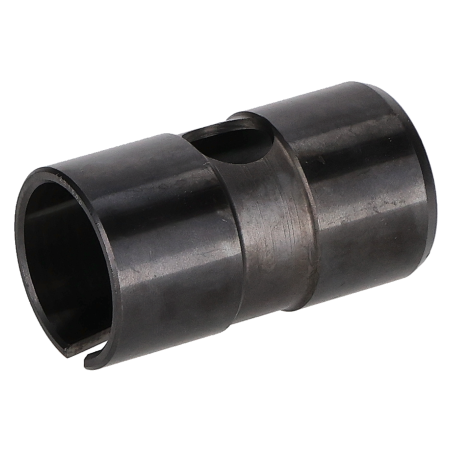

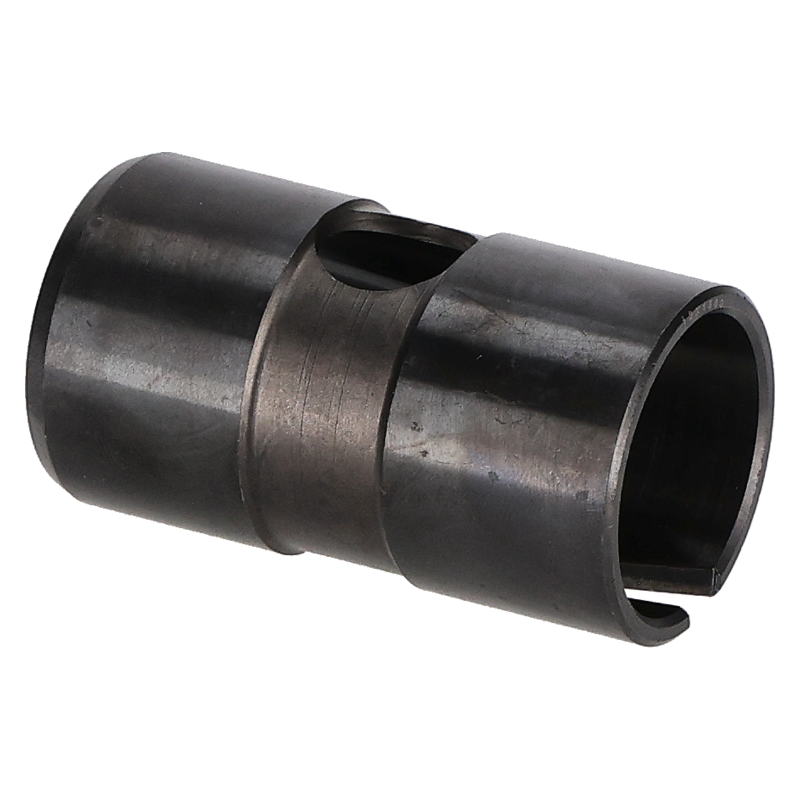

Bush in the arm/bucket lifting cylinder suitable for JCB
CORESPEX

Bush in the arm/bucket lifting cylinder suitable for JCB

Catalog number:SKX828956CX Nr OEM:1206/0015 Manufacturer:CORESPEX
Add a review

SPRING BUSH FOR LIFT RAM SUITABLE FOR JCB - 1206/0015

Technical Specification and Compatibility

A high-quality spring bush (rolled bush), a key component of the loader arm joints. It is fitted in the mountings of the lift ram and bucket ram. Its function is to provide a tight fit and take up play in the bore, while allowing smooth rotational movement of the pin. Made of spring steel, it is resistant to deformation and cracking.

Part number: 1206/0015
Height (mm): 69.5
Inner Diameter (mm): 33
Outer Diameter (mm): 40
Material: Spring Steel

Application in machines

Brand (Machine Type) Model
JCB (Backhoe Loaders) 1CX, 2CX, 2DX, 3CX, 4CX, MIDI CX
JCB (Skid Steer Loaders) ROBOT
JCB (Mini Excavators) Various models

The list above is for reference. We recommend verifying the dimensions on your machine before purchasing.

⚠️ Safety Warning

Replacing loader arm bushings requires the arm to be immobilized and supported. Always use certified axle stands with an appropriate load capacity. Never rely solely on the machine's hydraulics. Use safety glasses and gloves.

Service Recommendation: Ensure Maximum Lifespan

For a comprehensive and durable repair, always replace bushings in a set with new pins and seals. Regular greasing of the joints with high-quality HYPTRON grease containing molybdenum disulfide (MoS2) drastically extends the life of the bushings.

Part's Role in the Machine and Failure Diagnostics

Bushings are sacrificial components designed to wear out to protect much more expensive parts like the arm or cylinders. Ignoring worn bushings leads to play, which in turn damages the pin bores (causing them to become oval), ultimately requiring a very expensive re-boring repair.

Replace the bushings if you notice:

  • Excessive play (clunking) on the loader arm pins.
  • Loss of precision during loader operation, a "wobbly" bucket.
  • Loud squeaking or grinding from the joints, even after greasing.
  • A visible crack or displacement of the old bush.

Peace of Mind Guarantee: Why Choose Our Offer?

Ignoring play on the pins leads to irreversible damage to the bores in the ram and arm, forcing costly re-boring repairs.

A repair performed using a complete set of GX-AFTER pins and bushings is the cheapest way to avoid these problems. Secure your machine and restore its factory precision – order a complete set today.

Expert's Guide: Key Installation Tips

  1. Check the bores: Before pressing in new bushings, thoroughly clean and inspect the bores in the arm or ram. If they are worn oval, they need to be re-bored.
  2. Use a press: Use a hydraulic press with appropriate sleeves to install the bushings. Hammering them in can cause damage.
  3. Mind the gap: The slot (gap) on a spring bush should be positioned in the area of lowest load, usually at the top or bottom of the joint.
  4. Grease generously: After installation, pump in a large amount of fresh grease until it purges out, removing any contaminants from the assembly process.

Frequently Asked Questions (FAQ)

1. What is the difference between a spring bush and a solid steel or bronze bush?

A spring bush is made from a rolled-up sheet of spring steel. Its outer diameter is slightly larger than the bore, so it locks itself in place after being pressed in. A solid bush (steel or bronze) is rigid and requires a very precise interference fit.

2. I have play on the pin, but the old bush looks okay. Do I have to replace it?

Yes. Even if the bush is not cracked, the play indicates that its internal diameter has worn. Installing a new, tight pin in an old, worn bush will not eliminate the play and will lead to rapid wear of the pin. Both components should always be replaced at the same time.

3. What happens if I keep working with worn bushings?

Prolonged operation with loose pins causes the bores in the arm or ram to wear out. The holes become oval, and their repair is very expensive and requires specialized machining (a mobile line boring machine). Replacing bushings in time is the cheapest way to avoid this failure.

Key Advantages

🛡️

Working Precision

Eliminates play and restores arm rigidity.

🎯

Machine Protection

Protects expensive components from wear.

📦

High Durability

Spring steel resistant to cracking.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX828956CX
1206/0015
0.16 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
MIDI CX
MINIEXCAVATOR
ROBOT
OEM NUMBERS
1206/0015
MATERIAL
STEEL
OUTER DIAMETER (MM)
40
INNER DIAMETER (MM)
33
HEIGHT (MM)
69,5
BUSH WITH COLLAR
NO

Specific References

MPN
1206/0015
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Bush in the arm/bucket lifting cylinder suitable for JCB

Catalog number: SKX828956CX
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

23.99 zł

net price
19,50 zł
Available in large quantity Temporarily unavailable
19,50 zł
net price

23.99 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 2 points, it gives you 0.80 zł
  • Lowest price from 30 days before the discount: 23.99 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    MIDI CX
    MINIEXCAVATOR
    ROBOT
    OEM NUMBERS
    1206/0015
    MATERIAL
    STEEL
    OUTER DIAMETER (MM)
    40
    INNER DIAMETER (MM)
    33
    HEIGHT (MM)
    69,5
    BUSH WITH COLLAR
    NO
