Bush in the loader frame (link) suitable for JCB 3CX 4CX
CORESPEX

Bush in the loader frame (link) suitable for JCB 3CX 4CX

Catalog number:SKX854470CX Nr OEM:808/00297 Manufacturer:CORESPEX
Add a review

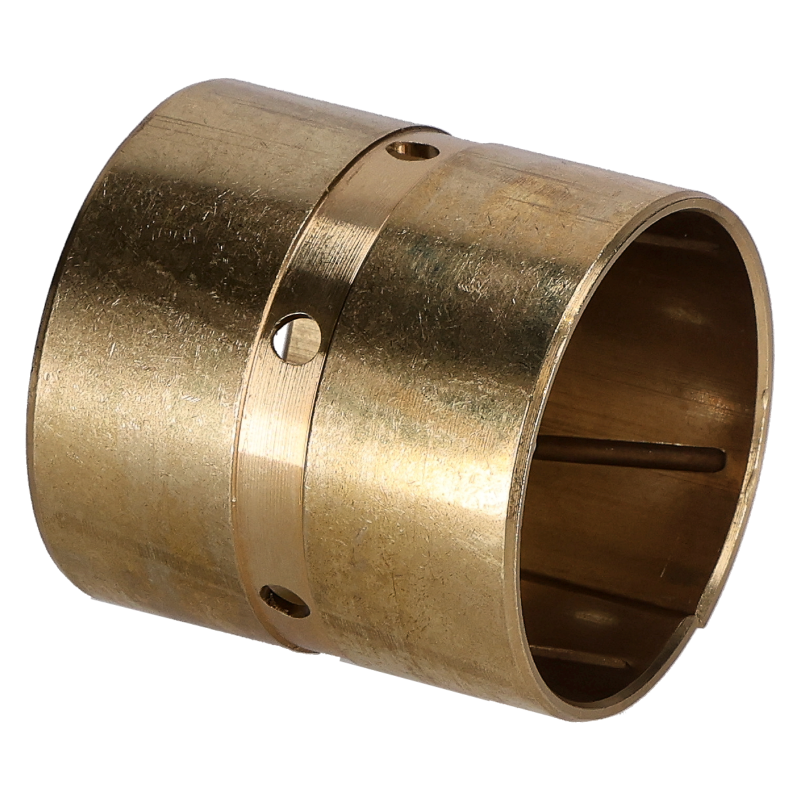

BRONZE LOADER ARM BUSH SUITABLE FOR JCB 3CX, 4CX - 808/00297

Technical Specification and Compatibility

A high-quality slide bush, made of a special bronze alloy. It is a key component in the loader arm joints, located in the linkage. Its function is to provide smooth rotational movement for the pin and to bear enormous loads, minimizing friction and protecting more expensive components like the arm and cylinders from wear.

Part number: 808/00297
Manufacturer: CORESPEX
Dimensions (mm): 65.1 (outer dia.) x 59.9 (inner dia.) x 65.5 (height)
Material: Bronze

A CORESPEX brand product – premium quality replacements that guarantee long life and reliability, even when working in heavy-duty conditions.

Application in machines

Brand (Machine Type) Model
JCB (Backhoe Loaders) 3CX, 4CX

The list above is for reference. We recommend verifying the dimensions on your machine before purchasing.

Service Recommendation: Ensure Maximum Lifespan

For maximum repair durability, always replace bushings in a set with new pins and seals. Regular greasing of the joints with high-quality HYPTRON grease containing molybdenum disulfide (MoS2) drastically extends the life of the bushings.

Part's Role in the Machine and Failure Diagnostics

Bushings are sacrificial components designed to wear out to protect much more expensive parts like the arm or cylinders. Ignoring worn bushings leads to play, which in turn damages the pin bores (causing them to become oval), ultimately requiring a very expensive re-boring repair.

Replace the bushings if you notice:

  • Excessive play (clunking) on the loader arm pins.
  • Loss of precision during loader operation, a "wobbly" bucket.
  • Loud squeaking or grinding from the joints, even after greasing.
  • A visible crack or displacement of the old bush.

Peace of Mind Guarantee: Why Choose Our Offer?

✓ Restore Precision and Rigidity: Choose CORESPEX

Play in the arm means a loss of precision and faster wear of the entire machine. As a leader in the supply of pins and bushings, we guarantee a perfect fit and the highest quality material. CORESPEX bushings, made of bronze with optimal sliding properties, will restore your machine's factory rigidity and precision, which translates into work efficiency.

Tired of a "wobbly" bucket and clunking in the arm?

Don't wait for play to damage expensive structural components. Order a complete set of CORESPEX pins and bushings today and perform a professional joint rebuild!

Expert's Guide: Key Installation Tips

  1. Check the bores: Before pressing in new bushings, thoroughly clean and inspect the bores in the arm. If they are worn oval, they need to be re-bored.
  2. Use a press: Use a hydraulic press with appropriate sleeves to install the bushings. Hammering them in can cause damage.
  3. Align grease channels: If the bush has grease holes or channels, make sure they align with the grease nipple after installation.
  4. Grease generously: After installation, pump in a large amount of fresh grease until it purges out, removing any contaminants from the assembly process.

Frequently Asked Questions (FAQ)

1. Why is this bush made of bronze and others are steel?

Bronze bushings are used in very high-load, low-speed joints. Bronze has excellent sliding properties and is more resistant to seizure in the event of a temporary lack of lubrication than a steel bush.

2. I have play on the pin, but the old bush looks okay. Do I have to replace it?

Yes. Even if the bush is not cracked, the play indicates that its internal diameter has worn. Installing a new, tight pin in an old, worn bush will not eliminate the play and will lead to rapid wear of the pin. Both components should always be replaced at the same time.

3. What happens if I keep working with worn bushings?

Prolonged operation with loose pins causes the bores in the arm or cylinder to wear out. The holes become oval, and their repair is very expensive and requires specialized machining (a mobile line boring machine). Replacing bushings in time is the cheapest way to avoid this failure.

Key Advantages

🛡️

Working Precision

Eliminates play and restores arm rigidity.

🎯

Machine Protection

Protects expensive components from wear.

📦

High Durability

Bronze resistant to abrasion and seizure.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX854470CX
808/00297
0.27 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
808/00297
MATERIAL
BRONZE
OUTER DIAMETER (MM)
65,1
INNER DIAMETER (MM)
59,9
HEIGHT (MM)
65,5
BUSH WITH COLLAR
NO

Specific References

MPN
808/00297
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Bush in the loader frame (link) suitable for JCB 3CX 4CX

Catalog number: SKX854470CX
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

50.55 zł

net price
41,10 zł
Available in large quantity Temporarily unavailable
41,10 zł
net price

50.55 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 4 points, it gives you 1.60 zł
  • Lowest price from 30 days before the discount: 50.55 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    808/00297
    MATERIAL
    BRONZE
    OUTER DIAMETER (MM)
    65,1
    INNER DIAMETER (MM)
    59,9
    HEIGHT (MM)
    65,5
    BUSH WITH COLLAR
    NO
