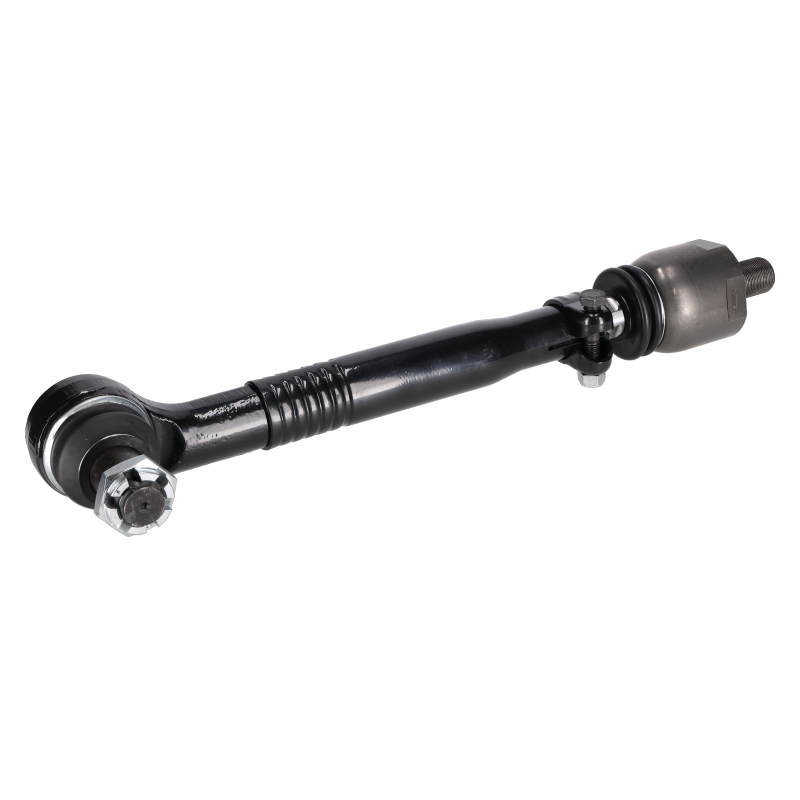

Track rod LH suitable for CAT
TORS

Track rod LH suitable for CAT

Catalog number:SKX860280T Nr OEM:265-2622 Manufacturer:TORS
Add a review

Steering Tie Rod Left 565mm suitable for CAT M318 M320 - 2652622

Technical Specification and Compatibility

Left steering tie rod with part number 2652622 from the renowned TORS offer. It is a massive control system element with a length of 565.50 mm, designed for heavy Caterpillar (CAT) wheeled excavators. The rod is distinguished by a very thick shaft (50 mm) and large mounting cones, ensuring the durability necessary for working with machines weighing 18-22 tons.

Part Number: 2652622
Component Type: Steering Rod / Drag Link
Mounting Side: Left Hand
Total Length: 565.50 mm
Cone Dimensions: 34.30 mm / 38.30 mm
Tube/Shaft Diameter: 50 mm
Thread: M30 x 1.5
Manufacturer: TORS

TORS Heavy Duty products are designed for machines working in extreme conditions. The reinforced structure and precise joint seals guarantee long and trouble-free operation.

Features of TORS 2652622 Rod

Extreme Durability: The 50 mm diameter shaft resists bending that may occur when maneuvering in deep mud or hitting an obstacle.
Large Cones: Cone dimensions (34.30/38.30 mm) are adapted to the powerful knuckles used in CAT M300 series wheeled excavators.
Specific Length: The 565.50 mm length is dedicated to the left side of the steering system in specific models, ensuring correct geometry.
M30x1.5 Thread: Fine thread with a large diameter allows for transmitting huge axial forces without the risk of breaking the connection.

Application in CAT machinery

Brand Wheeled Excavator Models
Caterpillar (CAT) M318, M320, 224B

The rod fits the LEFT side. Before purchasing, please verify the total length (565.5 mm) and cone dimensions.

Related Parts and Hardware

When replacing the left rod, it is worth checking the condition of the right rod and the main steering cylinder. New castle nuts and cotter pins may be required to secure the pins.

⚠️ Safety Warning

Wheeled excavators travel at high speeds (up to 30-35 km/h). A steering rod break while driving can lead to a catastrophic accident. Check steering system play regularly.

Part Role in the Machine and Failure Diagnostics

Rod 2652622 is responsible for maintaining the track and turning the wheels.

  • › Knocking in the system (play on ball joints).
  • › Uneven tire wear (alignment problem).
  • › "Wandering" of the machine on the road (lack of stability).
  • › Grease leakage from boots (risk of joint seizure).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Measurement: Check the length of the old rod. This model is 565.50 mm. CAT excavators have rods of various lengths (e.g., 400 mm). Incorrect selection will prevent assembly.
  2. Disassembly: Use a suitable puller to separate the old cones. Hitting the knuckle ear with a hammer can permanently damage it.
  3. Alignment: After replacing the rod, the wheel alignment must always be checked and adjusted to ensure proper handling and save tires.

Technical FAQ and Trivia

Why is this rod so thick?

The 50 mm diameter results from the huge forces acting on the steering system in excavators weighing nearly 20 tons. Smaller rods would bend when trying to turn the wheels in soft terrain.

How to measure the cone?

In this model (2652622), the cone is very large. Measure it with a caliper: at the base it should be approx. 38.30 mm, and at the top (by the thread) approx. 34.30 mm.

CAT wheeled excavator trivia

The letter "M" in the name of models like M318 stands for "Mobile", which in Caterpillar nomenclature distinguishes wheeled excavators from tracked ones (which have only a numerical designation, e.g., 320).

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX860280T
265-2622
9.50 kg

Data sheet

SUITABLE FOR
CASE
CAT
JOHN DEERE
LIEBHERR
VOLVO
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
AT321466 / 7015759 / 10216515 / 0501.205.649 / 0501205649 / 72101797 / 8U-3380 / 8U3380 / 2652622 / 265-2622 / 8220-01900 / SA8220-01900

Specific References

MPN
265-2622
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Track rod LH suitable for CAT

Catalog number: SKX860280T
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21

Responsible person

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21
gross price

1,105.77 zł

net price
899,00 zł
Last pieces Temporarily unavailable
899,00 zł
net price

1,105.77 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 90 points, it gives you 36.00 zł
  • Lowest price from 30 days before the discount: 1,105.77 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CASE
    CAT
    JOHN DEERE
    LIEBHERR
    VOLVO
    MACHINE TYPE
    EXCAVATOR
    OEM NUMBERS
    AT321466 / 7015759 / 10216515 / 0501.205.649 / 0501205649 / 72101797 / 8U-3380 / 8U3380 / 2652622 / 265-2622 / 8220-01900 / SA8220-01900
