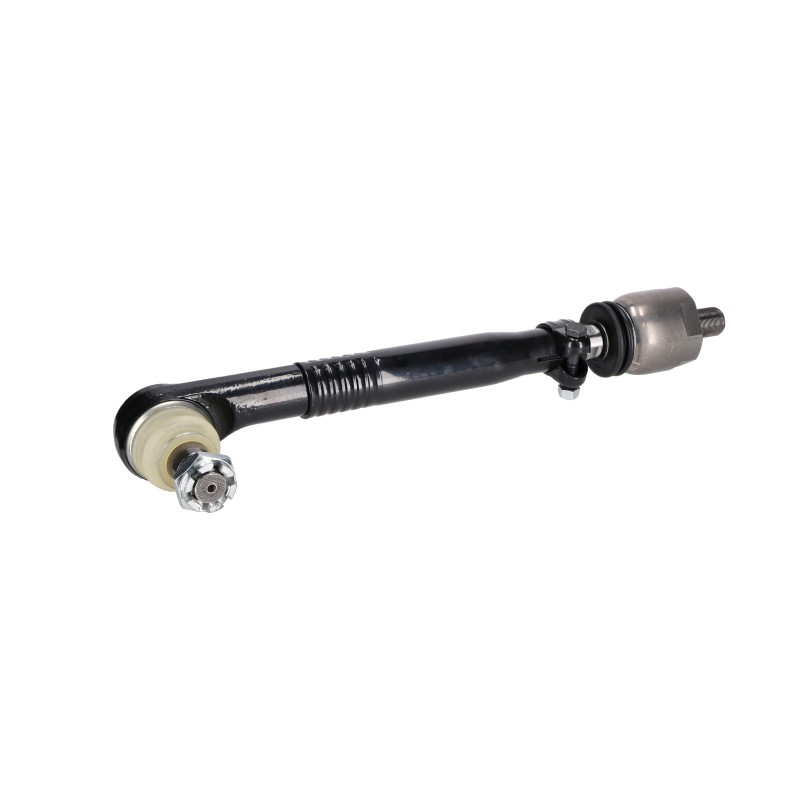

Track rod RH suitable for CAT excavators
TORS

Track rod RH suitable for CAT excavators

Catalog number:SKX860295T Nr OEM:265-2623 Manufacturer:TORS
Add a review

Steering Tie Rod Right 565mm suitable for CAT M318 - 8U3379

Technical Specification and Compatibility

Right steering tie rod with part number 8U3379 from the renowned TORS brand offer. It is a control system component with a total length of 565.50 mm, dedicated to Caterpillar (CAT) wheeled excavators and other construction machines with similar axle specifications. The rod features an exceptionally massive construction (50 mm rod diameter), making it an ideal solution for heavy earthworks.

Part Number: 8U3379
Component Type: Steering Rod
Mounting Side: Right Hand (RH)
Total Length: 565.50 mm
Cone Dimensions: 34.30 mm / 38.30 mm
Tube/Shaft Diameter: 50 mm
Thread: M30 x 1.5
Manufacturer: TORS

TORS brand products are famous for their reliability in the Heavy Duty segment. The thickened shaft and solid, sealed ball joints ensure resistance to impact and contamination, minimizing the risk of failure on the construction site.

Features of TORS 8U3379 Rod

Massive Build: The shaft diameter of 50 mm makes the rod resistant to bending even with high lateral loads on the wheels.
Large Cones: Cone dimensions (34.30/38.30 mm) are characteristic of heavy machinery, ensuring a stable connection with the knuckle and cylinder.
Precise Length: The 565.50 mm dimension is dedicated to the right side of the steering system in specific excavator models, guaranteeing correct geometry.
Complete Set: The rod has integrated joints with rubber boots, it is ready for installation without the need to buy additional ends.

Application in machinery

Brand Models / Machine Types
CAT (Caterpillar) M318, M320, 224B (Wheeled Excavators)
Other Brands VOLVO (Wheeled Excavators), CASE (Wheeled Excavators), JOHN DEERE (Wheeled Excavators), LIEBHERR (Wheeled Excavators) - verify by dimensions

The rod fits the RIGHT side. Before purchasing, please verify the total length (565.5 mm) and cone dimensions.

Related Parts and Hardware

When replacing the right rod, we recommend checking the condition of the left rod (often a different number, e.g., 2652622) and the steering cylinder. New castle nuts and cotter pins may be needed for assembly.

⚠️ Safety Warning

A steering rod break in a 20-ton wheeled excavator while driving on a public road threatens loss of vehicle control and a tragic accident. Regularly check the condition of the rods for play and cracks.

Part Role in the Machine and Failure Diagnostics

Rod 8U3379 is responsible for transferring turning motion to the right wheel.

  • › Loud knocking when turning (ball stud play).
  • › Unstable driving (wheel wandering).
  • › Uneven tire wear (bad alignment).
  • › Grease leakage from damaged rubber boot.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Length Verification: Check the length of the old rod. This model is 565.50 mm. CAT excavators have different lengths (e.g., 400 mm). Wrong selection will prevent installation.
  2. Cone Mounting: The sockets in the knuckle and cylinder must be perfectly clean and dry. Do not use grease on the cone surface to avoid socket cracking.
  3. Alignment: After every steering component replacement, wheel alignment check and adjustment is necessary.

Technical FAQ and Trivia

Why is this rod so thick?

The 50 mm diameter results from the enormous forces acting on the steering system in excavators weighing close to 20 tons. Smaller rods would bend when trying to turn wheels in soft terrain.

How to measure the cone?

In model 8U3379, the cones are very large. Measure the diameter at the base (widest point) - should be approx. 38.30 mm, and at the thread - approx. 34.30 mm.

Wheeled excavator trivia

Wheeled excavators (like the CAT M318) do not turn using tracks like their tracked counterparts. They have a traditional steering system with a steering axle, which allows them to move quickly on paved roads without damaging the surface.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX860295T
265-2623
9.50 kg

Data sheet

SUITABLE FOR
CASE
CAT
JOHN DEERE
LIEBHERR
VOLVO
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
AT321468 / 10216559 / 7015758 / 0501.007.754 / 0501007754 / 72101798 / 8U-3379 / 8U3379 / 2652623 / 265-2623 / 822001910 / SA8220-01910

Specific References

MPN
265-2623
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Track rod RH suitable for CAT excavators

Catalog number: SKX860295T
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21

Responsible person

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21
gross price

1,105.77 zł

net price
899,00 zł
Last pieces Temporarily unavailable
899,00 zł
net price

1,105.77 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 90 points, it gives you 36.00 zł
  • Lowest price from 30 days before the discount: 1,105.77 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CASE
    CAT
    JOHN DEERE
    LIEBHERR
    VOLVO
    MACHINE TYPE
    EXCAVATOR
    OEM NUMBERS
    AT321468 / 10216559 / 7015758 / 0501.007.754 / 0501007754 / 72101798 / 8U-3379 / 8U3379 / 2652623 / 265-2623 / 822001910 / SA8220-01910
