• Tooth Bucket suitable for CAT J300
  • Bucket Tooth 1U3302 (CAT J300 System) for Caterpillar, JCB

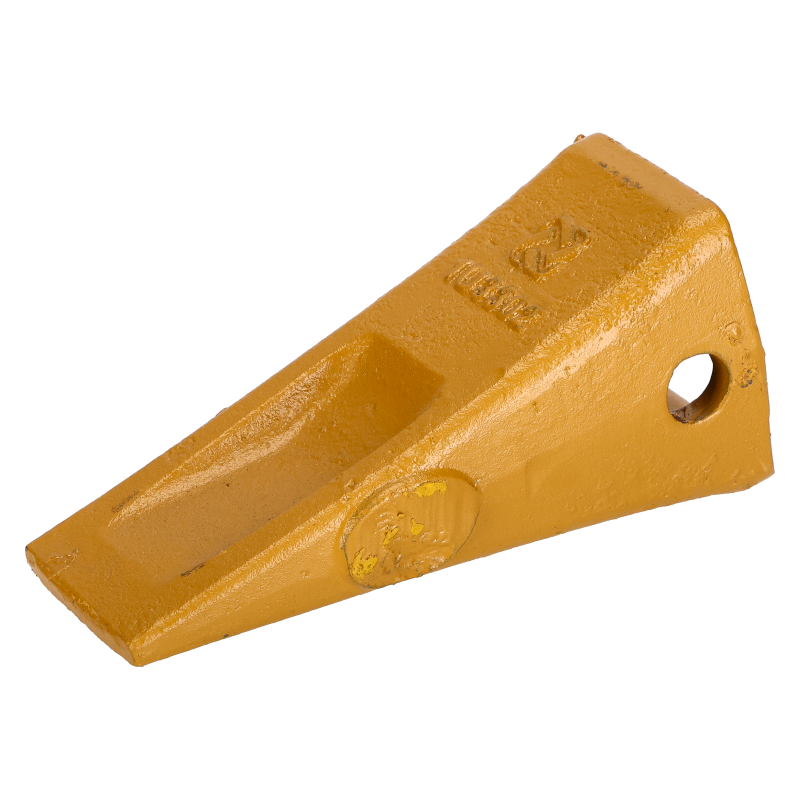

Tooth Bucket suitable for CAT J300
HIMACORE

Tooth Bucket suitable for CAT J300

Catalog number:SKX975097HM1 Nr OEM:1U3302 Manufacturer:HIMACORE
Add a review

BUCKET TOOTH (CAT J300 SYSTEM) SUITABLE FOR CATERPILLAR, JCB - 1U3302

Technical Specification and Compatibility

An essential bucket working component – a durable aftermarket tooth for the extremely popular CATERPILLAR J300 system. This is a standard dirt tooth profile, designed for general earthmoving, digging, and loading. The tooth is mounted on a weld-on adapter (e.g., 3G6304 / 9W1304) using a side pin and retainer. High-grade cast steel ensures high resistance to abrasion and impact. It is widely used on machines from various manufacturers (CAT, JCB, Komatsu, Case, etc.) that utilize the J300 system.

Part number: 1U3302
System: CAT J300
Profile: Standard (Dirt Tooth)
Mounting: On Adapter

GX-AFTER is the smart choice for your machine. We provide high-class replacement parts that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Required for Installation

  • Side Pin: Part no. 9J2308 (sold separately)
  • Sleeved Retainer: Part no. 8E6259 (sold separately)
  • J300 Adapter: e.g., Part no. 3G6304 or 9W1304

Application in machines

Brand Type / Series / Model
Universal Any machine (Caterpillar, JCB, Bobcat, Takeuchi, John Deere, Case, Komatsu, Kubota, ESCO, Hensley, H&L) equipped with a J300 adapter system.

The list above is for reference. It is crucial to verify the tooth system (J300) on your bucket's adapter.

⚠️ Installation Warning

When installing or removing teeth (knocking out pins), always wear safety glasses and use a proper hammer and punch. Metal fragments or retainers can fly off and cause serious eye injury.

Part's Role in the Machine and Failure Diagnostics

The tooth is the main working part of the bucket that comes into direct contact with the ground. A worn tooth leads to decreased digging performance, increased resistance, and higher fuel consumption. A worn tooth also puts extra stress on the adapter, leading to its failure.

  • Visible wear and rounding of the working tip.
  • Cracks or complete breakage of the tooth.
  • Losing teeth (due to damaged or worn 9J2308/8E6259 retainers).
  • Play on the adapter (worn tooth socket or worn adapter nose).

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Clean the adapter: Before installation, thoroughly clean the adapter nose of dirt, rust, and old retainer fragments. Contamination will cause a poor fit and tooth loss.
  2. Always use new hardware: Never reuse old pins (9J2308) or retainers (8E6259). They are single-use items that lose their locking properties.
  3. Check seating: After placing the tooth, ensure it is fully seated on the adapter nose before driving in the pin.
  4. Retainer installation: In the CAT J-series system, the pin and retainer are installed from the side. Ensure the retainer is properly seated in its groove.

Frequently Asked Questions (FAQ)

1. What does "J300 System" mean?

J300 is the size designation for a popular CATERPILLAR tooth system. It is one of the most common systems, used by many manufacturers (CAT, JCB, Komatsu) on backhoes and excavators in the approx. 15-25 ton operating weight class.

2. Will this tooth fit a J400 or J250 adapter?

No. The CAT J-Series tooth systems are not interchangeable between sizes. A J300 tooth will only fit a J300 adapter and requires J300 hardware (9J2308/8E6259).

3. Why is it important to replace worn teeth?

Working with worn, "rounded" teeth drastically increases digging resistance. This leads to higher fuel consumption, slower work, and places enormous stress on the adapters, cutting edge, and the arm's pins and bushings, accelerating their wear.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX975097HM1
1U3302
4.20 kg
