Sprocket drive suitable for JCB JS210-260
NEXGEN

Sprocket drive suitable for JCB JS210-260

Catalog number:SKX759149ALW Nr OEM:JRA0113 Manufacturer:NEXGEN
Add a review

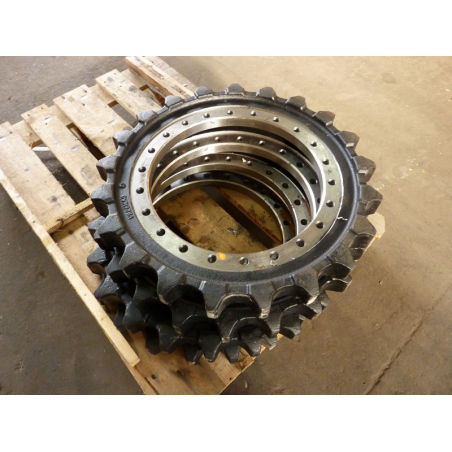

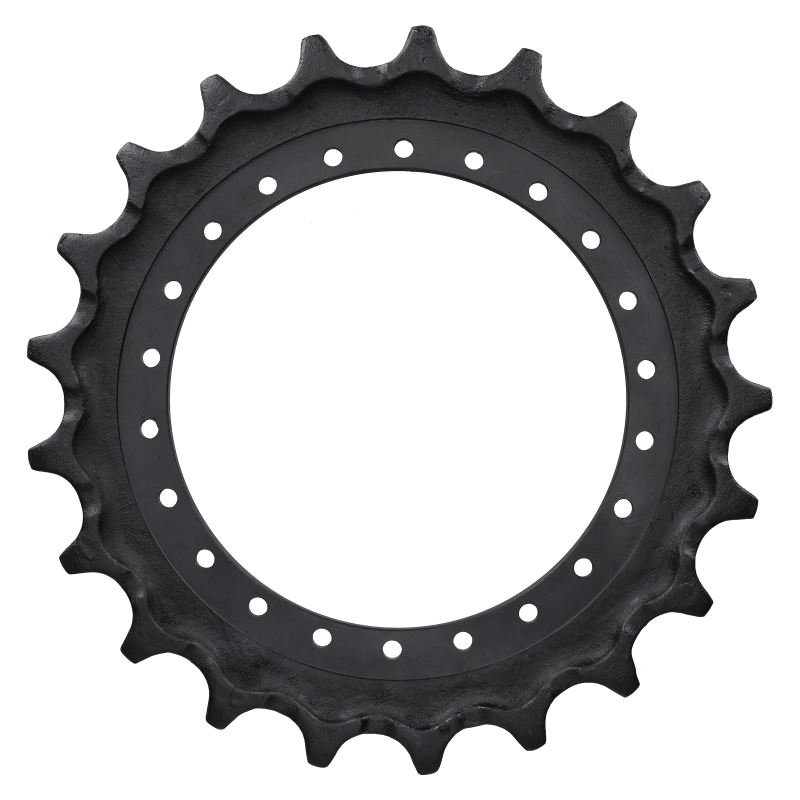

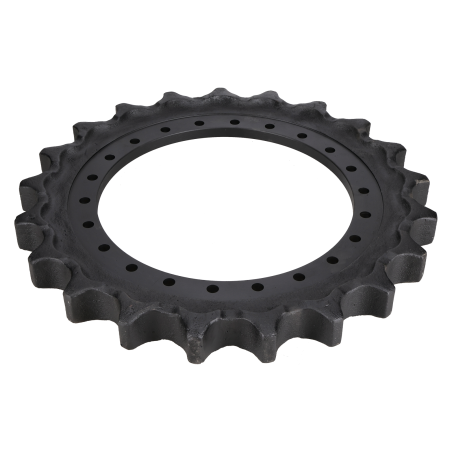

NEXGEN SPROCKET (21T / 22H) SUITABLE FOR JCB JS210-JS260 - JRA0113

Technical Specification and Compatibility

A critical drivetrain component – a brand new NEXGEN sprocket. Designed for JCB JS series tracked excavators, including models JS210, JS220, JS240, and JS260. The sprocket is precision-made from high-grade, induction-hardened cast steel to ensure maximum service life and wear resistance. It is responsible for transferring power from the final drive motor to the track chain.

Part number: JRA0113
Teeth: 21
Bolt Holes: 22
Bolt Hole Diameter: 18 mm
Bolt Circle Diameter (PCD): 440 mm
Pitch: 190 mm

In the construction industry, machine reliability is the key to success. That's why we offer high-quality replacement parts for construction machinery that meet the highest standards of durability and performance. Our products are the ideal solution for companies and specialists looking for reliable components at attractive prices.

Essential for Installation

  • › Mounting Bolts (22 pcs): Always use new, high-tensile bolts to mount the sprocket to the final drive.
  • › Torque Wrench: Required to tighten the bolts to the correct manufacturer specification.

Application in machines

Brand Type / Series / Model
JCB Tracked Excavators: JS210, JS220, JS235, JS240, JS260

The list above is for reference. We recommend verifying the tooth count (21T) and bolt hole count (22H) before purchasing.

⚠️ Safety Warning

Before working on the undercarriage, ensure the machine is on stable, level ground and is properly secured against rolling. Always follow the service manual procedures for releasing and re-tensioning the tracks.

Part's Role in the Machine and Failure Diagnostics

The sprocket is one of the key wear components of a track undercarriage. It transfers power from the final drive to the chain, setting the machine in motion. A worn sprocket leads to accelerated wear of the entire undercarriage.

  • › Sharpened tooth tips ("shark tooth" profile).
  • › Track "jumping" or "skipping" when turning or under load.
  • › Damage to the track chain bushings (due to poor meshing with the worn sprocket).
  • › Loose bolts fastening the sprocket to the final drive (risk of shearing).

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Replace in pairs: Sprockets should always be replaced in pairs (left and right) to ensure even wear and proper tracking of both chains.
  2. Replace with chains: Installing new sprockets on old, stretched track chains is not recommended. It will cause accelerated wear of both the new sprockets and the old chains.
  3. Clean the mounting surface: Thoroughly clean the mounting surface on the final drive of all rust and dirt before bolting on the new sprocket.
  4. Torque Specifications: Use a torque wrench and tighten the mounting bolts in a star pattern to the manufacturer's specified torque.

Frequently Asked Questions (FAQ)

1. What does "Pitch 190 mm" mean?

Pitch is a key dimension of a track chain, measuring the distance from the center of one pin to the center of the next link pin. The sprocket must have an identical pitch to the chain to mesh correctly. This model has a 190 mm pitch.

2. Can I replace just one sprocket?

This is highly discouraged. The new sprocket will have a different working diameter than the old, worn one on the other side. This can cause the machine to "pull" to one side when tracking straight and will cause uneven wear on both tracks and final drives. Always replace sprockets in pairs.

3. Will this sprocket fit a 3CX backhoe?

No. This product is an undercarriage component for a tracked machine. It is designed for large JS series excavators (JS210-JS260). The 3CX and 4CX are wheeled machines and do not use sprockets.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX759149ALW
JRA0113
40.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
JRA0113 / 331/42641

Specific References

MPN
JRA0113
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Sprocket drive suitable for JCB JS210-260

Catalog number: SKX759149ALW
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

498.15 zł

net price
405,00 zł
Last pieces Temporarily unavailable
405,00 zł
net price

498.15 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 41 points, it gives you 16.40 zł
  • Lowest price from 30 days before the discount: 498.15 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    EXCAVATOR
    OEM NUMBERS
    JRA0113 / 331/42641
