Proximity sensor suitable for JCB 525, 537 telehandlers
GX-AFTER

Proximity sensor suitable for JCB 525, 537 telehandlers

Catalog number:701/60076A Nr OEM:701/60076 Manufacturer:GX-AFTER
Add a review

GX-AFTER Wheel Steering Proximity Sensor suitable for JCB - 701/60076

Technical Specification and Compatibility

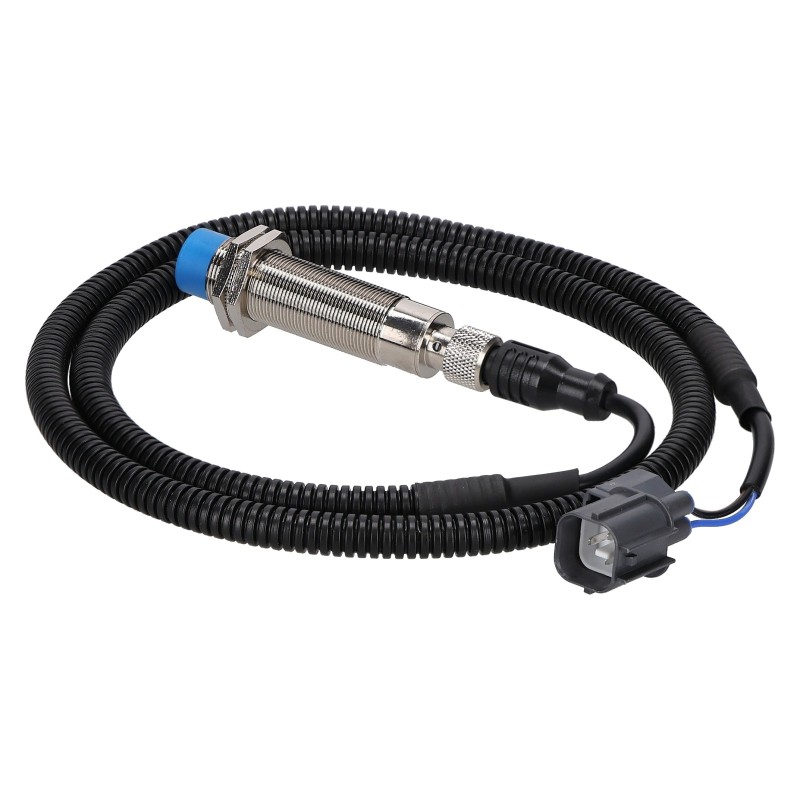

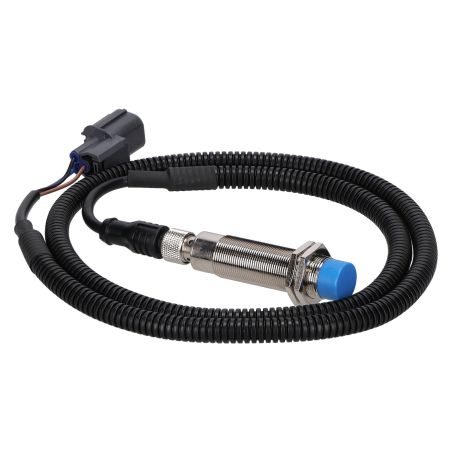

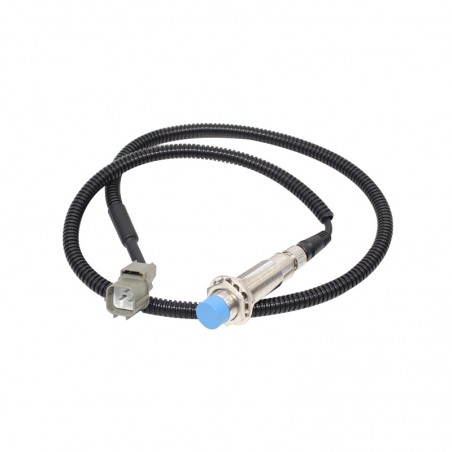

A precision proximity (inductive) sensor 701/60076, a key component of the steering system in JCB telehandlers. It is responsible for detecting the position and angle of the wheels. This information is essential for wheel positioning systems and selecting steering modes (e.g., 2-wheel, 4-wheel, crab steer). The sensor has a 750 mm long cable and a distinctive square 3-pin plug, ensuring full compatibility.

Part Number: 701/60076
Alternative Numbers: 701/34400
Type: Wheel Steering Proximity Sensor (Inductive)
Cable Length: 750 mm
Plug: Square, 3-pin

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Features of the 701/60076 Sensor

Precise Reading: Guarantees accurate detection of wheel position, essential for system calibration.
Perfect Fit: The 750 mm length and 3-pin square plug are 100% compatible with the original.
High Resistance: A robust housing and sealed plug provide resistance to moisture, dust, and vibrations.
Crucial for Steer Modes: Essential for the correct operation of steering modes (e.g., 4WS, crab steer).

Application in machinery

Brand Type / Series / Model
JCB Telehandlers: 525, 535, 537, 540

The list above is for reference only. If you are unsure about the part's compatibility, please contact our experts.

Related Parts and Hardware

When replacing the sensor, we recommend checking the condition of the electrical harness it connects to, as well as other positioning sensors on the steering axles.

⚠️ Safety Warning

Failure of the wheel steering sensor leads to a loss of information about wheel position. This can result in the inability to engage or disengage steering modes (like crab steer) or incorrect wheel positioning, which risks loss of machine stability or collision when maneuvering in tight spaces.

Part Role in the Machine and Failure Diagnostics

The 701/60076 proximity sensor is an inductive sensor mounted on the steering axle. Its job is to non-contact detect a metal element (target) on the knuckle or bridge. This allows the machine's ECU to precisely determine when the wheels are in the "straight-ahead" position or at a full lock. This is essential for wheel synchronization and activating advanced steering modes.

  • › Dashboard errors related to the steering system or wheel calibration.
  • › Inability to switch steering modes (e.g., 2WS, 4WS, crab steer).
  • › The machine "loses" wheel position, wheels do not align "straight-ahead" correctly.
  • › No response from the steer mode switch, or the mode disengages automatically.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Check the Plug: Before installation, absolutely ensure the 3-pin square plug is identical to the old one.
  2. Set the Distance: Proximity sensors require a precise air gap (distance) from the metal target. Too large a gap will prevent a reading; physical contact will destroy the sensor.
  3. Clean Mounting: Ensure the sensor face and the metal target surface are free of grease, mud, and metal shavings that could interfere with the signal.
  4. Cable Routing: Route the 750 mm cable so it is not pinched or abraded during a full steering lock or suspension travel.
  5. Reset Errors: After replacing the sensor, you may need to clear fault codes in the machine's ECU or perform a steering calibration.

Frequently Asked Questions (FAQ)

Is this sensor inductive?

Yes, this is an inductive proximity sensor. It works by detecting the proximity of metal (e.g., a target on the knuckle) without physical contact.

What does "square 3-pin plug" mean?

This is a key identifying feature of the electrical connector. Different plug types (e.g., round, flat) are used in JCB machines. Before purchasing, you must visually confirm that the plug in your machine is square and has 3 pins.

What is the difference between 701/60076 and 701/34400?

These are interchangeable (alternative) numbers for the same part. 701/34400 is likely an older part number that has been superseded by 701/60076. Both references fit the same machines.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

701/60076A
701/60076
0.14 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
TELESCOPIC HANDLER
OEM NUMBERS
701/60076 / 701/34400

Specific References

MPN
701/60076
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Proximity sensor suitable for JCB 525, 537 telehandlers

Catalog number: 701/60076A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

135.30 zł

net price
110,00 zł
Available in large quantity Temporarily unavailable
110,00 zł
net price

135.30 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 11 points, it gives you 4.40 zł
  • Lowest price from 30 days before the discount: 135.30 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    TELESCOPIC HANDLER
    OEM NUMBERS
    701/60076 / 701/34400
