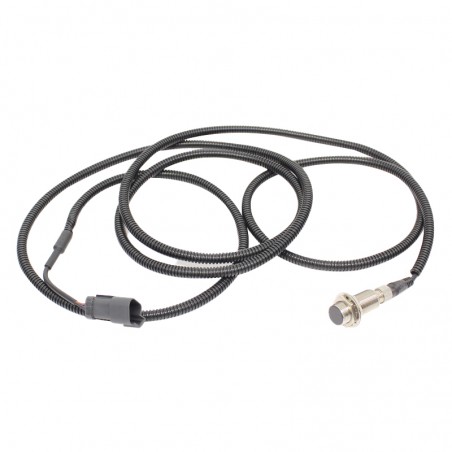

Switch proximity shovel reset suitable for JCB 3CX 4CX
GX-AFTER

Switch proximity shovel reset suitable for JCB 3CX 4CX

Catalog number:701/80345A Nr OEM:701/80345 Manufacturer:GX-AFTER
Add a review

AUTOMATIC BUCKET LEVELING SENSOR SUITABLE FOR JCB 3CX, 4CX - 701/80345

Technical Specification and Compatibility

An inductive proximity sensor, a key component of the automatic loader bucket leveling system (the "Shovel Reset" feature). Its function is to precisely detect a metal tab on the loader arm, which sends a signal to the hydraulic system to automatically set the bucket to a pre-programmed working position. It restores one of the most important features for increasing work efficiency.

Part number: 701/80345
Alternative part numbers: 701/80243
Sensor type: Inductive Proximity
Voltage: 12V

Aftermarket quality product – an intelligent choice combining excellent quality with an attractive price.

Application in machines

Brand (Machine Type) Model
JCB (Backhoe Loaders) 3CX, 4CX (models equipped with the automatic bucket leveling feature)

This sensor is used in machines with the automatic leveling function. Before purchasing, we recommend visually comparing the plug and sensor appearance with your old part.

Service Recommendation: Ensure Maximum Lifespan

Sensors are sensitive to contamination and electrical installation issues. Before installing the new sensor, thoroughly clean its socket and plug. We recommend using a dedicated HYPTRON electrical contact cleaner spray to ensure a perfect connection and avoid reading errors.

Part's Role in the Machine and Failure Diagnostics

The automatic leveling function is one of the most important productivity-enhancing systems on a backhoe loader. It allows the operator to lower the arms and automatically set the bucket to an ideal, level working position with a single lever movement. This sensor is the "eyes" of that system – its failure disables the automation and forces manual operation.

Replace the sensor if your machine is losing efficiency and you're losing patience. Symptoms include:

  • The automatic leveling function does not work at all.
  • The leveling works intermittently, sometimes it works, sometimes it doesn't.
  • The bucket stops in the wrong position – too high or too low.
  • Visible mechanical damage to the sensor or its cable.

Peace of Mind Guarantee: Why Choose Our Offer?

✓ Work Faster and More Efficiently: The GX-AFTER Solution

The auto-level system saves seconds on every loading cycle, which adds up to a huge advantage over the course of a day. By choosing a GX-AFTER replacement, you restore this key function at a low cost. It is an intelligent choice that directly translates to greater productivity and less operator fatigue.

Stop wasting time manually setting the bucket!

Our sensor is available off-the-shelf. Order now, restore full automation, and speed up every work cycle of your machine.

Expert's Guide: Key Installation Tips

  1. Set the correct air gap: It is crucial for proper operation to set the correct distance (gap) between the sensor face and the metal tab on the arm – this is usually 1-3 mm.
  2. Check the actuator tab: Make sure the metal plate that the sensor "sees" is clean, undamaged, and not bent.
  3. Clean the electrical connector: Before plugging in the new sensor, thoroughly clean the plug in the machine's wiring harness to ensure a reliable contact.
  4. Secure the cable: After installation, ensure the sensor cable is properly routed and secured to prevent it from chafing or being torn during operation.

Frequently Asked Questions (FAQ)

1. Is system calibration required after replacing the sensor?

Usually, no electronic calibration is required. However, it is crucial to precisely set the physical distance (air gap) between the sensor and the metal tab.

2. My auto-level function isn't working. Is this sensor definitely the cause?

Failure of this sensor is the most common cause. However, the problem could also lie in a damaged wiring harness, the switch in the cabin, or the hydraulic solenoid valve.

Key Advantages

🛡️

Increased Efficiency

Automates and speeds up loading cycles.

🎯

Precise Operation

Restores the machine's factory functionality.

📦

Simple Replacement

A quick solution for a common fault.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

701/80345A
701/80345
0.28 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
701/80345 / 701/80243

Specific References

MPN
701/80345
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Switch proximity shovel reset suitable for JCB 3CX 4CX

Catalog number: 701/80345A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

162.98 zł

net price
132,50 zł
Available in large quantity Temporarily unavailable
132,50 zł
net price

162.98 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 13 points, it gives you 5.20 zł
  • Lowest price from 30 days before the discount: 162.98 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    701/80345 / 701/80243
