Propshaft rear drive suitable for JCB 3CX 4CX- Powershift
SPICER

Propshaft rear drive suitable for JCB 3CX 4CX- Powershift

Catalog number:914/56500C Nr OEM:914/56500 Manufacturer:SPICER
Add a review

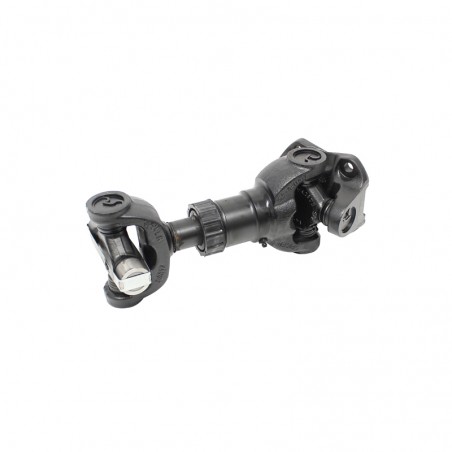

Rear Drive Shaft (L=265mm) suitable for JCB Powershift - 914/56500

Technical Specification and Compatibility

Original 914/56500 rear drive shaft from the renowned SPICER (DANA) brand. This is the short propshaft that transmits drive from the gearbox to the rear axle. It is designed for JCB 3CX and 4CX backhoe loaders equipped with a Powershift transmission. The shaft has a length of 265 mm and is factory-balanced, ready for installation. It uses 126.2 x 34.9 mm cross joints (U-joints).

Part Number: 914/56500
Type: Drive Shaft / Propshaft (Rear)
Transmission: Powershift
Length (L): 265 mm
Cross Joint Type: 126.2 x 34.9 mm

SPICER (DANA) is a global leader in the manufacturing of drive axles, driveshafts, and transmission components. Choosing a SPICER product guarantees the highest original equipment (OEM) quality, precise fit, and maximum durability you expect from a factory-fitted part.

Features of the SPICER Drive Shaft

OEM Quality: A SPICER product, an original equipment supplier, guaranteeing a perfect fit and service life.
Factory Balanced: The shaft is dynamically balanced to eliminate vibrations, protecting transmission and axle bearings.
High Durability: Resistant to twisting and the high torque transferred by the Powershift transmission.
Complete Component: Ready to install, supplied complete with factory-fitted universal joints (126.2 x 34.9 mm).

Application in machinery

Brand Type / Series / Model
JCB Backhoe Loaders: 3CX, 4CX (Powershift transmission models only)

The list above is for reference. It is crucial to verify the transmission type (Powershift) and shaft length (265 mm).

Related Parts and Hardware

When replacing the drive shaft, we recommend inspecting the condition of the flanges (yokes) on the transmission and the axle. You should also check the universal joints (126.2x34.9mm), although this shaft is typically supplied complete.

⚠️ Safety Warning

Drive shaft failure (e.g., cracking, shearing, or losing a U-joint) leads to an immediate loss of drive to the rear axle. This can cause a loss of machine control, especially when driving on the road or working on a slope. A failed, rotating shaft can also destroy the transmission housing or axle.

Part Role in the Machine and Failure Diagnostics

The 914/56500 rear drive shaft is a power transmission component that connects the output of the Powershift transmission to the input (pinion) of the rear drive axle. It must transfer the full torque while compensating for changes in angle and distance between the gearbox and the axle (via universal joints and a slip joint).

  • › Loud clunking or "ringing" when starting to move or changing direction (worn U-joints).
  • › Strong machine vibration when driving (shaft is out of balance, e.g., after an impact or losing a balance weight).
  • › Visible cracks or twisting of the shaft tube.
  • › Rust-colored "dust" around the U-joint bearings (sign of end-of-life).
  • › No drive to the rear axle.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Transmission: Ensure your machine has a Powershift gearbox. Synchroshuttle machines use a different shaft.
  2. Verify Dimensions: Check the shaft length (265 mm) and U-joint size (126.2 x 34.9 mm).
  3. Lubricate: Grease the slip yoke splines before installation.
  4. Correct Torque: Tighten the flange mounting bolts to the correct torque specification.
  5. Check Mounts: Inspect the transmission and engine mounts. Worn mounts cause misalignment and will quickly destroy the new shaft.

Frequently Asked Questions (FAQ)

I have a 3CX with a Synchroshuttle. Will this shaft fit?

No. This shaft (914/56500) is exclusively for Powershift transmissions. Synchroshuttle machines use a shaft with a different length and different mounts.

How is the shaft length (265 mm) measured?

Drive shaft length is typically measured when compressed (shortest), from the center of one U-joint to the center of the other, or flange-face to flange-face. In this case, L=265mm is the overall length.

How is this different from the front drive shaft?

The front drive shaft (connecting transmission to the front axle) is much longer and has a different design to compensate for the steering axle's movement. This shaft (914/56500) is short (265 mm) and connects to the rigid rear axle.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SPICER
914/56500C
914/56500
9.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
914/56500

Specific References

MPN
914/56500
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Propshaft rear drive suitable for JCB 3CX 4CX- Powershift

Catalog number: 914/56500C
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

Responsible person

gross price

1,536.27 zł

net price
1249,00 zł
Last pieces Temporarily unavailable
1249,00 zł
net price

1,536.27 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 125 points, it gives you 50.00 zł
  • Place an order within 11h 40m 21s And we will send your order today

    Lowest price from 30 days before the discount: 1,536.27 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    914/56500
