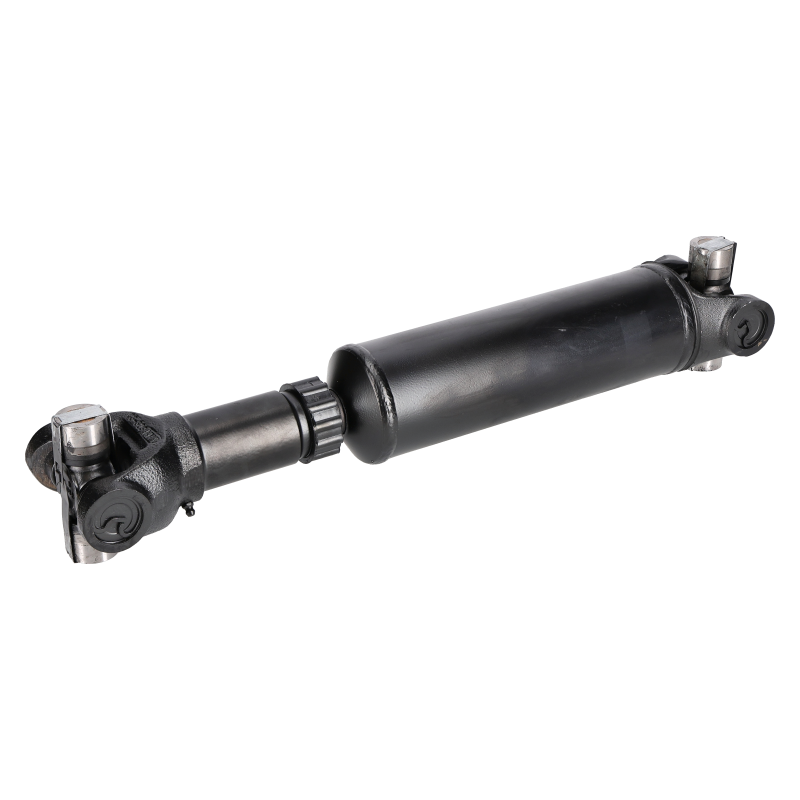

Propshaft suitable for JCB 3CX 4CX
SPICER

Propshaft suitable for JCB 3CX 4CX

Catalog number:SKX652623C Nr OEM:914/56400 Manufacturer:SPICER
Add a review

Front Axle Driveshaft suitable for JCB - 914/56400

Technical Specification and Compatibility

An essential component of the drivetrain, this original SPICER driveshaft 914/56400 is designed for the front axle of JCB 3CX and 4CX backhoe loaders. This specific model is dedicated to machines equipped with a manual transmission. The use of automatic welding technology guarantees a longer service life and precise balancing, which has been confirmed on an electronic measuring device. The shaft is made of high-grade material, making it lightweight yet durable.

Part Number: 914/56400
Alternative Numbers: 914/54100 / 914/42200
Type: Driveshaft (for Front Axle)
Transmission Compatibility: Manual Transmission
U-Joint Diameter: 35 mm
U-Joint Width: 115 mm
U-Joint Height: 110 mm

SPICER is a global leader in the production of drivetrain components, supplying parts for the first assembly to leading machine manufacturers. By choosing SPICER, you are choosing quality, durability, and reliability identical to the original.

Features of the SPICER Driveshaft

First Assembly Quality: A SPICER product guarantees parameters, balancing, and lifespan identical to the factory-installed shaft.
Precision Balancing: Each shaft is electronically checked for vibrations, eliminating tremors and protecting components.
Automatic Welding: The use of automatic welding technology ensures a longer service life and the highest manufacturing precision.
Free-Moving U-Joints: The installed U-joints (35x115/110 mm) work freely, protecting them from overload and premature wear.
Light and Durable Design: Made of high-grade material that prevents excessive loads on the drivetrain.

Application in machinery

Brand Type / Series / Model
JCB Backhoe Loaders: 3CX, 4CX (with Manual Transmission)

The list above is for reference only. If you are unsure about the part's compatibility, please contact our experts.

Related Parts and Hardware

When replacing the driveshaft, we recommend inspecting the condition of the flanges on the axle and gearbox, as well as replacing the mounting bolts.

⚠️ Safety Warning

Driving with a damaged, unbalanced, or bent driveshaft is extremely dangerous. It can lead to severe vibrations, destroying bearings and seals in the transmission and axle. In extreme cases, a shaft failure during operation can lead to a loss of 4x4 drive or destroy the undercarriage.

Part Role in the Machine and Failure Diagnostics

The front driveshaft 914/56400 connects the transmission (or transfer case) to the front drive axle. Its job is to transfer torque to the front wheels, enabling 4x4 operation. The U-joints (Cardan joints) compensate for angular differences and vertical movements of the axle relative to the frame.

  • › Severe vibrations from the machine while driving, increasing with speed.
  • › A characteristic "clunk" or metallic knock when starting (play in the U-joints).
  • › A loud whine or roar from the shaft area (damaged support bearing, if applicable).
  • › Visible mechanical damage, such as a dent or bend in the shaft tube.
  • › Grease leaks from the U-joint area (damaged seals).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Dimensions: Before installation, compare the shaft length and U-joint dimensions (35mm x 115mm/110mm) with the old component.
  2. Mark Position: If the shaft is splined, mark the relative position of the spline before disassembly to reassemble it in the same orientation (critical for balancing).
  3. Clean Flanges: Thoroughly clean the flange surfaces on the axle and transmission of any rust and debris.
  4. Torque Bolts: Always use new bolts (if recommended) and tighten them with a torque wrench in a cross pattern.
  5. Grease U-Joints: If the U-joints have grease fittings (zerks), add grease after installation.

Frequently Asked Questions (FAQ)

Why does a driveshaft need to be balanced?

Even a tiny imbalance on a high-speed rotating shaft generates huge centrifugal forces. This causes vibrations that destroy bearings and seals in the transmission and axle. Electronic balancing (as on SPICER shafts) eliminates this problem.

Does this shaft fit a Powershift transmission?

No. This model (914/56400) is specifically designed for backhoe loaders with a manual transmission. Versions with a Powershift transmission usually have different shafts with different lengths or mounting types. This must be verified before purchase.

What are the U-joint dimensions in this shaft?

This shaft is equipped with U-joints measuring: cap diameter 35 mm and width/height 115 mm / 110 mm. This is a key parameter for identification.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SPICER
SKX652623C
914/56400
9.38 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
914/56400 / 914/54100 / 914/42200

Specific References

MPN
914/56400
