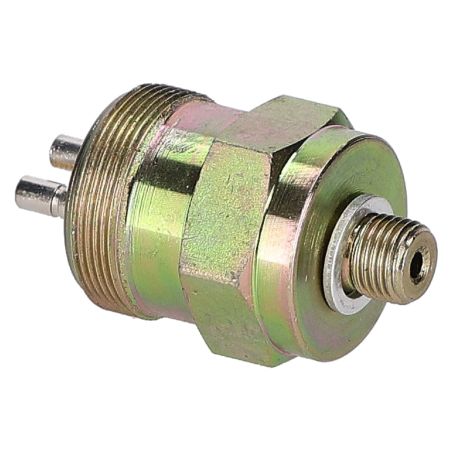

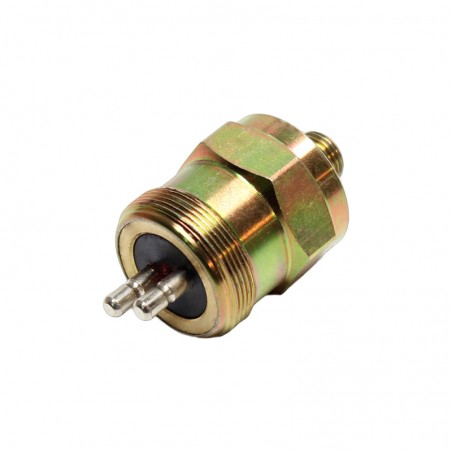

Oil pressure sensor suitable for JCB JS130-200 excavators
GX-AFTER

Oil pressure sensor suitable for JCB JS130-200 excavators

Catalog number:SKX098692A Nr OEM:701/80335 Manufacturer:GX-AFTER
Add a review

GX-AFTER TRANSMISSION OIL PRESSURE SENSOR FOR JCB JS EXCAVATORS - 701/80335

Technical Specification and Compatibility

A key component of the transmission system – this is a high-quality transmission oil pressure sensor (switch) by GX-AFTER. It is designed for JCB JS series wheeled excavators (e.g., JS130W, JS160W, JS200). Its function is to continuously monitor the oil pressure in the transmission (gearbox) system. It sends critical information to the operator or control module, ensuring accurate readings, aiding diagnostics, and protecting the gearbox from damage due to low oil pressure.

Part number: 701/80335
Manufacturer: GX-AFTER
Application: Gearbox (Transmission System)
Type: Pressure Switch/Sensor

GX-AFTER is the smart choice for your machine. We provide high-class replacement parts that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Essential for Installation

  • › New O-ring / Seal: Ensuring a leak-free seal is critical (usually sold separately).
  • › Torque Wrench: To tighten the sensor to the correct, low torque specification.

Application in machines

Brand Type / Series / Model
JCB Wheeled Excavators (JS): JS130W, JS145W, JS150W, JS160W, JS175W, JS200W

The list above is for reference. The 701/80335 sensor is used on many different JCB machines. Always verify the part number from your old unit.

⚠️ Service Warning

Before replacing the sensor, ensure the machine is switched off and all hydraulic/transmission pressure is released. Transmission oil may be hot – use caution to avoid burns.

Part's Role in the Machine and Failure Diagnostics

The transmission oil pressure sensor is a critical monitoring component. It ensures the correct operating pressure for clutch packs and gear lubrication. Its failure can lead to severe transmission damage.

  • › Transmission oil pressure light on the dashboard.
  • › Inability to move the machine (no forward or reverse drive).
  • › Delayed or harsh gear shifting.
  • › Visible oil leak from the sensor body or connector.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Clean Connector: Before installation, ensure the sensor's port, threads, and the electrical plug are perfectly clean and dry.
  2. Do Not Overtighten: Use a torque wrench to tighten to specification. Overtightening can damage the threads or the sensor body.
  3. Replace the Seal: Always use a new O-ring or gasket during installation to prevent leaks.
  4. Check Oil Level: A sensor fault may be triggered by an actual low oil level in the transmission. Always check the level before replacing the sensor.

Frequently Asked Questions (FAQ)

1. Is this the same as the engine oil pressure sensor?

No. This sensor (701/80335) is for the transmission (gearbox) system. The engine oil pressure sensor (e.g., 701/80327) is a completely different part with different operating parameters and often a different thread.

2. My machine has no drive. Will replacing this sensor fix it?

It depends. If the machine won't drive and the transmission pressure light is on, a faulty sensor giving a false reading could be the cause. However, it could also be a genuine lack of pressure (e.g., low oil level or a failed transmission pump). Diagnosis is required first.

3. Will this fit a JCB 3CX backhoe?

No, this sensor is specified for JS Wheeled and Tracked excavators. The 3CX/4CX backhoe loaders use different transmission pressure sensors, such as 701/80519.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX098692A
701/80335
0.10 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
701/80335

Specific References

MPN
701/80335
