Brake plate suitable for VOLVO
FEROSTEM

Brake plate suitable for VOLVO

Catalog number:SKX059971FM Nr OEM:11716579 Manufacturer:FEROSTEM
Add a review

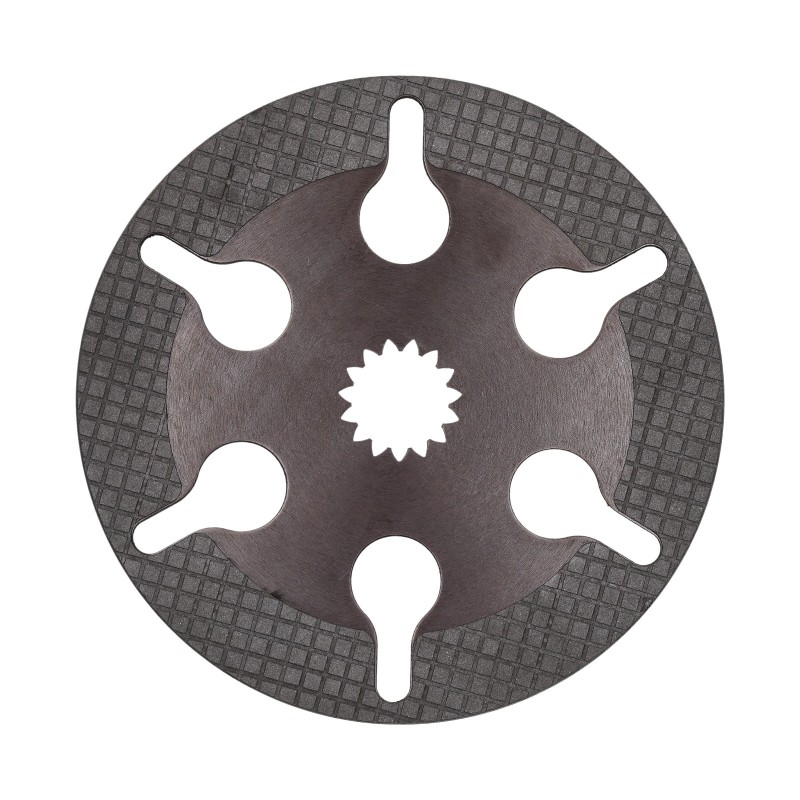

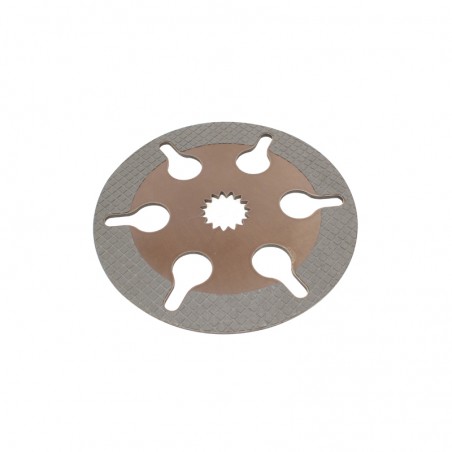

Friction Brake Disc (289mm / 15 Teeth) suitable for Volvo - 11716579

Technical Specification and Compatibility

High-performance 11716579 wet friction disc. This is a specialized brake system component for Volvo backhoe loaders. The disc is characterized by unusual proportions: a large outer diameter of 289 mm with a relatively small shaft hole of 43 mm and significant thickness of 6.7 mm.

Part Number: 11716579
Component Type: Friction Plate / Disc
Outer Diameter: 289 mm
Inner Diameter: 43 mm
Thickness: 6.7 mm
Tooth Count: 15 (Internal / INT TH)
Material: FP (Paper Composite)
Groove Pattern: WAFFLE

Features of HIMACORE 11716579 Disc

WAFFLE Structure: The grid groove pattern on the friction surface enables rapid oil drainage, preventing hydroplaning and ensuring immediate brake response.
FP Material: Modern cellulose-based friction material is resistant to high temperatures and ensures smooth operation without vibration.
Solid Core: The 6.7 mm thickness indicates a massive disc construction, translating into resistance to thermal deformation.
15-Tooth Mounting: Precise internal spline guarantees secure torque transmission from the shaft to the disc.

Application in Volvo machinery

Brand Machine Type
VOLVO Construction Backhoe Loaders (e.g., BL60, BL61, BL70, BL71 - check catalog)

Due to specific dimensions (large diameter, small hole), this disc has a strictly defined application. Part number verification is necessary.

Related Parts and Hardware

The friction disc works in assembly with steel plates. When replacing this element, we recommend checking the condition of mating surfaces and changing the system oil to a dedicated one (UTTO).

⚠️ Safety Warning

Wear of this disc may manifest as weak performance of the parking or service brake (depending on function). Operating on worn discs destroys metal system components and contaminates oil with filings.

Part Role in the Machine and Failure Diagnostics

The friction disc generates braking resistance by rubbing against stationary steel elements.

  • › No parking brake (worn lining).
  • › Burning smell (system overheating, driving with brake engaged).
  • › Contaminated oil (filings from the disc).
  • › Noise when applying the brake.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Soaking Procedure: Paper discs (FP) are porous. Before installation, soak them in clean oil for min. 1 hour. Installing a dry disc will cause immediate burning!
  2. Dimension Check: Double-check dimensions. 289mm outer diameter and 43mm inner are very distinctive parameters.
  3. Cleanliness: Remove all contaminants from the housing. Old oil and filings act destructively on the new friction material.

Frequently Asked Questions (FAQ)

What does FP material mean?

FP (Friction Paper) is an advanced cellulose-based composite. It ensures quiet operation and high efficiency in wet brake systems, being a standard in modern machines.

Where is this disc used?

Due to its dimensions, this disc is often used in parking (hand) brake systems integrated with the drivetrain.

Why is it so thick (6.7mm)?

The significant thickness results from the system design, where often fewer discs are used (sometimes only one or two), which must handle high loads and heat.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX059971FM
11716579
1.00 kg

Data sheet

SUITABLE FOR
VOLVO
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
VOE11716579 / 11716579
OUTER DIAMETER (MM)
289
INNER DIAMETER (MM)
43
THICKNESS (MM)
6,7
NUMBER OF TEETH
15

Specific References

MPN
11716579
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Brake plate suitable for VOLVO

Catalog number: SKX059971FM
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

141.45 zł

net price
115,00 zł
Available in large quantity Temporarily unavailable
115,00 zł
net price

141.45 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 12 points, it gives you 4.80 zł
  • Lowest price from 30 days before the discount: 141.45 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    VOLVO
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    VOE11716579 / 11716579
    OUTER DIAMETER (MM)
    289
    INNER DIAMETER (MM)
    43
    THICKNESS (MM)
    6,7
    NUMBER OF TEETH
    15
