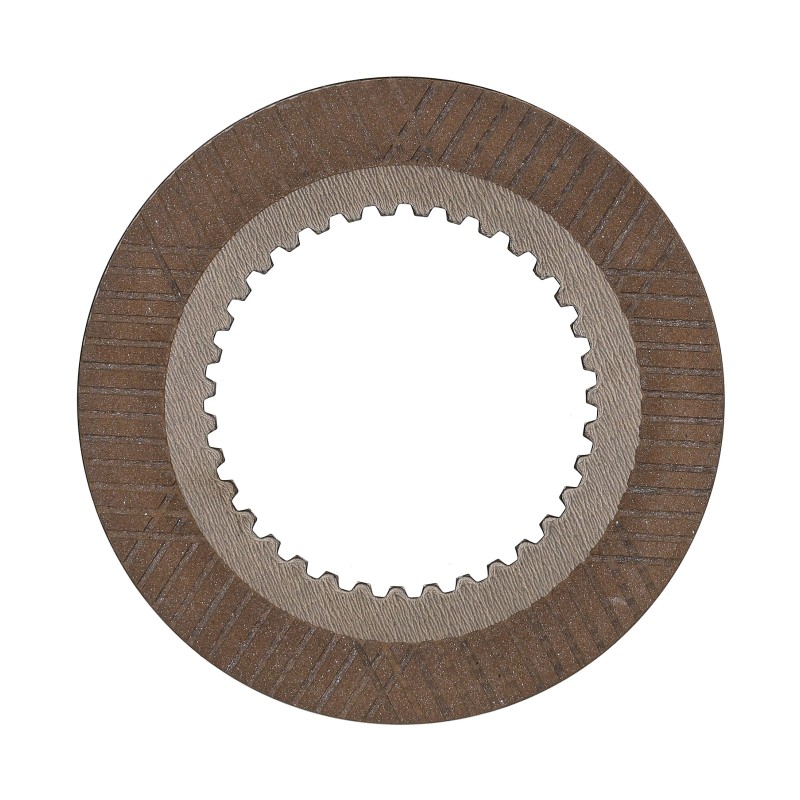

Brake plate suitable for CAT M313-318
FEROSTEM

Brake plate suitable for CAT M313-318

Catalog number:SKX052743FM Nr OEM:5W5690 Manufacturer:FEROSTEM
Add a review

Rear Axle Clutch Friction Disc for CAT M312 M315 - 5W5690

Technical Specification and Compatibility

High-quality 5W5690 friction disc manufactured by FEROSTEM. This is a specialized drivetrain component serving as the Rear Axle Clutch Disc. Designed for Caterpillar (CAT) M300 series wheeled excavators and older 200 series models. It is responsible for engaging and disengaging the drive, influencing torque distribution between the rear wheels.

Part Number: 5W5690
Component Type: Clutch/Brake Friction Disc
Location: Rear Axle / Drive Axle
Function: Traction and Torque Control
Outer Diameter: 179 mm
Inner Diameter: 103 mm
Thickness: 3.5 mm
Tooth Count: 35 (Internal / INT TH)
Material: FP (Friction Paper)
Manufacturer: FEROSTEM

FEROSTEM products guarantee the maintenance of factory parameters in power transmission systems. These discs are designed to withstand high levels of heat and pressure, ensuring smooth mechanism operation in difficult terrain.

Features of FEROSTEM 5W5690 Disc

Traction Optimization: The disc allows effective cooperation of rear wheels, improving stability and machine control on varied ground.
Thermal Resistance: The friction material resists high temperatures generated during frequent clutch engagement and disengagement under load.
Torque Distribution: Precise manufacturing ensures even power transmission, protecting other axle components from shock loads.
Fatigue Durability: Component designed for repetitive load cycles typical for excavator operation.

Application in CAT machinery

Machine Type Models
Wheeled Excavators M312, M313C, M315, M315C, M316C, M318
Tracked Excavators (Older series) 206, 206B, 212, 212B

The disc is a key component of the drive axle in the listed models. Before purchasing, we recommend verifying the part number in the machine's catalog.

Related Parts and Hardware

Disc 5W5690 works in a pack with steel separator plates. When replacing friction discs, it is recommended to verify the condition of the separators and change the axle oil to fresh, CAT-specification compliant.

⚠️ Safety Warning

Wear of the rear axle clutch discs leads to drive slippage, loss of power to the wheels, and oil overheating. Prolonged operation with worn discs can cause damage to the clutch basket and costly axle repair.

Part Role in the Machine and Failure Diagnostics

The disc is responsible for transmitting drive to the rear axle and traction control.

  • › No rear drive (complete disc wear).
  • › Jerking when starting (warped discs or plates).
  • › Axle overheating (residual friction).
  • › Presence of friction material filings in axle oil.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Oil Soaking: Paper discs (FP) are absorbent. Soak them in clean transmission oil for min. 1 hour before installation. Installing dry discs will cause them to burn immediately!
  2. Axle Cleaning: Thoroughly flush the axle housing. Metal filings from the old failure will destroy the new, soft paper linings.
  3. Plate Inspection: Always check the condition of steel plates. If they are overheated (purple) or warped, replace them along with the friction discs.

Frequently Asked Questions (FAQ)

What does "3 PASS" mean?

This indicates a specific groove pattern on the disc that provides three-way oil flow, optimizing clutch cooling.

Where is this disc installed?

Disc 5W5690 is located in the rear drive axle, inside the clutch/brake assembly responsible for traction.

What is the disc thickness?

The thickness of a new disc is 3.5 mm. Worn discs must be replaced to maintain correct clearance in the pack.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX052743FM
5W5690
0.27 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
5W5690 / 1217632
OUTER DIAMETER (MM)
179
INNER DIAMETER (MM)
103
THICKNESS (MM)
3,5
NUMBER OF TEETH
35

Specific References

MPN
5W5690
