Plate brake counter suitable for CAT machines
FEROSTEM

Plate brake counter suitable for CAT machines

Catalog number:SKX831880FM Nr OEM:9R-9401 Manufacturer:FEROSTEM
Add a review

FEROSTEM BRAKE SEPARATOR PLATE (STEEL) FOR CAT 428C, 428D, 432D - 9R9401

Technical Specification and Compatibility

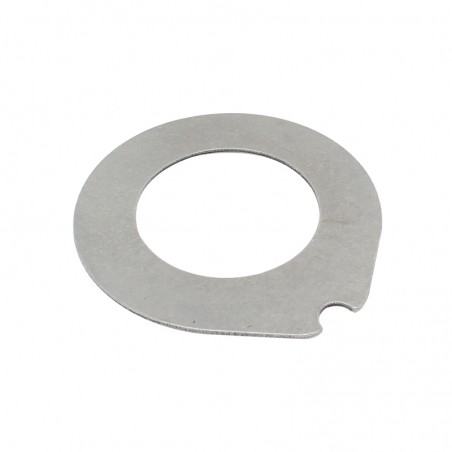

A key component of the wet brake pack – this is a precision-made steel brake separator plate by FEROSTEM. It is designed for the drive axles in newer generation CATERPILLAR backhoe loaders, including 428C, 428D, 432D, 438C, 442D and others. The separator plate operates in an oil bath, alternating with the friction discs. Its perfectly flat, high-strength steel surface and precise thickness (4.5 mm) are essential for ensuring correct braking force, proper friction, and effective heat dissipation from the brake pack.

Part number: 9R9401 / 9R-9401
Manufacturer: FEROSTEM
Material: Steel
Outer Diameter: 209.2 mm
Inner Diameter: 124 mm
Thickness: 4.5 mm
No. of Teeth: 1 (Refers to a single positioning lug/notch)

FEROSTEM is a specialized manufacturer of brake system components, delivering high-quality discs and plates that are precisely engineered to meet the rigorous demands of construction machinery, ensuring safety and durability.

Essential for Brake Service

  • › Friction Discs: Steel plates work in alternation with friction discs. The entire pack should always be replaced together.
  • › Axle Oil (with LSD additive): Required to refill the axle after the brake service.
  • › Axle Seals: Brake replacement requires removing the planetary hub, which necessitates replacing the axle seals.

Application in machines

Brand Type / Series / Model
CATERPILLAR Backhoe Loaders: 420D, 424D, 426C, 428B, 428C, 428D, 430D, 432D, 436C, 438B, 438C, 438D, 442D

The list above is for reference. We recommend verifying the part number or exact dimensions (OD 209.2mm / ID 124mm / Thickness 4.5mm) before purchasing.

⚠️ Safety Warning

Servicing wet brakes in a drive axle is an advanced repair. It requires the machine to be securely supported on stands and involves removing heavy components (wheels, planetary hub). A faulty brake system is a fatal hazard. Ensure the system is properly bled after repair.

Part's Role in the Machine and Failure Diagnostics

The steel separator plate is the friction counter-surface in a wet brake pack. It alternates with the friction discs. A piston compresses this pack, and the friction between the plates and discs creates the braking force. Wear or damage to these plates is a primary cause of brake failure.

  • › Weak or fading braking power (pedal feels spongy or goes to the floor).
  • › Loud grinding, scraping, or squealing from the axle during braking.
  • › Overheating of the axle and a distinct burning smell.
  • › Presence of excessive metal shavings in the axle oil (a sign of metal-on-metal contact).

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Replace as a Kit: Never replace just one plate or only the friction discs. Always replace the entire kit (all steel plates 9R9401 and all friction discs) on both sides of the axle to ensure even braking and correct pack clearance.
  2. Absolute Cleanliness: The brake system is a hydraulic system. Assembly must be done in sterile conditions. The smallest contaminant can damage the brake pump or piston.
  3. Oil Submersion: Before assembly, all new steel plates and friction discs must be generously soaked in the correct axle oil.
  4. Bleeding: After reassembly and refilling with oil, the brake system must be thoroughly bled according to the service procedure.

Frequently Asked Questions (FAQ)

1. What is the difference between a friction disc and a separator plate?

A Separator Plate (9R9401) is a smooth, solid steel disc with an outer positioning lug. A Friction Disc (sold separately) has a friction material (like sintered bronze) and internal teeth (splines) that engage the axle shaft.

2. Can I just replace the worn friction discs and reuse these steel plates?

This is highly discouraged. If the friction discs are worn, the steel plates are almost certainly overheated, discolored, or warped. Reusing old plates with new friction discs will cause the new discs to be destroyed very quickly and will result in a loss of braking power.

3. What is the difference between this plate (9R9401) and 9R2476?

Both are steel separator plates for CAT machines, but they have completely different dimensions. This plate (9R9401) has an inner diameter of 124 mm and is 4.5 mm thick (for 428C/D). The older plate (9R2476) has an inner diameter of 114.3 mm and is 2.7 mm thick (for 428/428B). They are not interchangeable.
