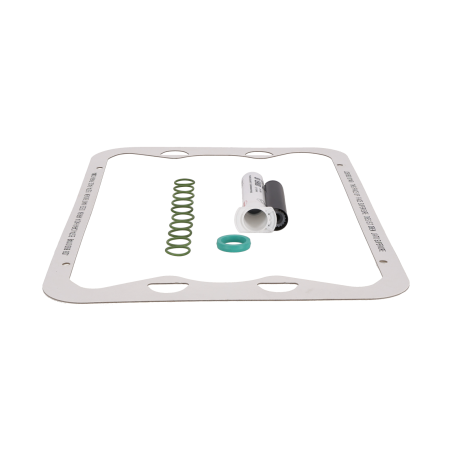

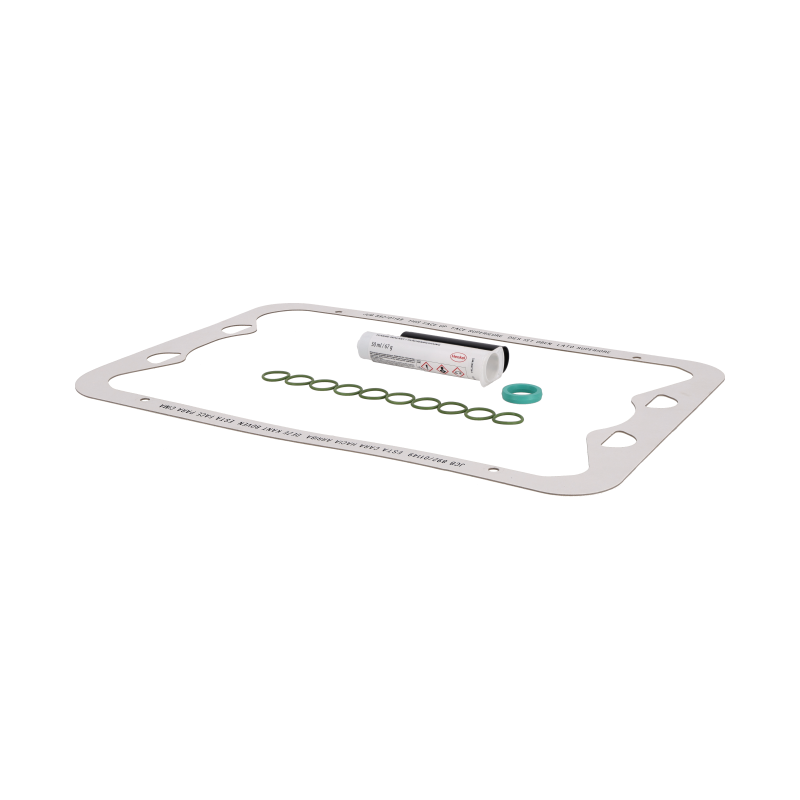

Oil pan kit gasket suitable for JCB
JCB

Oil pan kit gasket suitable for JCB

Catalog number:SKX988360D Nr OEM:320/09219 Manufacturer:JCB
Add a review

Original Oil Sump Gasket (Kit) for JCB DieselMax - 320/09219

Technical Specification and Compatibility

Original JCB oil sump gasket kit 320/09219, designed for JCB DieselMax and JCB EcoMax engines (320/4xxxx and 320/5xxxx series). This is a crucial service kit, essential for ensuring a perfect seal between the engine block and the oil sump. As a genuine JCB part, it guarantees a perfect fit and materials resistant to hot oil, eliminating the risk of costly leaks.

Part Number: 320/09219
Type: Oil Sump Gasket / Seal Kit
Engine Compatibility: JCB DieselMax / JCB EcoMax

Original JCB product – a guarantee of the highest quality, perfect fit, and 100% compatibility with your machine. Using genuine gaskets is critical for ensuring a long-lasting seal and protecting your engine.

Features of the 320/09219 Gasket

Genuine JCB Quality: Guarantees material with perfect flexibility and resistance to heat and oil degradation.
Perfect Seal: Eliminates the risk of engine oil leaks, protecting the engine and the environment.
Ideal Fit: Precision-molded to perfectly fit the block and sump of DieselMax and EcoMax engines.
Essential for Service: This gasket must be replaced every time the oil sump is removed.

Application in machinery

Brand Type / Series / Model
JCB Backhoe Loaders: 2CX, 2DX, 3CX, 4CX, 5CX, MIDI CX (with DieselMax/EcoMax engines, post-2005)
JCB Telehandlers (Loadall): 505-560 Series (with DieselMax/EcoMax engines)
JCB Wheel Loaders: 406-467 Series & TM200-TM320 Series (with DieselMax/EcoMax engines)
JCB JS Excavators (Tracked & Wheeled): e.g., JS115-JS370, JZ140 (with DieselMax/EcoMax engines)
JCB Skidsteers (Robot): 225-330 Series, Teleskid (with DieselMax/EcoMax engines)
JCB Rough Terrain Forklifts (RTFL): 921-950 Series (with DieselMax/EcoMax engines)
JCB Other: FASTRAC, TELETRUK, Site Dumpers (6T, 7T, 9T), Vibromax, Generators (G*R, G*RX, G*Q)
JCB Engines: 320/40001 to 320/49999 (DieselMax), 320/50001 to 320/55000 (EcoMax)

The list above is for reference. This gasket fits most JCB machines produced after 2005 with a JCB DieselMax or EcoMax engine.

Related Parts and Hardware

The 320/09219 gasket is essential for any sump service. We also recommend replacing the oil filter and the sump drain plug with its washer. A liquid sealant may be required for the corners.

⚠️ Safety Warning

A failed or leaking sump gasket leads to a constant engine oil leak. This risks dropping the oil level below minimum, which results in loss of lubrication and engine seizure. Leaking oil also creates a serious fire hazard (if it contacts hot exhaust parts) and a slip hazard.

Part Role in the Machine and Failure Diagnostics

The 320/09219 oil sump gasket is a molded seal placed between the bottom edge of the engine block and the oil sump pan. Its sole, but critical, job is to hermetically seal the bottom of the lubrication system, preventing the oil (which is vital for lubricating all moving engine parts) from leaking out.

  • › Visible oil leaks or "sweating" from the joint between the sump and the engine block.
  • › Needing to frequently top-up engine oil with no other obvious cause.
  • › Build-up of oil-soaked dirt and grime on the bottom of the engine.
  • › Old gasket is hardened, flattened, or cracked (visible upon sump removal).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Degrease Surfaces: Before installing the new gasket, the surfaces of the engine block and oil sump must be perfectly clean and dry. Degrease them with brake cleaner.
  2. Check Sump Pan: Ensure the oil sump flange is not bent or damaged.
  3. Sealant in Corners: As per the JCB service manual, apply small "dots" of RTV sealant in the corners (where the block meets the timing and flywheel housings) in addition to the 320/09219 gasket.
  4. Torque Sequence: Tighten the sump bolts gradually in a "cross" pattern (from the center outwards), using a torque wrench to ensure even compression.
  5. Cure Time: If you used additional sealant, wait the recommended cure time before refilling the engine with oil.

Frequently Asked Questions (FAQ)

Does this gasket fit a Perkins engine (e.g., in an older 3CX)?

No. This gasket (320/09219) is exclusively for machines with JCB DieselMax or JCB EcoMax engines (usually post-2005). Older machines with Perkins engines have a completely different sump and gasket.

Is this product just the gasket or a kit?

This is the complete oil sump sealing kit, as specified by JCB for this part number. It typically consists of the main molded gasket and any required corner seals.

What is the difference between 320/09219 and 02/202326?

These are two completely different gaskets. 320/09219 (this product) is the oil sump gasket (bottom of the engine). 02/202326 is the timing cover gasket (front of the engine) for Perkins engines.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

JCB
SKX988360D
320/09219
0.65 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
EXCAVATOR
FORKLIFT
GENERATOR
ROBOT
TELESCOPIC HANDLER
TELETRUK
VIBROMAX
WHEELED LOADER
OEM NUMBERS
320/09219
ENGINE
JCB DIESELMAX

Specific References

MPN
320/09219
