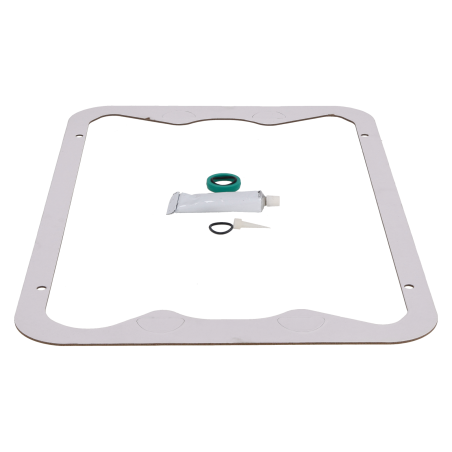

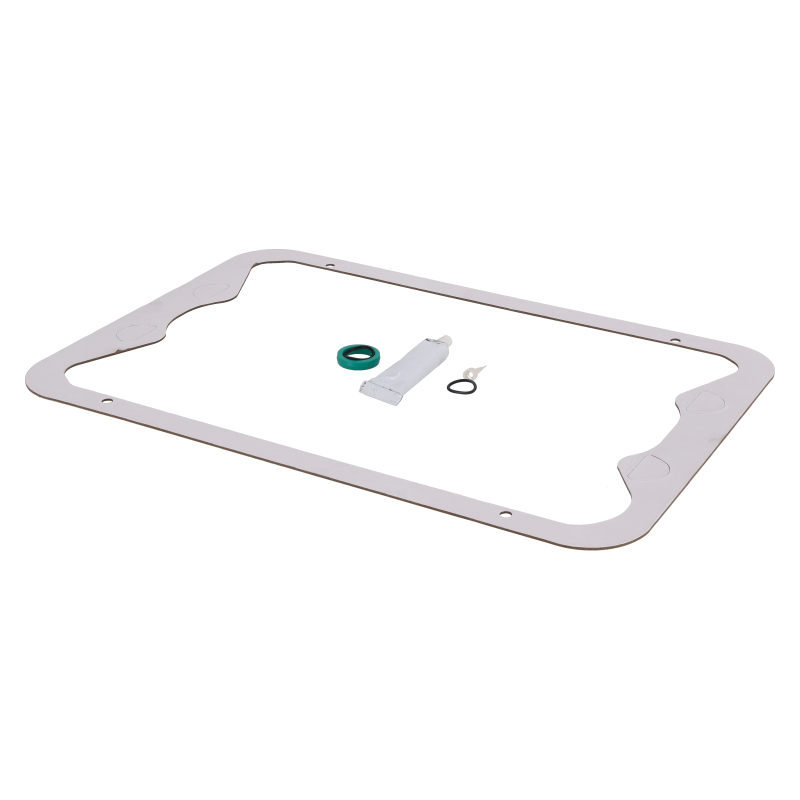

Part number: 320/09219
Type: Gasket / Oil Pan Sealing Kit
Compatibility: JCB DieselMax and EcoMax engines (series 320/4xxxx and 320/5xxxx)
The 320/09219 oil pan gasket kit is a critical service component that ensures perfect sealing between the engine block and the oil pan. Replacement of this gasket is mandatory whenever the oil pan is removed, protecting the engine from oil leaks.
Key Benefits:
Failure Diagnostics
⚠️ Safety Warning
A damaged or leaking oil pan gasket can lead to continuous oil loss, reduced lubrication, and engine seizure. Escaping oil also poses a fire hazard (contact with hot exhaust) and increases the risk of slips.
Application in machinery
|
Brand
|
Type / Series / Model
|
|
JCB |
Backhoe Loaders: 2CX, 2DX, 3CX, 4CX, 5CX, MIDI CX (with DieselMax/EcoMax engines, post-2005) |
|
JCB |
Telehandlers (Loadall): 505-560 Series (with DieselMax/EcoMax engines) |
|
JCB |
Wheel Loaders: 406-467 Series & TM200-TM320 Series (with DieselMax/EcoMax engines) |
|
JCB |
JS Excavators (Tracked & Wheeled): e.g., JS115-JS370, JZ140 (with DieselMax/EcoMax engines) |
|
JCB |
Skidsteers (Robot): 225-330 Series, Teleskid (with DieselMax/EcoMax engines) |
|
JCB |
Rough Terrain Forklifts (RTFL): 921-950 Series (with DieselMax/EcoMax engines) |
|
JCB |
Other: FASTRAC, TELETRUK, Site Dumpers (6T, 7T, 9T), Vibromax, Generators (G*R, G*RX, G*Q) |
|
JCB |
Engines: 320/40001 to 320/49999 (DieselMax), 320/50001 to 320/55000 (EcoMax) |
The list above is for reference. This gasket fits most JCB machines produced after 2005 with a JCB DieselMax or EcoMax engine.
Data sheet
Specific References
Manufacturer
Responsible person




The 320/09219 oil pan gasket kit is a critical service component that ensures perfect sealing between the engine block and the oil pan. Replacement of this gasket is mandatory whenever the oil pan is removed, protecting the engine from oil leaks.
