Fuel filter suitable for CAT
REDX

Fuel filter suitable for CAT

Catalog number:SKX821177RX Nr OEM:2289130 Manufacturer:REDX
Add a review

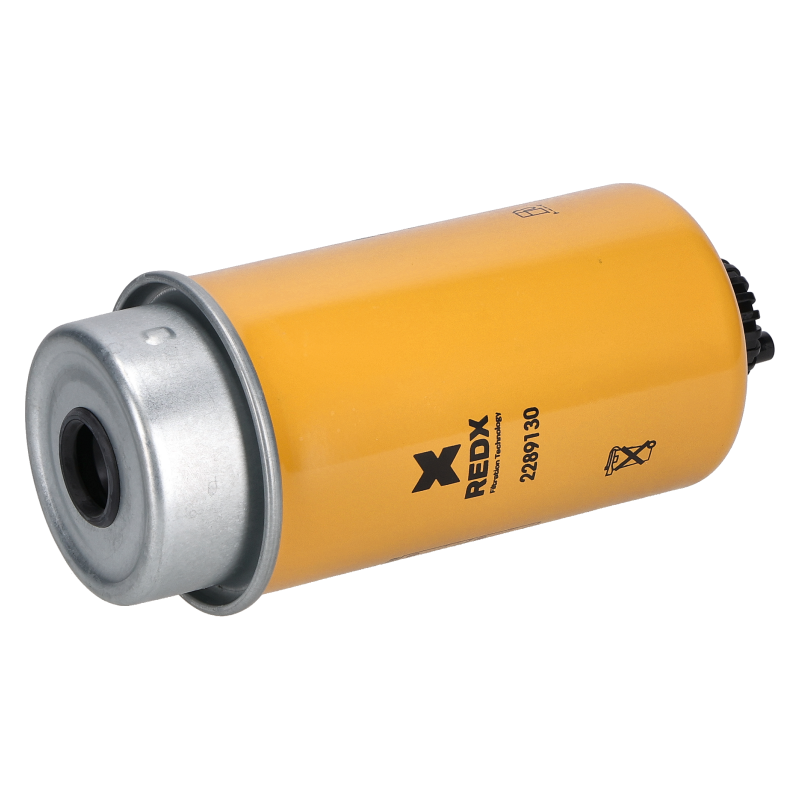

Fuel Water Separator Filter suitable for CAT 428D 432E - 2289130

Technical Specification and Compatibility

Fuel filter (water separator) with part number 2289130 from the REDX offer. It is a high-quality filter element used in popular Caterpillar (CAT) D, E, and G series machines. Dedicated to backhoe loaders (e.g., 428D, 432E), small track-type tractors, and wheel loaders. Its main task is to separate water from diesel fuel, which is crucial for protecting the injection pump from corrosion.

Part Number: 2289130
Component Type: Fuel Water Separator Element
Height: 180 mm
Outer Diameter: 68.6 mm
Inner Diameter: 22.2 mm
Application: Primary Fuel Filtration
Manufacturer: REDX

REDX filters use filter media with high water coalescence capability. Thanks to this, water droplets merge into larger clusters and fall to the bottom of the sediment bowl instead of reaching the delicate components of the injection system.

Features of REDX 2289130 Filter

Effective Separation: Stops free and emulsified water, preventing rust on the fuel pump and injectors, which is a common cause of failure in older machines.
OEM Dimensions: Diameter 68.6 mm and height 180 mm ensure a perfect fit for the separator housing in CAT 3054 series engines.
Durable Construction: The cartridge is resistant to crushing and retains its filtration properties throughout the service interval.
Easy Replacement: Standard cartridge mounting allows for quick service in field conditions.

Application in CAT machinery

Category Models
Backhoe Loaders 414E, 416D, 416E, 420D, 420E, 422E, 424D, 428D, 428E, 430D, 430E, 432D, 432E, 434E, 442D, 442E, 444E
Track-Type Tractors D3G, D4G, D5G
Wheel Loaders 914G
Integrated Toolcarriers IT14G

Filter fits mainly D and E series CAT machines with mechanical engines (e.g., 3054). Check dimensions before purchasing.

Related Parts and Hardware

Filter 2289130 is a separator element (primary). It should always be replaced together with the fine fuel filter (spin-on engine mounted). It is also worth getting new separator housing gaskets.

⚠️ Operational Warning

Skipping the water separator replacement or ignoring water in the sediment bowl (glass) under the filter will lead to corrosion of the injection pump. The symptom is usually difficult starting and engine smoking, and pump repair is very expensive.

Part Role in the Machine and Failure Diagnostics

The pre-filter protects the system from water and coarse contaminants.

  • › Power loss (clogged filter cartridge).
  • › Engine stalls (water in fuel or blockage).
  • › Visible water in the glass under the filter (drain required).
  • › Starting problems in low temperatures (paraffin in filter).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Sediment Bowl: Be careful when dismantling the clear sediment bowl from the bottom of the old cartridge. It is reusable but easily damaged if over-tightened. Clean it thoroughly before reassembly to see water level.
  2. Bleeding: After replacing the cartridge, use the hand pump (primer) on top of the filter to remove air. Starting a designated "dry" system can damage the starter and pump.
  3. Gaskets: Always use new gaskets for the housing and bowl. Old gaskets are hardened and will cause air intake into the system.

Technical FAQ and Trivia

Is this a fine filter?

No. Filter 2289130 is a pre-filter with a water separator (coarse). The fine filter is usually a smaller, spin-on filter mounted directly on the engine block.

What are the dimensions?

Height 180 mm, outer diameter 68.6 mm, inner hole diameter 22.2 mm.

Trivia about hydrostatic drive

Small CAT machines like D4G dozers or 914G loaders, which fit this filter, often use hydrostatic drive. This allows for smooth speed changes and precise control without shifting gears, which is ideal for precise earthworks.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX821177RX
2289130
0.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
BACKHOE LOADER
DOZER
WHEELED LOADER
OEM NUMBERS
ZP8005F / SN70214 / P551433 / FS19864 / 84565927 / 87801285 / 87802926 / 87802925 / 87802728 / 87802927 / 3S4002 / 33609 / 2289130 / 228-9130 / 1931137 / 193-1137
ENGINE
CAT
PERKINS
OUTER DIAMETER (MM)
68,6
INNER DIAMETER (MM)
22,2
HEIGHT (MM)
180

Specific References
