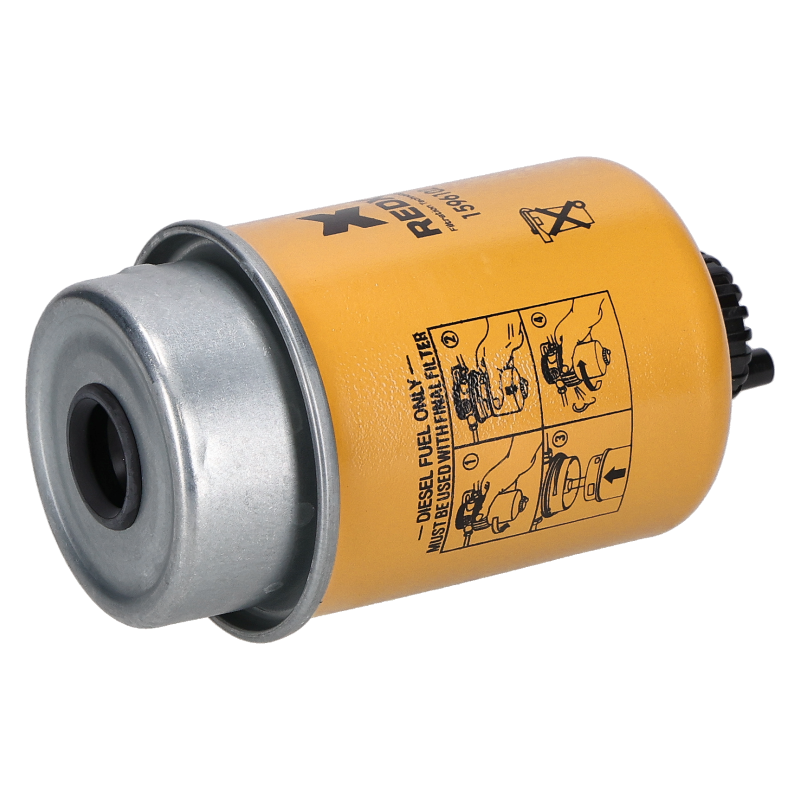

Fuel filter separator suitable for CAT
REDX

Fuel filter separator suitable for CAT

Catalog number:SK050674RX Nr OEM:1596102 Manufacturer:REDX
Add a review

Fuel Water Separator Filter suitable for CAT - 1596102

Technical Specification and Compatibility

Fuel filter (water separator element) with part number 1596102 from the REDX offer. It is a key fuel system component used in a wide range of Caterpillar (CAT) machines equipped with 3054, 3056, and C7.1 series engines. This filter is responsible for primary fuel cleaning and water separation, which is essential for protecting the injection pump and injectors in backhoe loaders, telehandlers, and mini excavators.

Part Number: 1596102
Component Type: Fuel Separator Element
Height: 154.5 mm
Outer Diameter: 84 mm
Inner Diameter: 17 mm
Engines: CAT 3054, 3056, 3034, C7.1
Manufacturer: REDX

REDX filters use high-quality filter media that effectively retain solid contaminants and coalesce water, protecting the fuel system from corrosion and failure, especially in older machines with mechanical injection and newer units.

Features of REDX 1596102 Filter

Effective Separation: The special structure of the cartridge allows for effective separation of water from diesel fuel, preventing damage to the injection pump.
Universal Dimensions: Dimensions 154.5x84 mm and 17 mm hole are standard for many filter housings used in CAT machines from the 90s and 2000s.
Rigid Construction: The cartridge is resistant to collapsing under fuel suction vacuum, ensuring constant flow.
Wide Application: Fits C and D series backhoe loaders, TH telehandlers, mini excavators, and many other construction machines.

Application in CAT machinery

Category Models
Backhoe Loaders 416B, 416C, 416D, 420D, 424D, 426B, 426C, 428B, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D
Telehandlers TH62, TH63, TH82, TH83, TH103, TH210, TH215, TH350B, TH355B, TH360B, TH460B
Tracked Excavators 307, 307-A, 312-A, 312B, 312B L, 312C, 312C L, 315-A, 315B L, 317 N, 317-A, 317-A N
Wheeled Excavators M312, M315
Skid Steer Loaders 216, 226, 228, 232, 236, 242, 246, 247, 248, 252, 257, 262, 267, 277
Wheel Loaders 906, 908, 914G, IT14G
Rollers and Compactors CB-434B, CB-434C, CB-534B, CB-534C, CB-535B, CB-544, CB-545, CP-323C, CP-433C, CP-433E, CS-323C, CS-423E, CS-431C, CS-433C, CS-433E, PF-290B, PF-300B, PS-150B, PS-200B, PS-300B, PS-360B
Asphalt Pavers AP-650B, AP-800C, BG-210B, BG-225B, BG-225C, BG-230
Engines and Others Industrial and Marine Engines (3034, 3054, 3054B, 3056, C7.1), Generators (C7.1 GEN S, C7.1DE150E, C7.1DE200E, DE150GC, DE165GC), Forestry (554)

Filter fits older and newer CAT 4-cylinder engines. Check dimensions: 154.5mm height.

Related Parts and Hardware

Filter 1596102 is a separator cartridge. It is usually mounted in a glass or metal sediment bowl housing. When replacing, it is worth getting a set of gaskets to avoid air in the system.

⚠️ Operational Warning

Water in fuel is the main enemy of injection systems. If water appears in the sediment bowl under the filter, drain it immediately. Regular cartridge replacement prevents water from entering the injection pump and costly breakdowns.

Part Role in the Machine and Failure Diagnostics

The filter separates water and solid contaminants.

  • › Power loss (clogged filter).
  • › Engine stalls (water or blockage in the system).
  • › Smoke (bad combustion).
  • › Hard starting (air intake through old gaskets).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Sediment Bowl: Check the water level in the sediment bowl (glass) under the filter daily before starting the machine. Drain water if it appears.
  2. Gaskets: When replacing the cartridge, be sure to replace the gaskets at the top and bottom. Lubricate them with fuel before installation so they don't twist.
  3. Bleeding: After changing the filter, use the hand fuel pump to remove air from the system. Do not crank the starter dry.

Technical FAQ and Trivia

Is this a pre-filter?

Yes, filter 1596102 acts as a water separator and pre-filter. Usually, there is also a fine filter behind it, which catches the smallest impurities.

What are the dimensions?

Height 154.5 mm, outer diameter 84 mm, hole diameter 17 mm. It is a "cartridge" type insert (without an external metal can).

Trivia about 3054 engine

The CAT 3054 engine, which this filter fits, is actually based on the legendary Perkins 1004 series engine. Thanks to this, consumables are widely available and proven in millions of machines worldwide.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SK050674RX
1596102
0.00 kg

Data sheet

SUITABLE FOR
CAT
VOLVO
MACHINE TYPE
BACKHOE LOADER
EXCAVATOR
SKID STEER LOADER
TELESCOPIC HANDLER
VIBROMAX
WHEELED LOADER
OEM NUMBERS
26560143 / SN70110 / VOE11711183 / 11711183 / 1596102 / 159-6102 / 1383098 / 138-3098 / 1005593 / 100-5593 / 1005374 / 100-5374 / 2053043 / 205-3043 / 10000-51230 / FS19840
ENGINE
CAT
PERKINS
OUTER DIAMETER (MM)
84
INNER DIAMETER (MM)
17
HEIGHT (MM)
154,5

Specific References

MPN
1596102
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Fuel filter separator suitable for CAT

Catalog number: SK050674RX
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

30.75 zł

net price
25,00 zł
Available in large quantity Temporarily unavailable
25,00 zł
net price

30.75 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 3 points, it gives you 1.20 zł
  • Place an order within 03h 19m 05s And we will send your order today

    Lowest price from 30 days before the discount: 30.75 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    VOLVO
    MACHINE TYPE
    BACKHOE LOADER
    EXCAVATOR
    SKID STEER LOADER
    TELESCOPIC HANDLER
    VIBROMAX
    WHEELED LOADER
    Show more
    OEM NUMBERS
    26560143 / SN70110 / VOE11711183 / 11711183 / 1596102 / 159-6102 / 1383098 / 138-3098 / 1005593 / 100-5593 / 1005374 / 100-5374 / 2053043 / 205-3043 / 10000-51230 / FS19840
    ENGINE
    CAT
    PERKINS
    OUTER DIAMETER (MM)
    84
    INNER DIAMETER (MM)
    17
    HEIGHT (MM)
    154,5
