Fuel filter separator suitable for CAT
REDX

Fuel filter separator suitable for CAT

Catalog number:SKX820597RX Nr OEM:233-9856 Manufacturer:REDX
Add a review

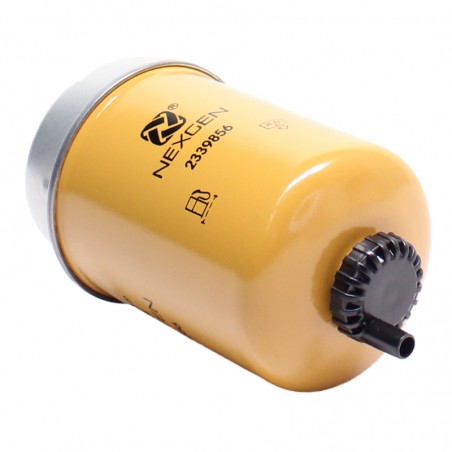

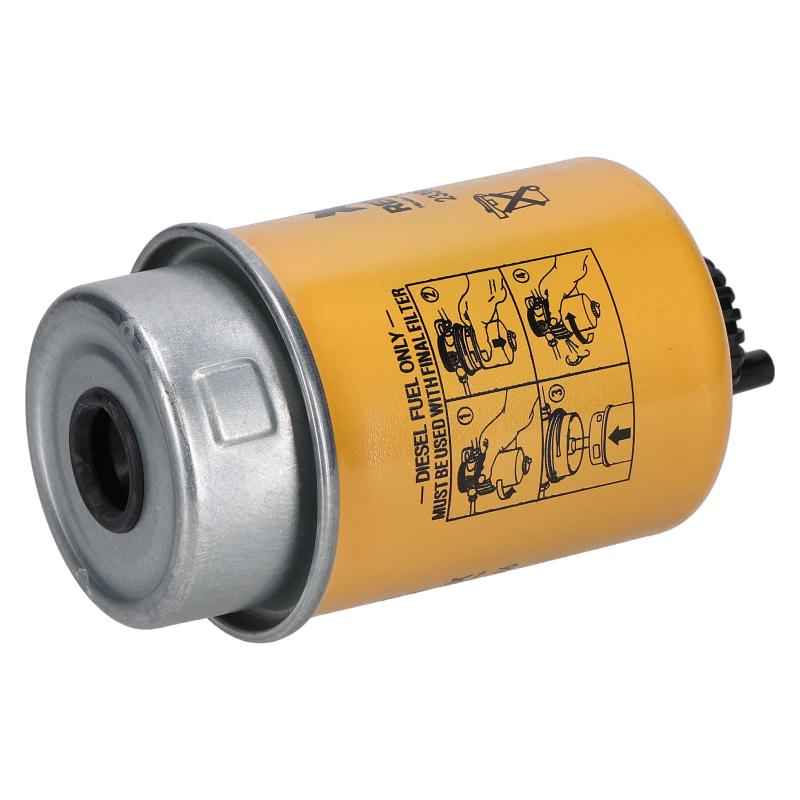

Fuel Water Separator Filter suitable for CAT 2339856 - REDX

Technical Specification and Compatibility

Fuel filter (water separator) with part number 2339856 from the REDX offer. It is a high-quality filter element used in compact Caterpillar (CAT) machines. Dedicated to mini excavators, small wheel loaders, and a wide range of Skid Steer loaders. The filter effectively removes water and contaminants from fuel, protecting 3044C and C3.4 series engines.

Part Number: 2339856
Component Type: Fuel Filter / Water Separator
Height: 156 mm
Outer Diameter: 84 mm
Inner Diameter: 69.5 mm
Engines: CAT 3044C, C3.4
Manufacturer: REDX

REDX filters ensure excellent water separation, which is crucial for the durability of the injection equipment. Precision manufacturing of seals and filter media guarantees trouble-free installation and system tightness.

Features of REDX 2339856 Filter

Water Separation: Specialized filter media effectively coalesces water molecules, allowing them to be separated from diesel fuel.
Precise Dimensions: Dimensions 156x84 mm comply with OEM specifications, ensuring a perfect fit for the filter housing in CAT machines.
Engine Protection: Protects the injection pump and injectors against corrosion and seizure caused by the presence of water or dirt in the fuel.
Wide Application: Fits dozens of CAT compact machine models, making it a universal service item.

Application in CAT machinery

Category Models
Mini Excavators 303.5C, 303.5D, 303C CR, 304C CR, 304D CR, 305.5D, 305.5E, 305C CR, 305D CR, 306E, 306E2, 307D, 307E, 307E2, 308D, 308E, 308E2
Wheel Loaders 906, 906H, 906H2, 907H, 907H2, 908, 908H, 908H2
Skid Steer Loaders 236B, 236B3, 242B3, 246B, 246C, 248B, 252B, 252B3, 256C, 257B3, 259B3, 262B, 262C, 262C2, 267B, 268B, 272C, 277B, 277C, 277C2, 279C, 279C2, 287B, 287C, 287C2, 289C, 289C2, 297C, 299C
Industrial & Marine Engines 3044C, C3.4, C4.4 (Marine)

Filter fits popular compact CAT machines. Check cartridge dimensions: 156mm height.

Related Parts and Hardware

Filter 2339856 is a separator cartridge. When replacing it, we also recommend checking the condition of the fine fuel filter and filter housing gaskets to ensure full system protection.

⚠️ Operational Warning

Water in fuel is the main cause of injection pump failure in mini excavators and loaders. If the water separator is overfilled or the filter is clogged, water will enter the engine, risking costly failure. Check the sediment bowl regularly!

Part Role in the Machine and Failure Diagnostics

This filter pre-cleans the fuel and separates water.

  • › Engine power loss (clogged filter cartridge).
  • › Starting difficulties (air blockage or fuel blockage).
  • › Engine smoking (bad fuel mixture).
  • › Water visible in sediment bowl (drain required).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Filling the Filter: To facilitate starting and bleeding, fill the new cartridge with clean diesel fuel before installation. Remember to pour fuel through the outer holes, not the center (clean) one.
  2. Gaskets: Always replace seals with new ones and moisten them with fuel before tightening. Dry seals can warp and cause leaks.
  3. Sediment Bowl Check: When changing the filter, clean the transparent sediment bowl thoroughly (if present) to be able to easily check the water level in the future.

Technical FAQ and Trivia

Does the filter have a built-in bowl?

No, number 2339856 is the filter cartridge itself. In most CAT machines, the sediment bowl (glass) is a reusable element screwed to the bottom of the filter.

What are the dimensions?

Height: 156 mm, Outer Diameter: 84 mm, Inner Diameter (hole): 69.5 mm.

Trivia about Skid Steers

Skid Steer Loaders, which this filter fits, do not have a steering system in the traditional sense. They turn by the difference in speed or direction of rotation of the left and right wheels, allowing them to turn on the spot ("on a dime").

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX820597RX
233-9856
0.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
EXCAVATOR
MINIEXCAVATOR
SKID STEER LOADER
WHEELED LOADER
OEM NUMBERS
2339856 / 233-9856 / 1006374 / 100-6374 / 70258 / P551432 / 05821377 / 2506527 / 3619555 / 2339856 / RE546336 / GM63894 / 87802594 / 36944 / MP10326
ENGINE
CAT
PERKINS
OUTER DIAMETER (MM)
84
INNER DIAMETER (MM)
69,5
HEIGHT (MM)
156
