Hydro clamp housing elbow suitable for JCB 4CX 3CX
GX-AFTER

Hydro clamp housing elbow suitable for JCB 4CX 3CX

Catalog number:SKX998060A Nr OEM:816/90548 Manufacturer:GX-AFTER
Add a review

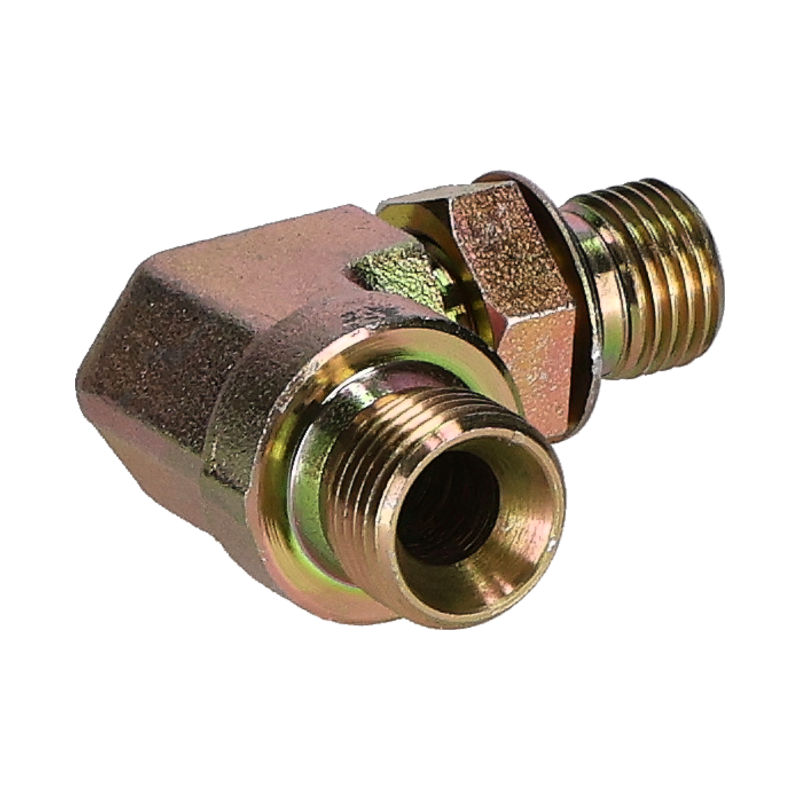

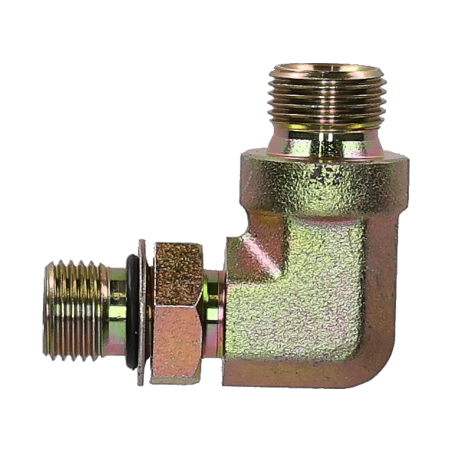

90° Hydraulic Elbow suitable for JCB - 816/90548

Technical Specification and Compatibility

An essential component of the hydraulic system, this 90° hydraulic elbow 816/90548 by GX-AFTER is a precision screw-in adapter. It is designed to change the direction of oil flow in tight spaces. It is commonly used in JCB 3CX and 4CX backhoe loaders, where it is screwed into the sideshift clamp housing. It is also used in many other JCB machines, such as for the SRS valve (Smooth Ride System) in telehandlers.

Part Number: 816/90548
Type: Hydraulic Elbow / 90° Adapter
Application: Sideshift clamp housing (3CX/4CX), SRS valve (Telehandlers), and more

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Features of the 816/90548 Hydraulic Elbow

Wide Application: A universal adapter used in many key JCB systems (sideshift clamp, SRS).
Pressure Resistant: Made from high-grade steel to withstand high operating pressures of the hydraulic system.
Precise Threads: Guarantees a perfect fit and a leak-proof seal.
Compact Design: The 90° angle allows for hose routing in limited-space areas.

Application in machinery

Brand Type / Series / Model
JCB Backhoe Loaders: 3CX, 4CX
JCB JS Excavators
JCB Wheel Loaders
JCB Telehandlers
JCB Mini Excavators
JCB Dumptrucks

The list above is for reference. Due to its wide application, it is crucial to verify the part number 816/90548 in your machine's hydraulic schematic.

Related Parts and Hardware

When replacing hydraulic adapters, it is crucial to replace the seals (O-rings). We also recommend inspecting the condition of the hydraulic hoses that will connect to the elbow.

⚠️ Safety Warning

A leaking or cracked hydraulic elbow under pressure poses a risk of violent ejection of hot oil, which can cause severe burns and injection injuries. A leak also leads to loss of function (e.g., sideshift clamp failure) and environmental contamination.

Part Role in the Machine and Failure Diagnostics

The 816/90548 elbow is a hydraulic adapter whose sole function is to change the routing of a hydraulic line by 90 degrees while maintaining a perfect seal and flow. It is essential in confined spaces, such as near valve blocks (sideshift, SRS), where a straight connection would make it impossible to attach the hose.

  • › Hydraulic oil leak at the connection point (at the thread or seal).
  • › Cracked body of the elbow, usually from impact or material fatigue.
  • › Damaged or stripped threads from installation or removal attempts.
  • › Loss of pressure in the circuit it is installed in (e.g., faulty sideshift).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Absolute Cleanliness: Before screwing in the elbow, ensure the port in the housing (e.g., sideshift block) is perfectly clean.
  2. Always New Seals: Never reuse old O-rings or seals. Always install new ones to guarantee a leak-proof connection.
  3. Check Threads: Ensure the thread on the elbow and in the port are the same type and size to avoid damage.
  4. Correct Torque: Tighten the elbow with the appropriate torque. Under-tightening will cause a leak; over-tightening will damage the threads or O-ring.
  5. Check After Starting: After installation and starting the machine, check the connection under operating pressure to ensure there are no leaks.

Frequently Asked Questions (FAQ)

What does this adapter do in the sideshift clamp?

The 90° elbow allows a hydraulic hose to be connected to the sideshift clamp block in an area where there is too little space for a straight hose. It changes the connection direction, allowing the hose to be routed freely.

What is SRS (Smooth Ride System)?

This is the boom suspension system (floating boom) on JCB telehandlers. This adapter is often used on the valve that controls this system, also due to limited mounting space.

Does this elbow include a seal (O-ring)?

Hydraulic adapters are typically sold without seals, which must be selected separately based on the port type (e.g., O-ring, bonded washer). You must always use a new seal upon installation.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.
