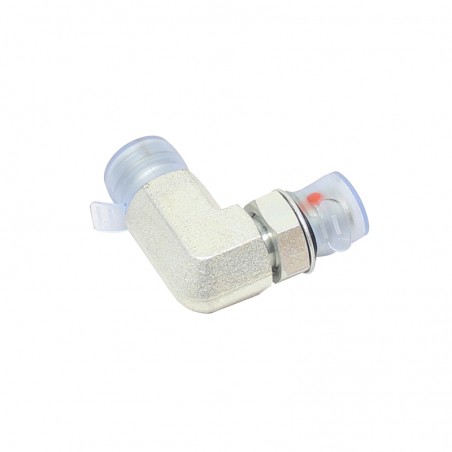

Hydro clamp housing elbow suitable for JCB 4CX 3CX
JCB

Hydro clamp housing elbow suitable for JCB 4CX 3CX

Catalog number:816/90548D Nr OEM:816/90548 Manufacturer:JCB
Add a review

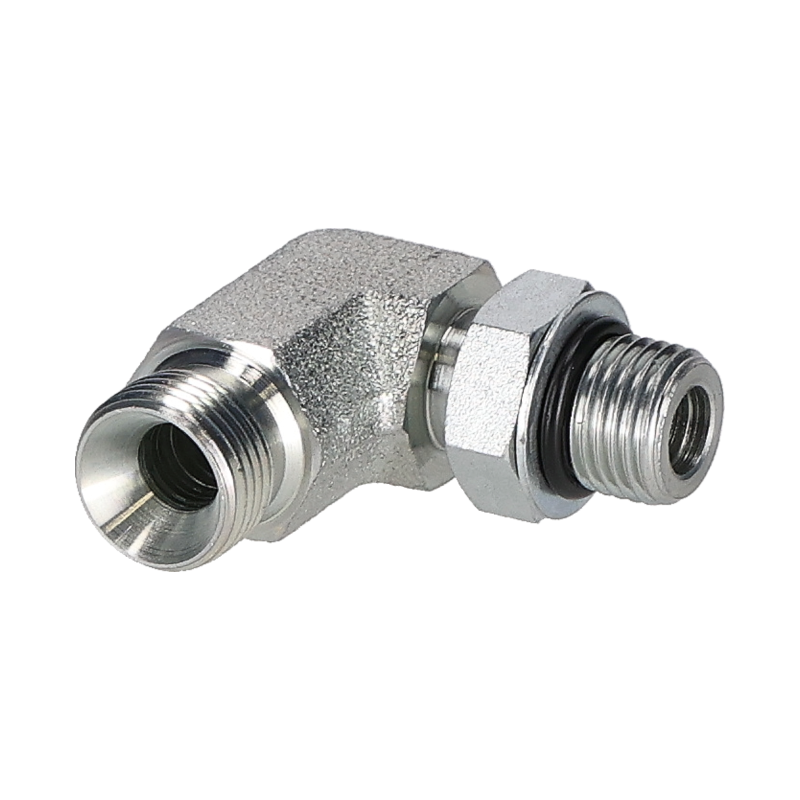

ORIGINAL 90° HYDRAULIC ELBOW FITTING SUITABLE FOR JCB - 816/90548

Specification & Compatibility

Product: Original 90° Hydraulic Elbow Fitting
Producer: JCB
Material: High-grade zinc-plated steel
Application (e.g. in sideshift housing, SRS valves):
JCB Backhoe Loaders

3CX, 4CX

Other JCB Machines

Telescopic Handlers, Wheeled Loaders, JS Excavators, Mini Excavators, Dumpers

Part Number: 816/90548
Part Type: Original JCB Product

Frequently Bought Together

HYPTRON Hydraulic Oil (recommended for JCB systems)
REDX Hydraulic Oil Filter
New Hydraulic Hose (if the old one is damaged or perished)

What does this part do and what are the symptoms of wear?

A hydraulic elbow fitting is a key component connecting hoses to parts like valve blocks, cylinders, or coolers. It allows for safe routing of hoses at a 90-degree angle, preventing kinking and damage. If you notice an oil leak ("sweating" or dripping), visible cracks on the body, or a damaged thread that prevents proper tightening of the hose, these are classic signs of a worn fitting. A leak in the hydraulic system leads to oil loss, reduced performance, and poses a serious risk of pump failure.

Parameters That Guarantee Reliability

⭐

Original JCB Quality

Guaranteed durability and fit

💪

High-Pressure Resistance

Safety and reliability

🎯

Perfect Seal

Protection against oil loss

Why Choose an Original JCB Fitting?

✔Guaranteed Safety

Only original fittings give 100% certainty of withstanding the working pressure, eliminating the risk of a sudden burst and a dangerous high-pressure oil spray.

✔Hydraulic System Protection

Perfectly matched threads and sealing surfaces prevent even the smallest leaks, protecting the pump from running on low oil levels.

✔Peace of Mind and Reliability

Using original parts is the best way to avoid unforeseen breakdowns and costly downtime.

Important Fitting / Service Tips

1.Relieve Hydraulic Pressure

Before loosening any hydraulic component, you must relieve the pressure in the system by moving all controls several times with the engine off.

2.Maintain Absolute Cleanliness

Before removing the old fitting, thoroughly clean the area around it. Even the smallest contaminant entering the system can damage the pump or valve block.

3.Inspect the Hydraulic Hose

When replacing, carefully check the condition of the hydraulic hose end. If it is damaged or corroded, replace the hose with a new one.

4.Use Two Wrenches

When tightening the hose to the elbow, always use two wrenches – one to hold the elbow and one to tighten the hose nut. This prevents damaging the thread and the fitting itself.

Frequently Asked Questions (FAQ)

Question: My fitting is "sweating" oil. Can I just tighten it more?

Answer: This is highly not recommended. The most common cause of leaks are damaged sealing surfaces (cones) or micro-cracks from vibration or overtightening. Overtightening will only damage it further.

Question: Do I need additional seals for installation?

Answer: It depends on the connection type. JIC fittings seal on a metal-to-metal cone. Other types, like BSP, require a seal. Always check if there is a groove for an O-ring in the port where you are screwing the elbow.

Question: Can I use a cheaper replacement?

Answer: The hydraulic system operates under immense pressure. Only original or reputable aftermarket brands (like GX-AFTER, FEROSTEM or REDX) guarantee material strength. Using cheap, non-branded fittings risks them bursting and causing a dangerous high-pressure oil spray.

Question mark

If you are unsure whether the selected product is suitable for your machine, contact us and we will help you choose the right part and provide practical advice in minutes.

JCB
816/90548D
816/90548
0.11 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
ARTICULATED / DUMP TRUCK
BACKHOE LOADER
EXCAVATOR
MINIEXCAVATOR
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
816/90548

Specific References

MPN
816/90548
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Hydro clamp housing elbow suitable for JCB 4CX 3CX

Catalog number: 816/90548D
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

60.89 zł

net price
49,50 zł
Available in large quantity Temporarily unavailable
49,50 zł
net price

60.89 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 5 points, it gives you 2.00 zł
  • Lowest price from 30 days before the discount: 60.89 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    ARTICULATED / DUMP TRUCK
    BACKHOE LOADER
    EXCAVATOR
    MINIEXCAVATOR
    TELESCOPIC HANDLER
    WHEELED LOADER
    Show more
    OEM NUMBERS
    816/90548
