Tooth Ripper suitable for JCB 3CX 4CX / COBRA - 529/03000
HIMACORE

Tooth Ripper suitable for JCB 3CX 4CX / COBRA

Catalog number:SKX819234HMKPL Nr OEM:529/03000 Manufacturer:HIMACORE
Add a review

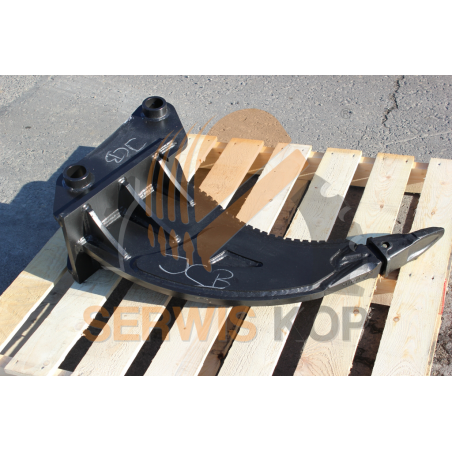

HIMACORE RIPPER (COBRA TYPE, 45/175/340) SUITABLE FOR JCB 3CX, 4CX - 529/03000

Technical Specification and Compatibility

An essential G.E.T. (Ground Engaging Tool) attachment – this is a reinforced COBRA series ripper by HIMACORE. It is designed for the heaviest-duty work on JCB 3CX, 4CX, and compatible mini excavators (e.g., 8085). Its purpose is to precisely break up and loosen hard surfaces, such as frozen or compacted earth, concrete, asphalt, or fracturable rock. The COBRA design ensures maximum penetration. A key feature is the replaceable tooth tip (mounted on an adapter), which radically extends the attachment's service life and reduces running costs.

Part number: 529/03000
Type: Ripper / COBRA Series
Construction: Reinforced
Tooth: Replaceable tip on adapter
Pin Diameter: 45 mm
Dipper Width: 175 mm
Pin Centers: 340 mm

HIMACORE specializes in providing the highest quality hydraulic parts for construction machinery. Our products, such as hydraulic pumps, motors, and valves, are designed for maximum performance and reliability in the toughest working conditions. By choosing HIMACORE, you are investing in the precision, durability, and operational certainty of your machine's hydraulic system.

Essential for Installation & Service

  • › Mounting Pins (45 mm): For mounting the ripper to the dipper arm or quickhitch.
  • › Replacement Tooth Tip: Required when the current tip is worn.
  • › Tooth Retainer: Pin and lock for mounting the tip onto the adapter.

Application in machines

Brand Type / Series / Model
JCB Backhoe Loaders: 3CX, 4CX, 5CX
Mini/Midi Excavators: 8052, 8055, 8060, 8065, 8085, 65R, 67C, 85Z, 86C, 90Z, 100C

The list above is for reference. The 45/175/340 hitch dimensions match the standard JCB 3CX/4CX fitment (pin-on or quickhitch).

⚠️ Safety Warning

Ripper operation generates extreme forces and vibration. Never use the ripper for side-loading (twisting), as this can cause the tooth adapter or the ripper shank to fracture. Before installation, ensure the machine is on stable ground and the attachment is resting on the ground.

Part's Role in the Machine and Failure Diagnostics

A ripper is an attachment designed to penetrate and break up hard, difficult-to-dig materials (frozen ground, asphalt, compacted soil) that cannot be efficiently removed by a standard bucket. It is essential for preparatory work.

  • › Worn or cracked tooth tip (the replaceable wear part).
  • › Worn adapter nose (the new tooth tip is loose or "rocks").
  • › Fatigue cracks on the ripper body, especially at welds or near the hitch.
  • › Ovalization ("egging") of the pin holes (causing slop on the quickhitch).

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Replace the Tip: Regularly inspect the tooth tip. Replace it *before* the wear reaches the adapter. Working with a worn tip will destroy the adapter itself.
  2. New Retainers: Always use a new pin and retainer set when changing the tooth tip.
  3. Operating Technique: The ripper is designed for a linear "pulling" motion. Avoid side-loading or twisting the attachment while in the ground, as this creates lateral forces it was not designed for.
  4. Grease: Before mounting the ripper to the machine, lubricate the mounting pins (e.g., with HYPTRON grease) to facilitate future removal.

Frequently Asked Questions (FAQ)

1. What is the difference between a ripper and a bucket?

A ripper concentrates all of the machine's breakout force onto a single, reinforced point to penetrate hard ground. A bucket distributes that force along a wide cutting edge and is designed to scoop and carry material.

2. Will this ripper fit my JCB quickhitch?

Yes. The hitch dimensions (45mm pins, 175mm arm width, 340mm pin centers) are the standard size for JCB 3CX and 4CX backhoe attachments. It will fit both traditional pin-on mounting and the JCB quickhitch.

3. Can I replace just the tip (tooth)?

Yes. That is the main advantage of this model. The ripper has a welded-on adapter, which accepts a standard, replaceable tooth tip (e.g., J300 or J350 system, depending on the adapter) held on by a pin and retainer.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX819234HMKPL
529/03000
100.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
MINIEXCAVATOR
OEM NUMBERS
529/03000
PINS (MM)
45
ARM WIDTH (MM)
175
SPACING OF THE PINS (MM)
340

Specific References

MPN
529/03000
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Tooth Ripper suitable for JCB 3CX 4CX / COBRA

Catalog number: SKX819234HMKPL
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

3,049.17 zł

net price
2479,00 zł
Temporarily unavailable
2479,00 zł
net price

3,049.17 zł

gross price
  • You will receive 248 points, it gives you 99.20 zł
  • Lowest price from 30 days before the discount: 3,049.17 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    MINIEXCAVATOR
    OEM NUMBERS
    529/03000
    PINS (MM)
    45
    ARM WIDTH (MM)
    175
    SPACING OF THE PINS (MM)
    340
