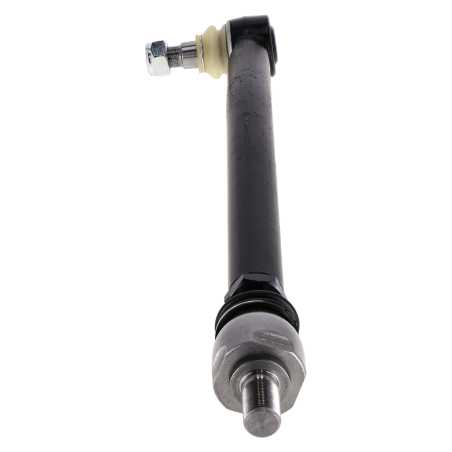

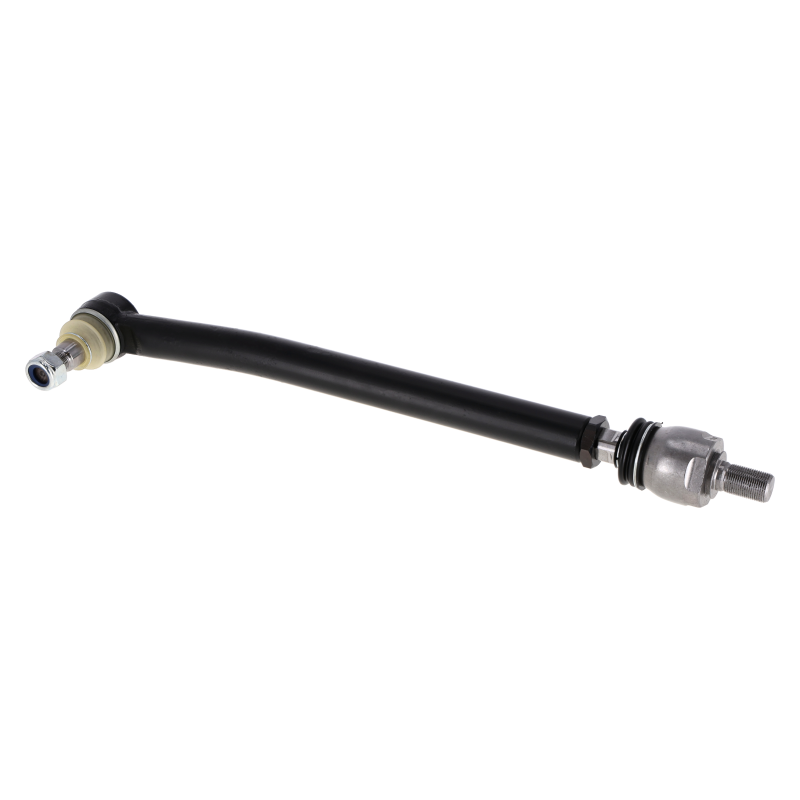

Product: Steering Tie Rod (Rod-Tie)
Part Number: 9R2842 / 9R-2842
Installation Side: Left (LH)
Application: Steering axle
Designed for the steering axle in CATERPILLAR backhoe loaders, including models 416B, 428B and 438B, this steering tie rod is an essential component of the steering system. It ensures smooth operation of the left axle assembly and provides precise connection and control between the steering mechanism and the wheel knuckle.
Function of the Part & Failure Diagnostics
The steering tie rod is a rigid linkage connecting the hydraulic steering cylinder to the wheel knuckle. It transfers steering force from the cylinder, allowing the wheel to turn accurately. This component is critical for steering precision, machine stability, and operator safety.
Common signs of wear or failure include:
Application in machines
|
Brand
|
Type / Series / Model
|
|
CATERPILLAR |
416, 416B, 426, 426B, 428, 428B, 436, 436B, 438, 438B |
The list above is for reference. We recommend verifying the part number on your old tie rod before purchasing.
⚠️ Safety Warning
The steering system is a critical safety system. A damaged or incorrectly installed steering tie rod can result in complete loss of control of the machine. After any work on the steering system, wheel alignment (toe-in/toe-out) must be checked and properly adjusted.
Data sheet
Specific References
Manufacturer
Responsible person






Designed for the steering axle in CATERPILLAR backhoe loaders, including models 416B, 428B and 438B, this steering tie rod is an essential component of the steering system. It ensures smooth operation of the left axle assembly and provides precise connection and control between the steering mechanism and the wheel knuckle.
