Link trackrod suitable for CASE 695 / NEW HOLLAND 115
TORS

Link trackrod suitable for CASE 695 / NEW HOLLAND 115

Catalog number:SKX860222T Nr OEM:85807974 Manufacturer:TORS
Add a review

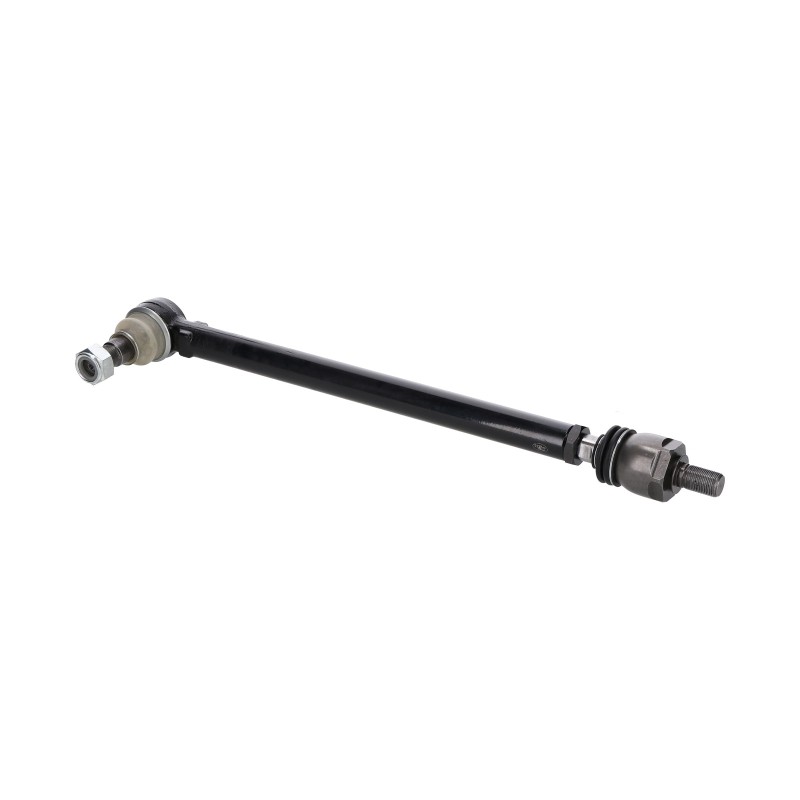

Steering Tie Rod (618mm) suitable for CASE 695 NH LB115 - 85807974

Technical Specification and Compatibility

Complete 85807974 steering tie rod assembly from the TORS brand range. This is a long rod (618 mm) dedicated to heavy equal-sized wheel backhoe loaders: CASE 695 and New Holland LB115 / B115. The rod features a robust 34 mm diameter tube and M24x1.5 adjustment threads. Terminated with joints having different cone sizes (27.10 mm and 30.80 mm).

Part Number: 85807974
Type: Complete Steering Tie Rod
Total Length: 618 mm
Tube Diameter (Shaft): 34 mm
Threads: M24x1.5
Cone Dimensions: 27.10 mm / 30.80 mm
Manufacturer: TORS

TORS specializes in manufacturing reinforced suspension and steering components. This brand's rods undergo rigorous fatigue testing, ensuring their reliability in 4-wheel steer (4WS) machines.

Features of TORS 85807974 Rod

618mm Length: Specific dimension adapted to wide Carraro steering axles used in equal-wheeled CASE/NH machines.
Different Cones: The rod has asymmetrical ends (27.1mm and 30.8mm), preventing incorrect installation in the knuckle-cylinder system.
Robust Profile: 34mm diameter tube made of alloy steel is resistant to bending, common in machines working in heavy terrain.
Precise Adjustment: M24x1.5 threads allow for accurate wheel alignment, which is crucial for machines achieving high transport speeds.

Application in machinery

Brand Models (Equal Wheel Machines)
CASE 695 Super R, 695 Super M, 695 ST
New Holland LB115, LB115.B, B115, B115B
Fiat-Kobelco B200, FB200.2 (check dimensions)

The rod fits specific steering axles. Before purchase, be sure to verify the length (618 mm) and cone dimensions.

Related Parts and Hardware

The rod is supplied as a complete unit with joints. Installation requires castle nuts with cotter pins (or self-locking nuts). When replacing the rod, we recommend checking for play on the knuckle bearings.

⚠️ Safety Warning

Equal-wheel machines (4WS) have complex steering systems. Play in the rods causes instability at high speeds ("wandering") and malfunction of steering modes (e.g., crab steer). Replace worn rods immediately.

Part Role in the Machine and Failure Diagnostics

Rod 85807974 connects the steering cylinder (inside or on the axle) to the knuckle, transferring the force necessary to turn the wheels.

  • › Knocking when changing direction (play on ball studs).
  • › Tire scrubbing (misalignment caused by wear or bent rod).
  • › Damaged rubber boots (sand ingress).
  • › Visible bending of the rod tube.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Length Measurement: This rod is 618 mm. Equal-wheel machines use different lengths depending on the year and axle. Measure the old rod (total length).
  2. Cone Verification: The rod has different cones at the ends (27.1 vs 30.8 mm). Check which end goes to the cylinder and which to the knuckle to avoid damaging the seats.
  3. Alignment: After replacing the rod, wheel alignment is mandatory. 4WS machines are very sensitive to geometry errors.

Frequently Asked Questions (FAQ)

Is the rod adjustable?

Yes, it has a threaded end (on M24 thread), allowing length adjustment and wheel alignment.

Does it fit CASE 580?

Typically not. CASE 580 has smaller front wheels and a different steering system. This rod (618mm) is typical for large equal-wheel machines (CASE 695).

Why are the cones different?

Different cone diameters (27.1 mm and 30.8 mm) serve to uniquely determine the installation direction (knuckle vs cylinder), preventing installation errors.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX860222T
85807974
6.40 kg

Data sheet

SUITABLE FOR
CASE
NEW HOLLAND
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
85807974

Specific References

MPN
85807974
