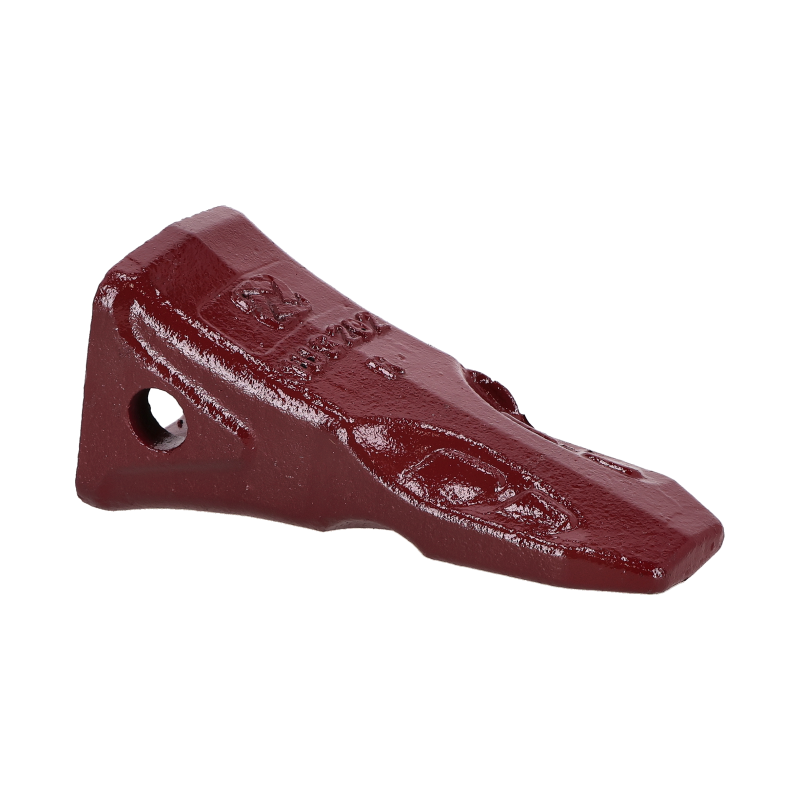

Tooth Bucket - J200 R - LONG TIP SHARK
GX-AFTER

Tooth Bucket - J200 R - LONG TIP SHARK

Catalog number:SKX975087R Nr OEM:1U3202R Manufacturer:GX-AFTER
Add a review

CAT J200 Rock Chisel Bucket Tooth (fits CAT 428 305) - 1U3202R

Technical Specification and Compatibility

High-grade 1U3202R bucket tooth (tip) by GX-AFTER, designed for the CAT J200 system. This is a Rock Chisel profile tooth, reinforced with a central rib. Engineered for use in tough conditions where high penetration and abrasion resistance are required. Fits a wide range of Caterpillar machines: mini excavators, backhoe loaders, and compact wheel loaders.

Part Number: 1U3202R
Tooth System: CAT J200 (side pin)
Type: Rock Chisel / Long Tip Shark
Hardness: 48-52 HRC
Impact Strength: ≥ 20J

GX-AFTER is the smart choice for your machine. We provide high-class investment cast (lost wax) replacements that combine excellent quality with an attractive price. Each part is carefully verified and heat-treated.

Advanced Features of 1U3202R Tooth

Rock Chisel Profile: Chisel-like shape with a central rib ensures excellent penetration in hard ground and high resistance to breakage.
Self-Sharpening: Tooth design with recesses helps maintain a sharp leading edge as the material wears down.
J200 Versatility: Standard side pin mounting makes the tooth suitable for a vast number of compact and medium machines.
Structural Durability: Low alloy steel hardened to 52 HRC guarantees long service life even under medium impact loads.

Application in CAT machinery

Machine Type Models / Series
Mini Excavators 302.7, 303, 303.5, 304, 305, 305.5, 306, 307, 308, 309, 310 (C, CR, D, E, E2 series)
Backhoe Loaders 415, 416, 420, 422, 424, 426, 427, 428, 430, 432, 434, 436, 438, 440, 442, 444 (B, C, D, E, F, F2 series)
Tracked Excavators 205, 206, 211, 212, 311, 312, 313, 320 (smaller buckets)
Wheel Loaders 906, 907, 908, 910, 914, 918, 920 (F, G, H, K, M series)
Skid Steer Loaders 226, 232, 236, 239, 242, 246, 249, 257, 259, 262, 272, 279, 289, 299 (D3 series)
Other Machines Dozers (D3, D4, D5), Track Loaders (931, 933, 935, 939), Graders (120, 135, 140)

The model list is for reference. The tooth fits any bucket equipped with CAT J200 system adapters.

Related Parts and Hardware

Note: price is for the tooth tip only. Installation in the J200 system requires a retainer set consisting of pin 8E6208 and retainer 8E6209 (or equivalents). These must be purchased separately.

⚠️ Safety Warning

Operating teeth until they are completely worn (exposing the adapter) risks irreversible damage to the adapter socket. Replacing welded-on adapters is costly and time-consuming. Regularly check tooth wear.

Part Role in the Machine and Failure Diagnostics

The 1U3202R (J200) tip is the primary bucket tool responsible for ground penetration.

  • › Blunt tip (reduced digging efficiency).
  • › Worn through to adapter pocket (requires immediate replacement).
  • › Connection play (worn retainers).
  • › Lost tooth in the trench.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. System ID: J200 is a small CAT system. The pin diameter is about 11mm. If your pin is thicker (14mm), you have the J250 system.
  2. Cleaning: Always remove packed dirt from the adapter nose before installing a new tooth to ensure full seating.
  3. New Hardware: Never reuse an old retaining ring. Metal fatigue can cause it to fall out, leading to tooth loss.

Frequently Asked Questions (FAQ)

What does the "R" at the end mean (1U3202R)?

It stands for Rock (Rock Chisel) profile. It is a tooth reinforced with a rib, designed for harder ground than the standard "Long" (1U3202).
