• Tooth suitable for HIDROMEK
  • Tooth HIDROMEK - 810/10605
Tooth suitable for HIDROMEK
HIMACORE

Tooth suitable for HIDROMEK

Catalog number:SKX987945HM Nr OEM:810/10605 Manufacturer:HIMACORE
Add a review

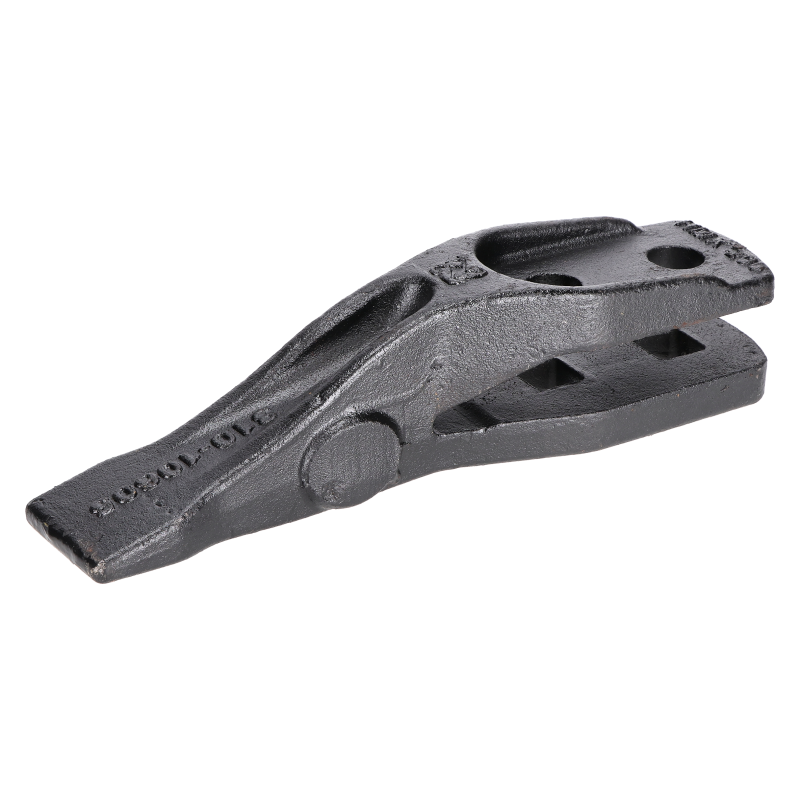

Hidromek Central Bolt-on Tooth (Monoblock) - 810/10605

Technical Specification and Compatibility

High-grade 810/10605 central tooth (tip) by GX-AFTER. This is a monoblock (unitooth) type element, mounted directly to the bucket blade using bolts (Bolt-On system). Designed specifically for Hidromek backhoe loaders (HMK series) and machines utilizing JCB-standard buckets. Made of steel with increased tensile strength (≥1400 Rm-N/mm²), guaranteeing reliability in tough ground.

Part Number: 810/10605
Type: Bolt-on Central Tooth
Design: Monoblock / Unitooth
Hardness: 48-52 HRC
Impact Strength: ≥ 20J
Tensile Strength: ≥ 1400 Rm-N/mm²

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability.

Features of GX-AFTER 810/10605 Tooth

Bolt-on System: Mounting with bolts eliminates the need for welding adapters, allowing for quick and easy replacement of worn elements in the field.
Central Geometry: The symmetrical tooth shape is optimized for working in the central part of the bucket, ensuring even wear and effective penetration.
JCB/Hidromek Standard: Bolt spacing and contact profile are consistent with the standard used in Hidromek HMK machines and many JCB models.

Application in machinery

Brand Machine Type
Hidromek Backhoe Loaders (HMK series, e.g., 102B, 102S)
Others Machines with "JCB Style" Bolt-on buckets

Before purchasing, we recommend checking the bolt spacing and blade thickness on your bucket.

Related Parts and Hardware

The tooth is mounted using plow bolts with nuts (usually 2 per tooth). We recommend replacing the bolts with new ones (min. hardness class 10.9) with every tooth installation.

⚠️ Safety Warning

Working with loose tooth bolts leads to ovalization of the holes in the bucket blade. A damaged blade requires costly regeneration. Regularly check bolt torque.

Part Role in the Machine and Failure Diagnostics

The central tooth 810/10605 is the primary element penetrating the ground and protecting the bucket's base edge from wear.

  • › Blunt tip (digging difficulty, higher fuel consumption).
  • › Crack at holes (too loose or too tight tightening).
  • › Tooth play (stretched bolts).
  • › Tooth completely worn down to the blade line.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Surface Cleanliness: Before bolting the tooth, clean the bucket blade of rust and dried soil. Unevenness can cause the tooth to crack when tightened.
  2. New Bolts: Always use new plow bolts. Old bolts are often stretched and may snap under load.
  3. Symmetry: The central tooth is symmetrical. It can be mounted anywhere on the straight part of the blade (except corners).

Frequently Asked Questions (FAQ)

Does the tooth fit on the bucket corner?

No. Central teeth have a straight side profile. Corner teeth (left and right) are profiled to protect the bucket cheeks and should be used on corners.

Is an adapter needed?

No. The 810/10605 tooth is a so-called "Unitooth" (Monoblock). It bolts directly to the drilled bucket blade, without an intermediate adapter.

Are bolts included?

Standardly, teeth are sold without bolts. Plow bolts with nuts must be purchased separately, matching their length to the blade thickness.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX987945HM
810/10605
2.60 kg

Data sheet

SUITABLE FOR
HIDROMEK
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
810/10605
CUTTING EDGE THICKNESS
20,5
BOLT SPACING
49

Specific References

MPN
810/10605
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Tooth suitable for HIDROMEK

Catalog number: SKX987945HM
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

46.11 zł

net price
37,49 zł
Available in large quantity Temporarily unavailable
37,49 zł
net price

46.11 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 4 points, it gives you 1.60 zł
  • Lowest price from 30 days before the discount: 46.11 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    HIDROMEK
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    810/10605
    CUTTING EDGE THICKNESS
    20,5
    BOLT SPACING
    49
