Tooth universal for blade 27mm - E11.7
GX-AFTER

Tooth universal for blade 27mm

Catalog number:NX-40.1 Nr OEM:NX-40.1 Manufacturer:GX-AFTER
Add a review

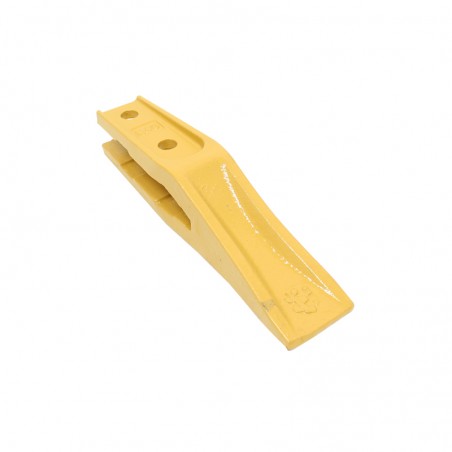

Universal Bolt-on Tooth (27mm Blade / 2 holes) - NX-40.1

Technical Specification and Compatibility

A high-quality NX-40.1 universal bolt-on excavator tooth by GX-AFTER. This is a heavy-duty, monoblock internal (central) tooth designed for mounting on blades with a thickness of 27 mm. Ideal for medium-sized excavators, loaders, and backhoe loaders. Mounted using two bolts, allowing for quick and easy replacement without welding.

Part Number: NX-40.1
Alternative Number: E40.1
Type: Bolt-on Tooth / Internal (Central)
Blade Thickness (S): 27 mm
Hole Spacing (I): 70 mm (center-to-center)
Weight: 3.7 kg

GX-AFTER is the smart choice for your machine. We provide high-class drop-forged replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability.

Features of the NX-40.1 Tooth

Robust Construction: Heavy-duty tooth weighing 3.7 kg, designed for tougher conditions than its smaller counterparts.
Universal Mounting: Fits any straight blade with a thickness of 27 mm and holes spaced at 70 mm.
High Strength: Forged steel ensures resistance to breakage and abrasion, extending bucket life.
Quick Replacement: Bolt-on system allows for tooth replacement directly on site using standard wrenches.

Application in machinery

The NX-40.1 (E40.1) tooth is universal and fits many types of medium-sized construction machines:

  • › Backhoe loaders (front and rear buckets)
  • › Midi excavators (over 5 tons)
  • › Smaller wheel loaders
  • › Grading and general-purpose buckets

It is critical to check the blade thickness (27 mm) and hole spacing (70 mm) on your bucket.

ESTI Type Teeth Reference Table (E40 & E30)

Part No. (ESTI) Spacing (I) [mm] Thickness (S) [mm] Weight [kg]
E 40.1 (NX-40.1) 70 27 3.7
E 30.1 65 22 2.7
E 30.2 65 22 2.7
E 30.3 80 22 2.7
E 30.6 45 22 2.7
E 30.8 90 22 2.7

Related Parts and Hardware

The tooth is supplied as a complete unit ready to bolt on. It requires two plow bolts (usually M16 or larger, depending on the bucket hole) with nuts, which are often included (please confirm upon purchase).

⚠️ Safety Warning

Loosely bolted teeth can damage the bucket blade (elongate holes) or fall off during operation. Regularly check the tightening torque of the tooth mounting bolts.

Part Role in the Machine and Failure Diagnostics

Bolt-on teeth act as a replaceable cutting edge. They protect the permanent bucket blade from wear and facilitate ground penetration.

  • › Dull edge (rounded) - difficult digging.
  • › Tooth fracture at mounting holes (result of loose bolts).
  • › Tooth worn down to the blade (risk of bucket damage).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Measure Spacing: The most important dimension is the hole spacing on the blade. For this tooth, it must be 70 mm.
  2. Clean Blade: Before bolting on the new tooth, thoroughly clean the blade surface of rust and dried soil so the tooth sits flush.
  3. New Bolts: Always use new plow bolts of the appropriate strength class (min. 10.9) and self-locking nuts.

Frequently Asked Questions (FAQ)

How does tooth E40.1 differ from E30.1?

They differ in mounting hole spacing and blade thickness. E40.1 has a 70 mm spacing and fits a 27 mm blade. E30.1 has a 65 mm spacing and fits a 22 mm blade.

What is an "internal" (central) tooth?

It is a tooth mounted in the middle part of the blade, between the corner teeth. It has a symmetrical shape and two holes in a single line.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

NX-40.1
NX-40.1
3.70 kg

Data sheet

SUITABLE FOR
ATLAS
BOMAG
CASE
CAT
CLAAS
DAEWOO
DOOSAN DAEWOO
FERMEC
FIAT HITACHI
HIDROMEK
HITACHI
JOHN DEERE
KOBELCO
MASSEY FERGUSON
TEREX
VOLVO
MACHINE TYPE
BACKHOE LOADER
WHEELED LOADER
OEM NUMBERS
NX-40.1
CUTTING EDGE THICKNESS
27
BOLT SPACING
70

Specific References

MPN
NX-40.1
