Manifold stud suitable for JCB
GX-AFTER

Manifold stud suitable for JCB

Catalog number:SKX051899A Nr OEM:02/291003 Manufacturer:GX-AFTER
Add a review

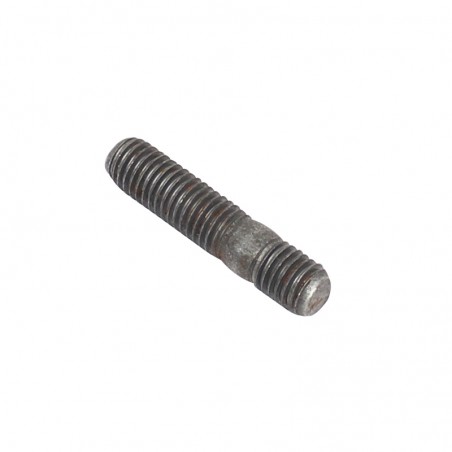

EXHAUST MANIFOLD STUD SUITABLE FOR JCB 3CX, 4CX (PERKINS) - 02/291003

Technical Specification and Compatibility

A high-tensile, double-ended stud designed for mounting the exhaust manifold to the cylinder head. Made of steel with increased resistance to extreme temperature cycles and vibrations, it ensures a secure and durable connection. It is a key element for maintaining the integrity of the exhaust system and proper engine performance.

Part number: 02/291003
Compatible engine: Perkins (1000 series, e.g., AK, AR)

Aftermarket quality product – an intelligent choice combining excellent quality with an attractive price.

Application in machines

Brand (Machine Type) Model
JCB (Backhoe Loaders) 2CX, 3CX, 4CX (with Perkins engines, manufactured before approx. 2005)
JCB (Telehandlers) Loadall (models with Perkins engines, e.g., 520, 525, 530, 540)
JCB (Wheel Loaders) 407, 408, 409, 411, 412, 416
JCB (Various Machines) JS Excavators, Fastrac Tractors, Forklifts, ROBOT (with Perkins 1000 Series engines)

The list above is for reference. It is crucial to ensure that your machine is fitted with a Perkins engine.

Service Recommendation: Ensure Maximum Lifespan

Working on the exhaust manifold is an ideal time for a comprehensive service. Always install the manifold with a new gasket. To prevent the nuts from seizing in the future, which is a mechanic's nightmare, coat the stud threads with HYPTRON copper anti-seize compound before installation.

Part's Role in the Machine and Failure Diagnostics

Exhaust manifold studs maintain a tight seal between the manifold and the cylinder head, operating under extreme conditions of constant temperature changes. The failure or breakage of even one stud leads to a leak, which is not only noisy but also dangerous.

Replace the studs if you notice the following symptoms:

  • A loud "ticking" or "puffing" noise from the engine area, especially when the engine is cold and under load.
  • The smell of exhaust fumes in the engine bay or operator's cabin.
  • Visible soot tracks at the junction of the manifold and the cylinder head.
  • A cracked or broken stud, often discovered during other repairs.

Peace of Mind Guarantee: Why Choose Our Offer?

✓ Do it Once, Do it Right: The GX-AFTER Solution

Reusing old, stretched, and heat-cycled studs is a direct path to a repeat failure and another disassembly. GX-AFTER studs are a smart choice that ensures your exhaust system repair is durable. Made of high-strength steel, they provide a secure manifold clamp for years to come.

Annoyed by the noise and exhaust smell? Don't ignore a leak!

A leaking manifold can lead to damage to its surface or even the cylinder head. Order a new set of studs and gaskets today and restore quiet and safe operation to your engine!

Expert's Guide: Key Installation Tips

  1. Replace as a set: If one stud has failed, the others are just as fatigued. Always replace all manifold studs with new ones.
  2. Clean the threads in the head: Before installing new studs, thoroughly clean the threaded holes in the cylinder head using an appropriate thread tap.
  3. Check manifold for flatness: A warped or cracked manifold is a common cause of broken studs. Check its surface before installation.
  4. Tighten from the center outwards: Tighten the nuts on the studs with a torque wrench, in several stages and in a sequence from the center studs outwards.

Frequently Asked Questions (FAQ)

1. What should I do if the old stud broke off in the cylinder head?

This is a difficult situation that requires precision. You should use special stud extractors or, as a last resort, drill it out and re-tap the hole. It is a job best left to an experienced mechanic.

2. Are nuts included in the set?

No, this offer is for the stud itself. We always recommend using new, high-temperature nuts, which are available separately.

Key Advantages

🛡️

System Sealing

Prevents exhaust blows and fumes.

🎯

High Strength

Resistant to high temperatures and vibrations.

📦

Secure Mounting

Guarantees proper manifold clamping force.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX051899A
02/291003
0.02 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
EXCAVATOR
FASTRAC
FORKLIFT
ROBOT
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
02/291003
ENGINE
PERKINS

Specific References

MPN
02/291003
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Manifold stud suitable for JCB

Catalog number: SKX051899A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

4.05 zł

net price
3,29 zł
Available in large quantity Temporarily unavailable
3,29 zł
net price

4.05 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 1 points, it gives you 0.40 zł
  • Lowest price from 30 days before the discount: 4.05 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    EXCAVATOR
    FASTRAC
    FORKLIFT
    ROBOT
    TELESCOPIC HANDLER
    WHEELED LOADER
    Show more
    OEM NUMBERS
    02/291003
    ENGINE
    PERKINS
