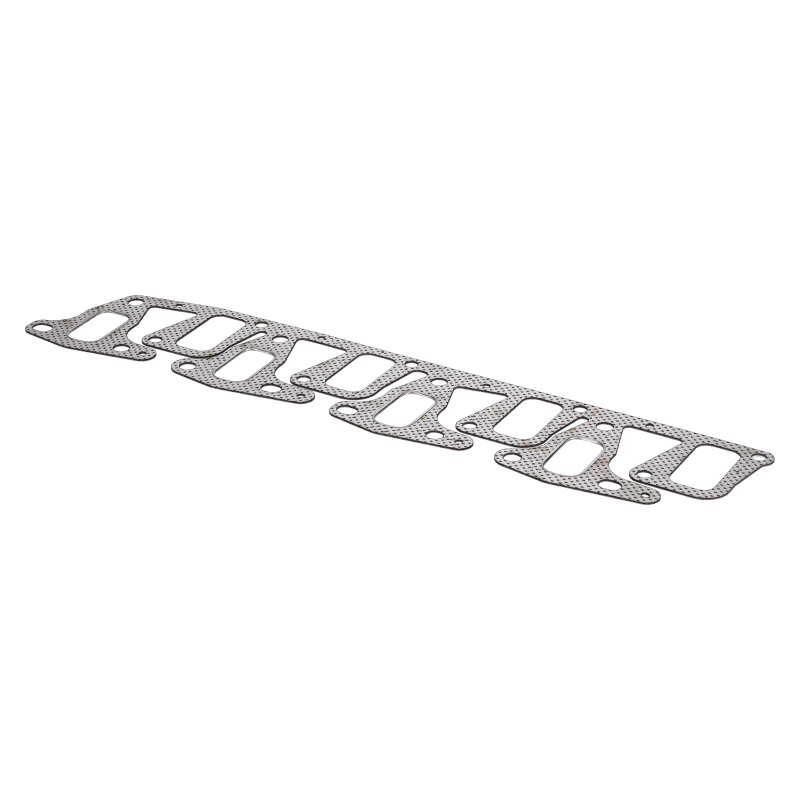

Manifold gasket suitable for JCB - PERKINS AR engine
VICORTEX

Manifold gasket suitable for JCB - PERKINS AR engine

Catalog number:SKX1019179VX Nr OEM:02/201836 Manufacturer:VICORTEX
Add a review

INTAKE & EXHAUST MANIFOLD GASKET SUITABLE FOR JCB - 02/201836

Specification & Compatibility

Product: Intake & Exhaust Manifold Gasket
Producer: NEXGEN
Material: Multi-Layer Steel (MLS) with graphite composite
Application (Naturally Aspirated Perkins AS, AR engines):
JCB Backhoe Loaders

3CX, 4CX

Other JCB Machines

Wheeled Loaders

Part Number: 02/201836
Replaces Perkins Part Numbers: 3681V012, U3681V012
Part Type: Premium high-quality replacement

Essential for Installation

New Manifold Studs and Nuts (always recommended)
Exhaust Pipe Gasket
HYPTRON Engine Oil and complete REDX Filter Kit (for a comprehensive service)

What does this part do and what are the symptoms of wear?

The manifold gasket is a crucial seal between the cylinder head and the intake/exhaust manifolds. Its job is to prevent exhaust leaks and to stop unmetered air from being sucked into the intake system. If you hear a loud "chuffing" sound from the engine bay, smell exhaust fumes in the cab, the engine has lost power and runs rough, or you see black soot marks around the manifold, these are classic symptoms of a blown gasket. An intake leak disrupts the air-fuel ratio, while an exhaust leak can risk damage to the valves.

Parameters That Guarantee Reliability

🔥

High-Temperature Resistance

Long life, no burnouts

🛡️

Perfect Sealing

Protection against exhaust leaks

🎯

Perfect Fit

Guaranteed hassle-free installation

Why Choose a NEXGEN Gasket?

✔Precise Manufacturing

The accuracy and quality of materials guarantee long and trouble-free use without the need for frequent replacement.

✔Compatibility with Original Parts

The gasket is fully adapted to work with original manifolds, ensuring a consistent and reliable repair.

✔Savings Without Compromise

The NEXGEN brand is a proven and safe alternative that offers quality comparable to original parts at a much better price.

Important Fitting / Service Tips

1.Check Manifold for Warpage

Before installing a new gasket, you must check the flatness of the manifold with a straight edge. A warped or cracked manifold will instantly destroy a new gasket.

2.Clean Both Surfaces Thoroughly

Carefully remove all old gasket material and carbon deposits from the cylinder head and the manifold. A clean, smooth surface is crucial for a good seal.

3.Always Use New Studs or Nuts

Old studs and nuts lose their properties due to heat cycles. Always use new ones to ensure correct clamping force.

4.Use a Torque Wrench

Tighten the manifold nuts in several stages and in the correct sequence (usually from the center outwards), using a torque wrench.

Frequently Asked Questions (FAQ)

Question: My engine is loud. Is this gasket the cause?

Answer: Yes, this is the main symptom. A loud, "chuffing" noise, especially on a cold engine, indicates a leak at the exhaust manifold.

Question: Can I reuse the old gasket?

Answer: Absolutely not. This is a single-use gasket. It deforms permanently during installation and will not provide a seal a second time.

Question: Why did my new gasket blow out quickly?

Answer: The most common reason is installing it on a warped manifold that has been distorted by heat. You must always check for flatness before installing a new gasket.

Question mark

If you are unsure whether the selected product is suitable for your machine, contact us and we will help you choose the right part and provide practical advice in minutes.

SKX1019179VX
02/201836
0.16 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
ROBOT
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
02/201836 / 3681V012 / U3681V012 / 983-804 / 934-944
ENGINE
PERKINS

Specific References

MPN
02/201836
