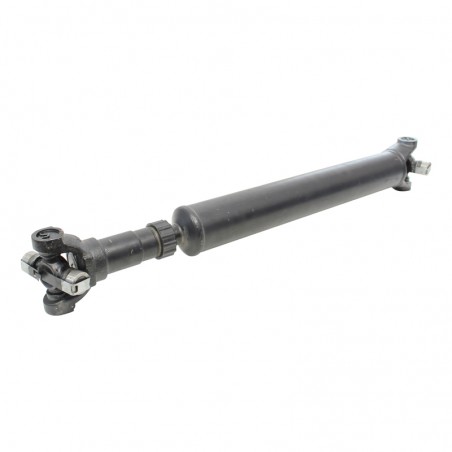

Front drive shaft / suitable for CAT 428F
GX-AFTER

Front drive shaft / suitable for CAT 428F

Catalog number:3590373A Nr OEM:359-0373 Manufacturer:GX-AFTER
Add a review

Front Drive Shaft 793mm for CAT 428F 432F - 3590373

Technical Specification and Compatibility

High-quality 3590373 front drive shaft from the GX-AFTER range. This is a drivetrain component with a total length of 793 mm (31.22 inches), dedicated to Caterpillar (CAT) F and F2 series backhoe loaders. The shaft connects the transmission to the front drive axle. The design includes two universal joints and an integrated slip member to compensate for length changes.

Part Number: 3590373
Purpose: Front Drive Shaft
Total Length: 793 mm (31.22 in)
Swing Diameter: 125.5 mm (4.94 in)
Design: With Slip Member
Equipment: Greaseable U-joints
Manufacturer: GX-AFTER

GX-AFTER products are proven replacements that undergo dynamic balancing tests. This ensures vibration reduction and protection of bearings in the machine's drivetrain.

Features of GX-AFTER 3590373 Shaft

793mm Length: Specific shaft dimension, distinguishing it from shorter versions used in other transmission configurations (e.g., Powershift).
Motion Compensation: Built-in slip member allows the shaft to work flexibly with the movement of the front axle on the center pivot.
Durable U-Joints: The use of high-class needle bearings ensures smooth torque transmission without play or knocking.
Flange Standard: 125.5 mm connection diameter guarantees a perfect fit to the transmission output and axle input.

Application in CAT machinery

Machine Type Models / Series
Backhoe Loaders 416F, 416F2, 420F, 420F2, 422F, 427F2, 428F, 428F2, 430F, 432F, 432F2, 434F, 444F

The front shaft comes in different lengths depending on the transmission type (Manual vs Powershift). Be sure to measure the old shaft (793 mm compressed).

Related Parts and Hardware

We recommend using new mounting bolts of appropriate hardness class for installation. Regular grease maintenance of U-joints and the slip member is also required.

⚠️ Safety Warning

Driving with a shaft that has play in the U-joints or spline risks its breakage. A broken front shaft can damage the engine oil pan, hydraulic lines, or transmission housing, generating huge costs.

Part Role in the Machine and Failure Diagnostics

Shaft 3590373 is responsible for driving the front axle, crucial in rough terrain.

  • › Strong vibrations (shaft runout, worn U-joint bearings).
  • › Metallic clunks when starting (play on spline).
  • › Rust around U-joint caps (lack of lubrication, seizure).
  • › Shaft tube damage (dents, bending).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Length Measurement: This model is 793 mm long. Shorter shafts (approx. 726 mm) exist for other transmissions. An error in selection will prevent installation. Measure the old shaft in the compressed position.
  2. Greasing: The new shaft requires greasing before operation. Pump grease into the U-joints and sliding connection until fresh grease appears.
  3. Flange Cleanliness: Before bolting, clean the contact surfaces on the transmission and axle from rust and dirt to avoid shaft runout.

Frequently Asked Questions (FAQ)

Is the shaft balanced?

Yes, GX-AFTER shafts are factory dynamically balanced to ensure quiet and vibration-free drivetrain operation.

Does it fit Powershift transmission?

Powershift versions typically use a shorter shaft (726 mm, no. 3590381). This shaft (793 mm) is designed for a different configuration (usually manual/Synchro Shuttle). Check the length.

Are U-joints replaceable?

Yes, the shaft design allows for the replacement of just the U-joints in the future, reducing operating costs.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

3590373A
359-0373
8.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
3590373

Specific References

MPN
359-0373
