Front drive shaft - manual suitable for CAT 428C / 432D
FEROSTEM

Front drive shaft - manual suitable for CAT 428C / 432D

Catalog number:SKX978865FM Nr OEM:113-1149 Manufacturer:FEROSTEM
Add a review

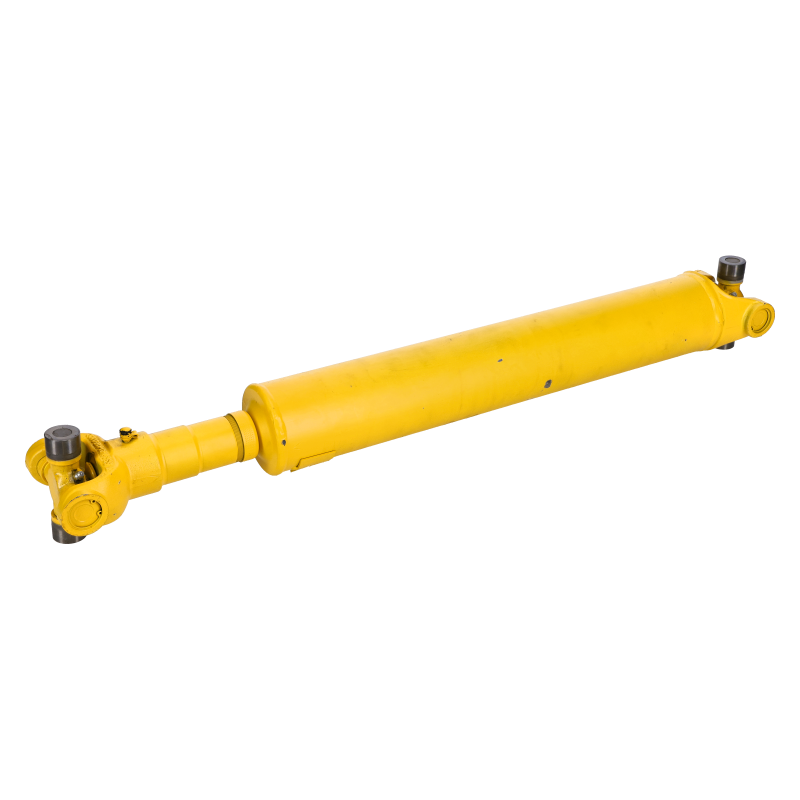

Front Drive Shaft (Manual Trans., L=790mm) suitable for CAT - 1131149

Technical Specification and Compatibility

A high-quality 1131149 front drive shaft (propshaft). This is a complete shaft (including U-joints) designed for CAT C and D series backhoe loaders equipped with a manual transmission. The shaft has a compressed overall length of 790 mm and is responsible for transferring drive from the gearbox to the front axle.

Part Number: 1131149
Type: Front Drive Shaft / Propshaft
Length (L): 790 mm
Transmission Type: Manual

Features of the 1131149 Drive Shaft

Durable Construction: Made from robust materials resistant to twisting and high mechanical forces found in 4WD systems.
Smooth Power Transfer: Factory balanced and fitted with high-quality U-joints for vibration-free operation.
Ready to Install: A complete assembly including the tube, slip yoke, and both universal joints.
Exact Fit: 790 mm length is perfectly matched to manual transmission CAT machines, eliminating risk of damage.

Application in machinery

Brand Transmission Models
Caterpillar (CAT) Manual 416C, 416D, 420D, 424D, 426C, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D

The list above is for reference. It is crucial to verify the transmission type (manual) and old shaft length (approx. 790 mm compressed).

Related Parts and Hardware

When replacing the drive shaft, we recommend checking the condition of the flanges (yokes) on the axle and transmission, and replacing the mounting bolts and U-joint straps.

⚠️ Safety Warning

A damaged front drive shaft (e.g., a broken U-joint) can detach while driving. A spinning, loose shaft can destroy hydraulic lines, the engine oil sump, or other undercarriage components, creating a huge danger and generating costly repairs.

Part Role in the Machine and Failure Diagnostics

The 1131149 drive shaft connects the front drive output from the transmission to the front drive axle. Its job is to transfer power to the front wheels, which is essential for full 4x4 traction in difficult terrain.

  • › Strong vibrations when driving with 4WD engaged (imbalance, U-joint play).
  • › Metallic clunking when starting or changing direction (worn U-joint bearings).
  • › No drive to the front axle despite engaging 4WD (sheared shaft or splines).
  • › Visible play in the slip joint.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Length: Ensure the old shaft is approximately 790 mm long when compressed. Shafts for PowerShift transmissions have a different length.
  2. Lubrication: Grease the slip yoke splines and U-joints (if greaseable) before installation.
  3. New Bolts: We recommend using new bolts and straps to secure the U-joints to the flanges. Torque them correctly.
  4. U-Joint Phase: If the shaft was separated at the slip joint, ensure it is reassembled in the same position (aligned marks) to maintain balance and correct U-joint phasing.

Frequently Asked Questions (FAQ)

I have a CAT 428C with PowerShift. Will this shaft fit?

Probably not. PowerShift transmissions are often different lengths than manual ones, requiring a different length shaft. This shaft (790mm) is dedicated to manual transmissions.

How do I measure the shaft length?

Drive shaft length is typically measured in the fully compressed (shortest) state, from the center of one U-joint to the center of the other U-joint (working length).

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX978865FM
113-1149
8.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
1131149

Specific References

MPN
113-1149
