Tooth Locking Pin ESCO V29 - 510/86204

Technical Specification and Compatibility

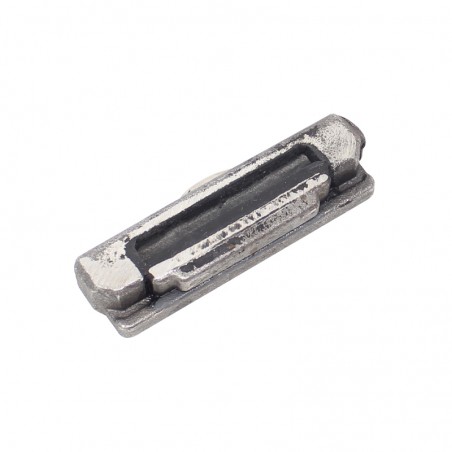

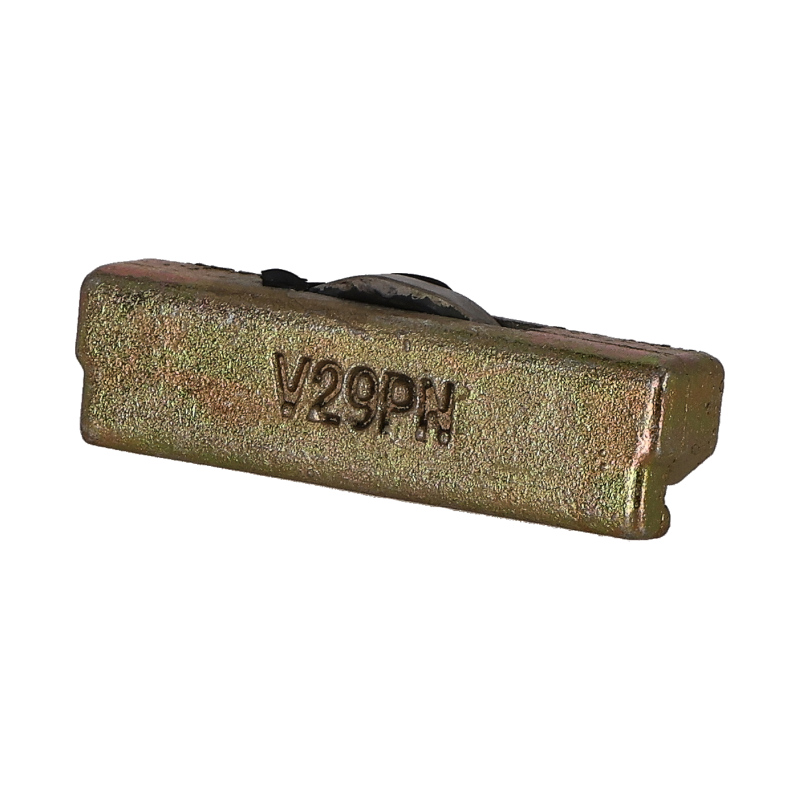

A high-quality 510/86204 locking pin by GX-AFTER. This fastener is designed for the ESCO Super V tooth system in size V29. The pin is 80 mm long and is essential for securely attaching the tooth (point) to the excavator or loader bucket adapter.

We hereby inform that we are not in any way legally or economically affiliated with ESCO Corporation based in Portland (USA), and our use of the ESCO verbal community trademark is solely to indicate the intended purpose of the offered products as replacements.

Part Number: 510/86204
Alternative Numbers: 333/F1399
Type: Tooth Lock / Pin for ESCO System
Tooth System: Super V (size V29)
Length: 80 mm

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Features of the 510/86204 Pin

High Strength: Made from tough, shear-resistant steel to withstand the extreme forces on the tooth during digging.
Precise V29 Fit: Perfectly fits the mounting holes in Super V size 29 adapters and points.
Secure Lock: Special design (often with a rubber or spring insert) prevents the pin from working itself out.
Easy Installation: Designed for quick installation and removal using basic tools.

Application in machinery

System Size Machine Type
ESCO Super V V29 All excavators, backhoes, and loaders equipped with ESCO V29 system adapters.

The pin is universal for the given tooth system, regardless of the machine brand (CAT, JCB, Volvo, Komatsu, etc.) the system is mounted on.

Related Parts and Hardware

The 510/86204 pin is dedicated for mounting V29 series teeth (points) onto matching adapters. We always recommend replacing the pin with a new one every time a tooth is changed.

⚠️ Safety Warning

Using an old, worn, or damaged pin risks losing the tooth during operation. A lost tooth can end up in a crusher or screener, causing serious and expensive damage to this machinery.

Part Role in the Machine and Failure Diagnostics

The 510/86204 lock is a retaining element driven into a special socket connecting the tooth to the adapter. Its job is to keep the tooth in place despite the immense breakout forces and vibrations that occur during digging.

  • › Loose tooth on the adapter (sign of pin or adapter wear).
  • › Pin works itself out during operation.
  • › Visible cracking or deformation of the locking pin.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Size: Ensure you have the V29 system. Other sizes (V23, V33, etc.) require different pins.
  2. Cleanliness: Thoroughly clean the socket in the adapter of dirt and rust before installation.
  3. Installation Direction: Note the correct direction for driving in the pin (following markings on the tooth/adapter).
  4. Single Use: Re-using old pins is not recommended as they lose their locking properties.

Frequently Asked Questions (FAQ)

Is this an original ESCO pin?

No, this is a high-quality replacement by GX-AFTER, fully compatible with the ESCO V29 system. (See legal disclaimer in description).

Does it fit the CAT J system?

No. ESCO Super V and CAT J systems are completely different and use incompatible locking pins.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.
