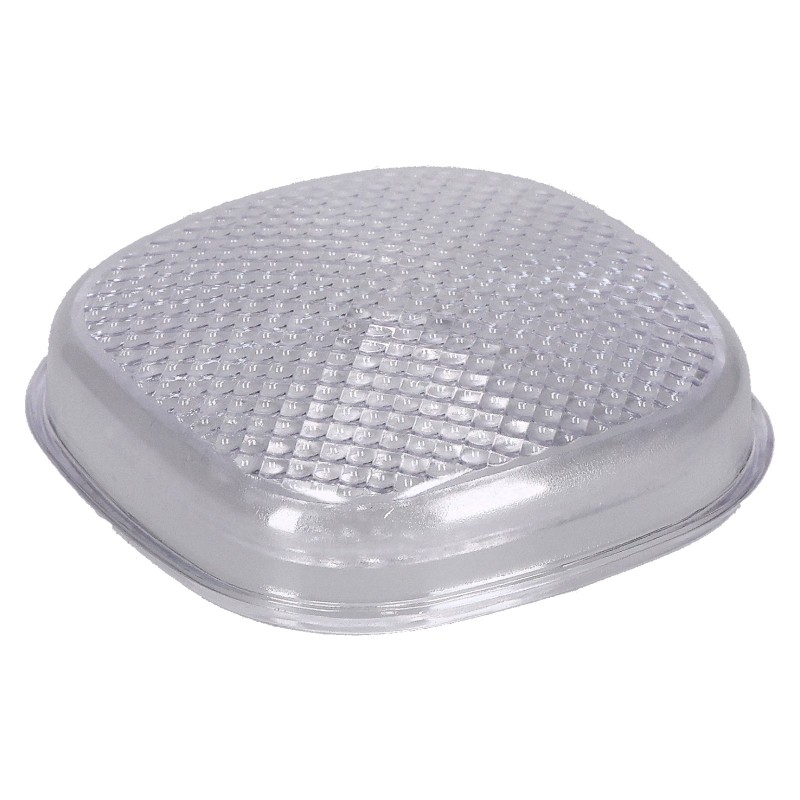

Lens rear - reverse suitable for JCB / CAT telehandlers
GX-AFTER

Lens rear - reverse suitable for JCB / CAT telehandlers

Catalog number:SKX1016688A Nr OEM:700/50074 Manufacturer:GX-AFTER
Add a review

Rear Reverse Light Lens (Clear) suitable for JCB CAT - 700/50074

Technical Specification and Compatibility

Dedicated 700/50074 reverse light lens by GX-AFTER. It is a colorless (clear) optical element, designed for rear combination lamps in JCB machines (Loadall, wheel loaders) and Caterpillar (CAT) equipment. The 104x104 mm lens is part of a modular lighting system, ensuring excellent visibility of the maneuvering zone when reversing.

Part Number: 700/50074
Component Type: Reverse Light Lens
Length: 104 mm
Width: 104 mm
Height (Depth): 28 mm
Color: Clear / White
Shape: Square
Manufacturer: GX-AFTER

GX-AFTER lenses are made of plastic with a Hard Coating, which minimizes scratches and yellowing under UV radiation. As a result, the lens retains crystal clarity, which is crucial for the effectiveness of work/reverse lighting.

Features of GX-AFTER 700/50074 Lens

Maximum Brightness: The clear lens with high light transmittance allows the reverse bulb (21W) to illuminate a large area behind the machine, which is crucial for safety.
Durable Construction: Impact and vibration-resistant plastic protects the bulb and socket from mechanical damage on the construction site.
Tightness: Precise fit of the lens edges to the lamp housing (using a gasket) prevents fogging and contact corrosion.
Versatility: Standard module dimension allows its use in various construction and agricultural machines equipped with this type of combination lamps.

Application in machinery

Brand Models / Series
JCB Telehandlers: 531-70, 535-95, 535-125, 540-140, 540-170, 541-70, 550-80, 560-80, 5.5-21, 5.5-26
Wheel Loaders: 403, 406, 407, 409, 411, 416, 426, 427, 435, 437, 456, 457
Others: TM180, TM220, TM320, TM420
Caterpillar (CAT) Telehandlers: TH220B, TH330B, TH340B, TH350B, TH360B, TH460B, TH560B, TH580B
Wheel Loaders: 950, 950GC, 950L
Rollers: CS-533E, CP-533E, CW-34

The lens is part of a modular lamp. Please check dimensions (104mm square) and color (clear/white).

Related Parts and Hardware

The lens is mounted with screws (not included). When replacing, we recommend checking the condition of the gasket and replacing the 12V 21W bulb (or 24V 21W, depending on installation) to ensure full reverse light efficiency.

⚠️ Safety Warning

A faulty reverse light poses a huge danger on the construction site. Other workers may not notice the reversing machine. Additionally, water entering through a cracked lens can destroy the electrical system.

Part Role in the Machine and Failure Diagnostics

Lens 700/50074 is responsible for protection and emission of reverse light.

  • › No reverse light (burnt bulb, bad contact).
  • › Water inside lens (mechanical crack).
  • › Surface yellowing (poor quality plastic - this model has a protective coating).
  • › Lens falling off (broken screw holes).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Bulb Selection: A 21W single-filament bulb is typically used for the reverse light. Check the voltage in your machine (12V or 24V).
  2. Tightening: Tighten screws with feeling. Too much force can cause the new lens to crack at the corners.
  3. Gasket: Always check the gasket condition. If it is perished, use a new one or silicone to prevent lamp fogging.

Frequently Asked Questions (FAQ)

Does it fit left and right sides?

Yes, lenses in modular lamps are typically symmetrical and universal. Can be mounted on both sides.

Is this the complete lamp?

No, the offer applies to the lens (plastic clear part) only. Housing and other modules (indicator, stop) are not included.

Can this be an indicator lens?

No, the indicator lens is amber (no. 700/50073). This lens is white and serves as a reverse or work light.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX1016688A
700/50074
0.10 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
700/50074

Specific References

MPN
700/50074
