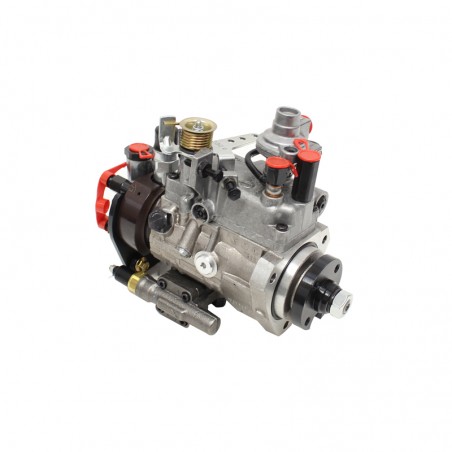

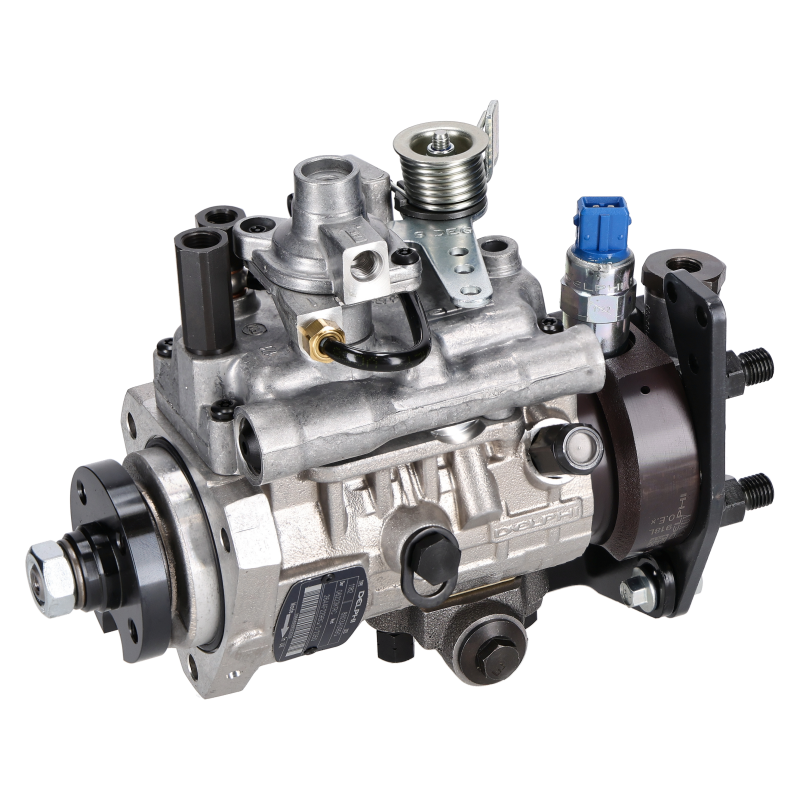

Injection pump suitable for JCB 3CX 4CX - AK engine
GX-OEM

Injection pump suitable for JCB 3CX 4CX - AK engine

Catalog number:SKX083169C Nr OEM:17/910000 Manufacturer:GX-OEM
Add a review

INJECTION PUMP (DELPHI) FOR PERKINS (AK) ENGINE SUITABLE FOR JCB 3CX, 4CX - 17/910000

Technical Specification and Compatibility

A critical component of the fuel system – this is an original (OEM) Delphi injection pump. It is designed for JCB 3CX and 4CX machines equipped with the Perkins 1004.4 Turbo AK series engine (older models, approx. pre-2005). This is a precision distributor (rotary) pump responsible for accurately metering and delivering fuel under high pressure directly to the injectors, ensuring optimal combustion, performance, and engine operation.

Part number: 17/910000
Manufacturer: GX-OEM (Original Manufacturer: Delphi)
Pump Type: Distributor (Rotary)
Compatible Engines: Perkins 1004.4 Turbo (AK Series)

By choosing GX-OEM parts, you choose uncompromised original equipment quality. Our products are manufactured with the highest precision, guaranteeing a perfect fit and parameters identical to the original. This is the best investment in the long and trouble-free operation of your machine.

Essential for Service

  • › REDX Fuel Filters: You must replace all fuel filters (primary and secondary) to protect the new pump.
  • › Gasket/O-ring: Ensure a 100% seal at the connection to the engine block.
  • › Clean Diesel Fuel: For priming the new pump and filters before startup.

Application in machines

Brand Type / Series / Model
JCB Backhoe Loaders: 3CX, 4CX (with Perkins 1004.4 Turbo, AK series engine)

The list above is for reference. It is crucial to match the part number and engine type (Perkins AK).

⚠️ Critical Installation Warning!

The injection pump is the most precise component in the engine. It is extremely sensitive to contamination and water. Installation must be performed in sterile conditions. Before installation, you must replace all fuel filters and check the cleanliness of the entire fuel system. Incorrect installation (e.g., wrong injection timing) or contamination will lead to immediate pump seizure and void the warranty.

Part's Role in the Machine and Failure Diagnostics

The injection pump is the "heart" of the fuel system. It is responsible for precisely metering and compressing fuel to the pressure required by the injectors at the correct moment in the engine's cycle. Its failure will immobilize the machine or drastically reduce its power.

  • › Engine will not start or is extremely hard to start.
  • › Rough running, engine "knocking" or "hunting".
  • › Drastic loss of power, stalling under load.
  • › Excessive smoke (white or black) from the exhaust.
  • › Fuel leaks from the pump housing.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 How a Distributor Pump Works

Rotary (distributor) pumps, like this Delphi model, replaced older in-line pumps due to their higher precision. They work using several key components:

  • Feed Pump: An integrated pump that generates initial fuel pressure.
  • Rotor with Pistons: Fuel from the feed pump enters the rotor, where it pushes two opposing pistons outward.
  • Cam Ring: The outer ends of the pistons ride on a stationary, internal cam ring. As the rotor spins, the cam lobes force the pistons rapidly inward, compressing the fuel to high pressure.
  • Fuel Metering: The fuel dose is precisely controlled by throttling the inlet port that feeds the pistons.

Frequently Asked Questions (FAQ)

1. What is the difference between this pump (Perkins AK) and a Dieselmax pump (320/06929)?

These are for completely different engine generations. This pump (17/910000) fits the older Perkins 1004.4 (AK series, approx. 1997-2005). The 320/06929 pump fits the newer JCB Dieselmax engines (post-2005). They have different mounts, drives, and operating parameters and are not interchangeable.

2. Why must I replace fuel filters (e.g., REDX filters)?

Contaminated or water-filled fuel is the #1 cause of injection pump failure. If the old pump failed (e.g., seized), it is 100% certain that metal debris is in the system. Installing a new pump without flushing the system and replacing all filters will destroy the new pump immediately and void the warranty.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX083169C
17/910000
7.99 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
17/910000
ENGINE
PERKINS

Specific References

MPN
17/910000
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Injection pump suitable for JCB 3CX 4CX - AK engine

Catalog number: SKX083169C
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

7,501.77 zł

net price
6099,00 zł
Available in large quantity Temporarily unavailable
6099,00 zł
net price

7,501.77 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 610 points, it gives you 244.00 zł
  • Lowest price from 30 days before the discount: 7,501.77 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    17/910000
    ENGINE
    PERKINS
