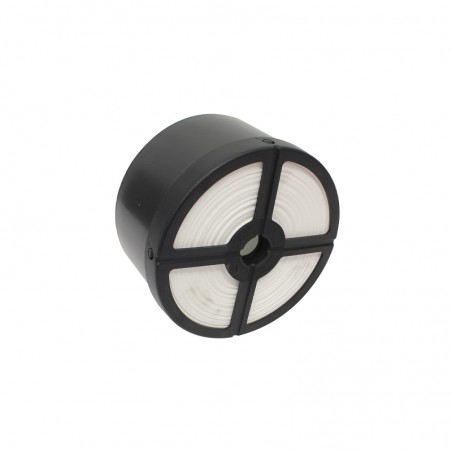

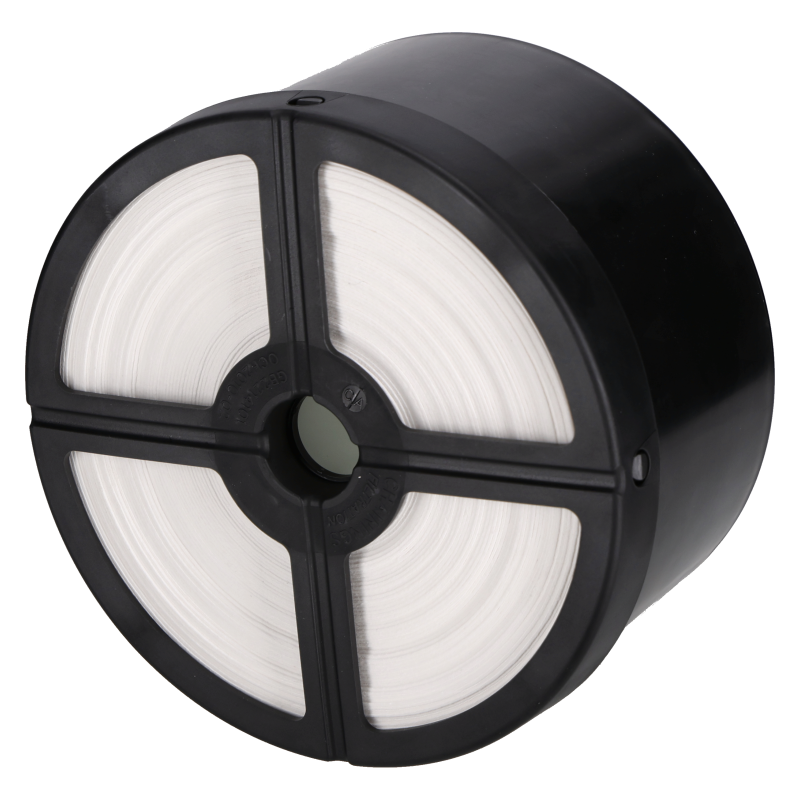

PLEXUS hydraulic filter suitable for JCB JS excavators
JCB

PLEXUS hydraulic filter suitable for JCB JS excavators

Catalog number:SKX821191D Nr OEM:32/925140 Manufacturer:JCB
Add a review

GENUINE JCB PLEXUS HYDRAULIC FILTER FOR JS EXCAVATORS - 32/925140

Technical Specification and Compatibility

A genuine, high-efficiency JCB Plexus hydraulic filter element, installed on the return line in the oil tank. Its function is to precisely clean the oil returning from the working system before it gets back to the pump. This is the most important line of defense, protecting the hydraulic pump and valves from contaminants generated during normal operation (metal filings, seal particles).

Part number: 32/925140
Manufacturer: JCB
Height (mm): 110
Outer Diameter (mm): 195
Inner Diameter (mm): 40

Genuine JCB product – a guarantee of the highest quality, perfect fit, and 100% compatibility with your machine.

Application in machines

Brand (Machine Type) Model
JCB (Tracked Excavators) JS200, JS210, JS220, JS235, JS240, JS260, JS290, JS330, JS360, JS370, JS460, JS500
JCB (Wheeled Excavators) JS200W

The list above is for reference. We recommend verifying the part number in your machine's service manual before purchasing.

Service Recommendation: Ensure Maximum Lifespan

For full protection of the hydraulic system, replace the return filter regularly, according to the service interval. Always fill the system with new, clean HYPTRON hydraulic oil. This is the cheapest way to avoid a costly hydraulic pump failure.

Part's Role in the Machine and Failure Diagnostics

The return filter is the most important protection for the heart of the machine – the hydraulic pump. A clogged or damaged filter opens the by-pass valve, allowing contaminated oil to flow directly into the tank, and from there straight to the pump. This leads to its seizure and a catastrophic, very expensive failure.

Replace the filter if you notice any of the following symptoms:

  • Slow and "sluggish" hydraulic operation.
  • Loud operation of the hydraulic pump, a characteristic "whine".
  • Excessive heating of the hydraulic oil.
  • Frequent illumination of the clogged hydraulic filter warning light.

Peace of Mind Guarantee: Why Choose Our Offer?

✓ Uncompromising Safety: Choose a Genuine JCB Part

There is no room for compromise when it comes to hydraulic filtration. By choosing a genuine JCB Plexus filter, you are 100% assured of receiving a product with efficiency and service life that meets the manufacturer's stringent standards. This guarantees maximum protection for the pump and valves, which cheap replacements cannot provide.

Are your hydraulics weak and noisy? Don't risk pump seizure!

The cost of a filter is negligible compared to a hydraulic pump overhaul. Order a genuine JCB filter today and provide the heart of your machine with the clean oil it should be running on!

Expert's Guide: Key Installation Tips

  1. Maintain cleanliness: Before opening the hydraulic tank, thoroughly wash its cover and the surrounding area to prevent dirt from getting into the oil.
  2. Inspect the old filter: After removing the old filter, check it for an excessive amount of metal filings. Their presence may indicate a more serious failure in the system.
  3. Replace the cover gasket: Always install the tank cover with a new gasket to ensure a perfect seal.
  4. Bleed the pump (if required): On some machines, after changing the filter and oil, it may be necessary to bleed the hydraulic pump according to the service manual.

Frequently Asked Questions (FAQ)

1. Why are my hydraulics still slow after changing the filter?

If replacing the filter didn't help, it could indicate that the hydraulic pump is worn and no longer able to generate adequate pressure. Other causes include leaks in the system (internal or external) or a faulty relief valve.

2. I found metal shavings in my old filter. What does that mean?

This is a very bad sign. A large amount of filings indicates that a metal component in the system (most often the hydraulic pump, slew motor, or a cylinder) is seizing up. Simply replacing the filter will not solve the problem - the source of the filings must be diagnosed and repaired as soon as possible.

3. How often should the hydraulic return filter be replaced?

It should be replaced according to the service interval specified by the machine manufacturer, usually every 1000 operating hours or at least once a year, whichever comes first. If working in very harsh conditions, this interval should be shortened.

Key Advantages

🛡️

Genuine JCB Quality

Maximum protection and system lifespan.

🎯

System Efficiency

Ensures an unrestricted flow of clean oil.

📦

Pump Protection

The best insurance against seizure.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

JCB
SKX821191D
32/925140
3.04 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
32/925140
OUTER DIAMETER (MM)
195
INNER DIAMETER (MM)
40
HEIGHT (MM)
110

Specific References

MPN
32/925140
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

PLEXUS hydraulic filter suitable for JCB JS excavators

Catalog number: SKX821191D
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

675.27 zł

net price
549,00 zł
Available in large quantity Temporarily unavailable
549,00 zł
net price

675.27 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 55 points, it gives you 22.00 zł
  • Lowest price from 30 days before the discount: 675.27 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    EXCAVATOR
    OEM NUMBERS
    32/925140
    OUTER DIAMETER (MM)
    195
    INNER DIAMETER (MM)
    40
    HEIGHT (MM)
    110
