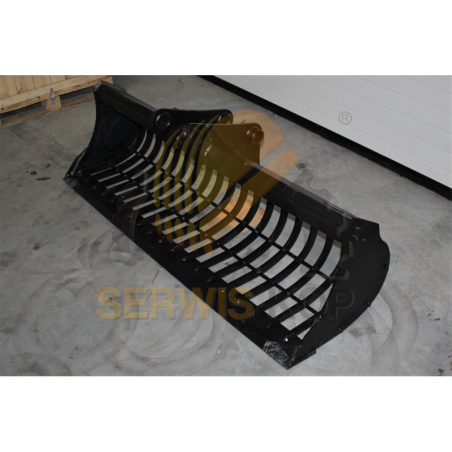

Bucket granding riddle 180 CM suitable for JCB 3CX 4CX 5CX
NEXGEN

Bucket granding riddle 180 CM suitable for JCB 3CX 4CX 5CX

Catalog number:LSKARPA180 Nr OEM:980/86061 Manufacturer:NEXGEN
Add a review

Skeleton Grading Bucket 180cm suitable for JCB 3CX 4CX - 980/86061

Technical Specification and Compatibility

Skeleton (sieve) grading bucket with a width of 180 cm (1800 mm) and part number 980/86061, manufactured by NEXGEN. This is a specialized attachment used for separating material fractions (e.g., stones from soil) and land drainage works. Dedicated to JCB 3CX, 4CX backhoe loaders and mini/midi excavators in the 5-10 ton class. The bucket features a blade made of wear-resistant HB400 steel.

Part Number: 980/86061 (Skeleton Version)
Component Type: Skeleton / Sieve Bucket
Working Width: 1800 mm (180 cm)
Blade Material: HB400 Steel (Hardox)
Body Material: Quality Steel S355J2G3
Mounting Dimensions: Pins 45mm / Arm 175mm / Spacing 340mm
Standard: ISO 7451
Manufacturer: NEXGEN

NEXGEN buckets feature an internal reinforcement system that prevents the wide structure (180 cm) from twisting during operation. The open-rib design allows for screening spoil directly on the construction site, saving time and transport costs.

Features of NEXGEN 180cm Skeleton Bucket

Sorting Function: Thanks to the gaps in the bottom and back of the bucket, fine material (sand, soil) falls out, leaving stones, rubble, or roots inside.
HB400 Blade: The cutting edge made of 400 HB hardness steel ensures resistance to abrasion during contact with stones and debris.
Rigid Construction: The ribs forming the "sieve" are made of thick steel and additionally reinforced so they do not bend under the weight of the load.
Ready to Install: The bucket has welded bushings and is ready to be mounted on the machine. Fits quick couplers and traditional pins.

Application in JCB machinery

Machine Type Models
Backhoe Loaders 3CX, 4CX (All years with JCB rear attachment)
Mini / Midi Excavators 8052, 8055, 8060, 8065, 8085, 65R, 67C, 85Z, 86C, 90Z, 100C

The bucket has standard JCB mounting dimensions: 45 mm pins, 175 mm arm width, 340 mm spacing.

Related Parts and Hardware

The bucket is supplied with mounted bushings. The set does not include pins (use existing ones or buy new ones with a diameter of 45mm). We recommend using greased pins to extend the life of the bushings.

⚠️ Safety Warning

When working with a skeleton bucket, watch out for small stones and debris falling through the gaps. Do not use the bucket to lift objects that can fall through the "sieve" and create a hazard for workers in the trench.

Part Role in the Machine and Failure Diagnostics

The skeleton bucket is used for material separation and drainage ditch cleaning.

  • › Bar/rib wear (reduced cross-section, risk of breakage).
  • › Pin play (bushing wear from vibration during sieving).
  • › Structure bending (attempting to pull roots or concrete).
  • › Weld cracks (material fatigue).

📞 Can't find the part you're looking for?

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

🔧 Expert Guide: Key Installation Tips

  1. Application: Remember that this is a skeleton bucket. It is not suitable for digging in solid clay or loading fluid/loose materials that fall through the sieve.
  2. Lubrication: During "sieving" work (shaking the bucket), the pins are subjected to high impact loads. Grease them more often than during regular digging.
  3. Dimensions: Check if your machine has a standard JCB arm (175mm width). If you have a quick coupler from another manufacturer, ensure it can handle 340mm spacing.

Technical FAQ and Trivia

What is a skeleton bucket used for?

A skeleton bucket (shaker bucket) is used for material separation: separating stones from soil, sifting rubble, and extracting material from water (water drains out, spoil remains) during drainage works.

Can you dig with it?

Yes, but in light, loose soil. In hard ground, the bucket ribs create a lot of resistance, which is inefficient and can lead to structural damage.

Recycling trivia

Using a skeleton bucket allows for material recovery directly on the construction site (e.g., stones for foundation), reducing the cost of spoil removal and purchasing new aggregate. It is a pro-ecological and economical solution.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

LSKARPA180
980/86061
205.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
MINIEXCAVATOR
OEM NUMBERS
LSKARPA180
WIDTH (MM)
1800
1800
PINS (MM)
45
ARM WIDTH (MM)
175
SPACING OF THE PINS (MM)
340

Specific References

MPN
980/86061
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Bucket granding riddle 180 CM suitable for JCB 3CX 4CX 5CX

Catalog number: LSKARPA180
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

3,504.27 zł

net price
2849,00 zł
Temporarily unavailable
2849,00 zł
net price

3,504.27 zł

gross price
  • You will receive 285 points, it gives you 114.00 zł
  • Lowest price from 30 days before the discount: 3,504.27 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    MINIEXCAVATOR
    OEM NUMBERS
    LSKARPA180
    WIDTH (MM)
    1800
    1800
    PINS (MM)
    45
    ARM WIDTH (MM)
    175
    SPACING OF THE PINS (MM)
    340
