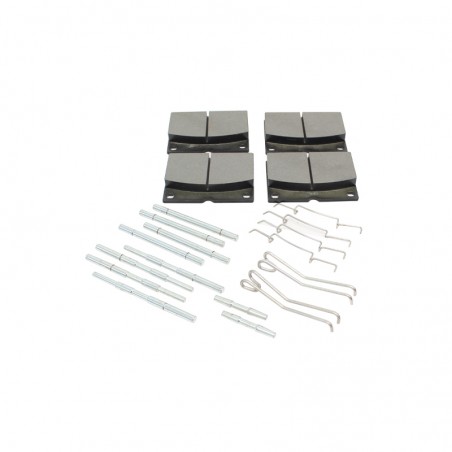

Brake pads kit suitable for JCB Fastrac / Axle kit
GX-AFTER

Brake pads kit suitable for JCB Fastrac / Axle kit

Catalog number:SKX456492A Nr OEM:15/920395 Manufacturer:GX-AFTER
Add a review

AXLE SET OF BRAKE PADS SUITABLE FOR JCB FASTRAC - 15/920395

Technical Specification and Compatibility

A key component of the braking system – a complete set of pads for one axle, designed for JCB FASTRAC tractors. This is a component directly responsible for safety, tasked with creating the friction force necessary to slow down and stop the machine. Manufactured from an advanced friction compound, they provide high braking efficiency, resistance to high temperatures, and a long service life, even when operating at the high speeds and heavy loads characteristic of Fastrac tractors.

Part number: 15/920395
Alternative part numbers: 477/01006, 15/920118
Manufacturer: GX-AFTER
Set for: One axle (front)
Length (mm): 117
Width (mm): 82
Thickness (mm): 18.6

GX-AFTER is the smart choice for your machine. We provide high-class replacement parts that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Essential for Assembly

  • › Fitting kit: Check the condition of the retaining pins and shims; replace them with new ones if necessary.
  • › HYPTRON brake grease: Essential for lubricating the caliper slide pins.
  • › HYPTRON brake fluid: An ideal opportunity to check the level and condition of the brake fluid.

Application in machines

Brand Type / Series / Model
JCB Agricultural Tractors: FASTRAC (e.g., 1115, 1125, 1135, 2115, 2125ABS, 2125, 2135, 2135ABS, 2140, 2150, 3155, 3170, 3185, 3185ABS, 3190, 3220)

The list above is for reference. Before purchasing, we recommend checking the dimensions of your old brake pads.

Part's Role in the Machine and Failure Diagnostics

Brake pads are friction components that wear down with every braking application. Ignoring their wear leads to reduced braking performance and, in extreme cases, to damage of the brake discs due to metal-on-metal contact.

  • › Squealing or grinding noises during braking.
  • › A noticeable decrease in braking performance.
  • › Machine pulling to one side during braking.
  • › Friction material thickness less than 3 mm.

Frequently Asked Questions (FAQ)

1. What is "bedding-in" brake pads and why is it important?

Bedding-in is the process of matching the surface of the new pad to the surface of the brake disc. Done correctly (through several gentle braking applications), it ensures even contact, maximum effectiveness, and prevents glazing of the pads, which could lead to squealing and weaker braking.

2. My brakes are squealing. Does that mean the pads are worn out?

Not always. Squealing can be caused by wear (some pads have an audible wear indicator), but also by a glazed pad surface, dirt, rust on the disc, or lack of lubrication on the caliper's sliding components.

3. Do I have to replace pads on both axles at the same time?

No. Brake pads are always replaced in sets on a single axle (on both the left and right wheel) to ensure even braking force. However, it is not necessary to replace the pads on the front and rear axles at the same time, unless both require it.

Peace of Mind Guarantee: Why Choose Our Offer?

Faulty brakes are an unacceptable risk.

A Fastrac is a high-speed machine, and its weight requires a 100% efficient braking system. The cost of replacing brake pads is negligible compared to the costs of an accident or replacing damaged brake discs. Don't compromise on safety – order a new, reliable GX-AFTER brake pad set and be sure you can always stop in time.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Check the discs: Before installing new pads, thoroughly inspect the condition of the brake discs. If they have deep grooves, a lip, or are discolored from heat (blue spots), they should be replaced.
  2. Clean the caliper: Thoroughly clean the brake caliper, especially the guides on which the pads move.
  3. Lubricate the guides: Use dedicated brake grease on the caliper slide pins to ensure smooth movement of the pads. Do not lubricate the friction surfaces!
  4. Bed-in the pads: After installation, perform several gentle braking applications from a low speed to allow the pads to conform to the discs. Avoid hard braking for the first few kilometers.

Key Advantages

🛡️

Safety and Performance

Restores full braking efficiency.

🎯

Disc Protection

Prevents scoring and damage to brake discs.

📦

High Durability

Resistant to high temperatures and heavy loads.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX456492A
15/920395
3.37 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
FASTRAC
OEM NUMBERS
15/920395 / 477/01006 / 15/920118
