Travel motor suitable for JCB 802/8030 mini excavators - 20/925691
GX-OEM

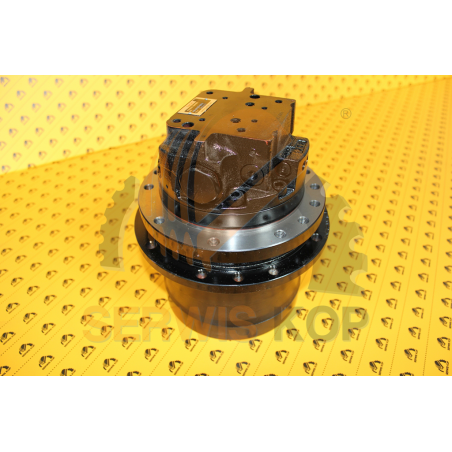

Travel motor suitable for JCB 802/8030 mini excavators

Catalog number:SKX238920C Nr OEM:20/925691 Manufacturer:GX-OEM
Add a review

GX-OEM Travel Motor (Final Drive) suitable for JCB - 20/925691

Technical Specification and Compatibility

A two-speed travel motor (final drive) 20/925691 in a new, improved version for demanding operators of JCB mini-excavators (e.g., 8025, 8030). Manufactured using the latest technology, this GX-OEM component guarantees durability and reliability. It is designed to withstand changing weather conditions and ensure simple operation. Using our final drive will help you avoid costly downtime and repair-related stress.

Part Number: 20/925691
Type: Travel Motor / Final Drive with Planetary Gear
Speeds: Two-Speed (high/low speed)
Mounting Holes (Frame): 9 (with double holes for easier installation)
Mounting Holes (Sprocket): 9
Sprocket Seating Diameter: 190 mm
Frame Diameter: 165 mm
Supply Ports: 2
Return Ports (Overflow): 2 (selectable, for universal L/R mount)

By choosing GX-OEM parts, you are choosing uncompromising first-assembly quality. Our products are made with the highest precision, guaranteeing a perfect fit and parameters identical to the original. This is the best investment in the long and trouble-free operation of your machine.

Advantages of the GX-OEM Final Drive

Universal Mounting: Thanks to two overflow ports, the travel motor can be mounted on the right or left side and simplifies hose routing.
Service Cover: A special cover with multiple plugs allows for easy draining, filling, and checking of the oil level in the gearbox.
Flexible High Speed: The option to move the high-speed nipple to indicated places simplifies hydraulic hose connection.
Simple Sprocket Mounting: The hub design ensures completely trouble-free and fast mounting of the drive sprocket.
Reliability and Durability: Strong high-speed gear and resistance to changing weather conditions guarantee a long service life.

Application in machinery

Brand Type / Series / Model
JCB Mini-Excavators: 8025, 8025CTS, 8025ZTS, 8030, 8030ZTS, 8032

The list above is for reference only. If you are unsure about the part's compatibility, please contact our experts.

Required for Installation and Service

To ensure maximum lifespan of the new travel motor and protect the entire hydraulic system, it is absolutely essential to replace the hydraulic filters and oil. Contaminants from the old motor can immediately damage the new component. We recommend:

  • REDX hydraulic filters
  • HYPTRON hydraulic oils

Also, check the condition of the drive sprocket and mounting bolts.

⚠️ Safety Warning

A travel motor failure is critical to machine operation. A malfunctioning final drive can lead to a sudden loss of drive, which is especially dangerous when working on slopes. Always replace the oil and filters when installing a new final drive to prevent contamination from the old unit's debris.

Part Role in the Machine and Failure Diagnostics

The travel motor (final drive) is the heart of the track's drive system. It converts hydraulic oil pressure into rotational motion, which drives the sprocket and moves the machine. This is a two-speed component, allowing a choice between power (low speed) and velocity (high speed).

  • › Total loss of drive on one track (machine spins in place).
  • › Loss of "high speed" (motor does not switch to the higher gear).
  • › Machine loses power (is "weak") under load or when traveling uphill.
  • › Very loud operation, metallic grinding, or whining from the final drive.
  • › Visible leaks of hydraulic or gear oil.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Replace Oil and Filters: Before installing the new final drive, you must replace the hydraulic oil (we recommend HYPTRON) and all hydraulic filters (we recommend REDX).
  2. Flush the System: Thoroughly flush the hydraulic system to remove any metal shavings from the old, failed motor. Neglecting this step will immediately destroy the new component.
  3. Connect Hoses: Ensure the supply, return, and overflow hoses are connected to the correct ports. Use the selectable overflow ports for easier installation.
  4. Fill Gearbox: Before the first run, fill the planetary gearbox with clean gear oil to the appropriate level (using the control plugs).
  5. Bleed the System: After installation, run the machine at low RPM and slowly move the track in both directions to bleed the air from the new motor.

Frequently Asked Questions (FAQ)

Is this travel motor complete with the gearbox?

Yes, this is a complete final drive, meaning it includes the hydraulic motor integrated with the planetary gearbox, ready for installation.

How does the universal mounting (two overflow ports) work?

The motor has two return (overflow) ports. You use the one that is more conveniently located (e.g., higher up, depending on the mounting side) and plug the other. This allows the same part to be mounted on the left or right side of the excavator.

Why is regularly checking the gearbox oil so important?

The cover with multiple plugs makes inspection easy. The oil in the planetary gearbox lubricates the gears. A leak or lack of oil will lead to seizure of the gearbox, which is one of the most common causes of failure and results in a very costly repair.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX238920C
20/925691
56.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
MINIEXCAVATOR
OEM NUMBERS
20/925691

Specific References

MPN
20/925691
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Travel motor suitable for JCB 802/8030 mini excavators

Catalog number: SKX238920C
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

8,301.27 zł

net price
6749,00 zł
Temporarily unavailable
6749,00 zł
net price

8,301.27 zł

gross price
  • You will receive 675 points, it gives you 270.00 zł
  • Lowest price from 30 days before the discount: 8,301.27 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    MINIEXCAVATOR
    OEM NUMBERS
    20/925691
