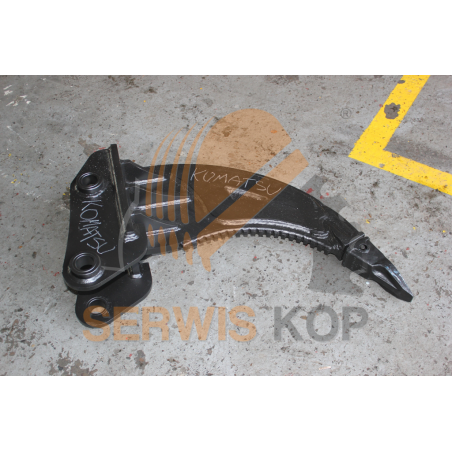

Tooth Ripper suitable for Komatsu WB 93/97 / COBRA
NEXGEN

Tooth Ripper suitable for Komatsu WB 93/97 / COBRA

Catalog number:TR-KOMATSU Nr OEM:TR-KOMATSU Manufacturer:NEXGEN
Add a review

Ripper Attachment suitable for Komatsu - TR-KOMATSU

Technical Specification and Compatibility

A durable, complete TR-KOMATSU ripper by NEXGEN, designed for KOMATSU WB93 and WB97 backhoe loaders. This is a brand new attachment, ready for immediate work – supplied complete with bushings and a replaceable tooth cap. The body is made of high-quality steel, and the tine (comb) is made of HB400 wear-resistant plate, ensuring high durability in tough ground conditions. The hitch dimensions match Komatsu's standard arm.

Part Number: TR-KOMATSU
Type: Ripper (Complete with bushings and tooth cap)
Tine Material: HB400 Wear-Resistant Steel
Mounting: Standard dimensions (fits quick hitches and pin-on)
Pin Diameters: 45 mm
Arm Width (Hitch): 160 mm
Pin Centers: 295 mm
Option: Also available to order for 40 mm pins (older models)

In the construction industry, machine reliability is the key to success. That's why we offer high-quality NEXGEN replacement parts for construction machinery, which meet the highest standards of durability and performance. Our products are the ideal solution for companies and specialists looking for reliable components at attractive prices.

Features of the NEXGEN TR-KOMATSU Ripper

Complete Set: Supplied as a ready-to-work kit, including hitch bushings and a replaceable tooth cap.
HB400 Steel Tine: Ensures maximum abrasion resistance and a longer lifespan for the working component.
Solid Body: The high-quality steel body provides resistance to cracking under high ripping forces.
Perfect Fit: Hitch dimensions (45mm/160mm/295mm) match Komatsu arm standards, fitting both quick hitches and direct pin-on mounting.

Application in machinery

Brand Type / Series / Model
KOMATSU Backhoe Loaders: WB93, WB97

The list above is for reference. It is crucial to verify the hitch dimensions on your machine's arm.

Related Parts and Hardware

To mount the ripper, you will need the correct pins (45 mm diameter) and pin retainers. We also offer replaceable tooth caps for future needs.

⚠️ Safety Warning

Using a ripper for side-prying or pushing is strictly prohibited. Such work can lead to the hitch cracking, permanent damage to the excavator arm, or machine rollover. A cracked tooth or cap can detach, posing a hazard to surroundings.

Part Role in the Machine and Failure Diagnostics

A ripper is a work attachment that replaces the digging bucket. It is used for working in tough terrain – loosening compacted, clay, or frozen ground, and pulling up roots and rocks. Using a ripper makes subsequent excavation with a standard bucket much easier. The replaceable tooth cap and hitch bushings significantly extend the life of the entire attachment.

  • › Visible fatigue cracks on the body or hitch welds.
  • › Significant wear or cracking of the replaceable tooth cap.
  • › Excessive play on the pins (ovalization of the bushings in the hitch).
  • › Permanent bending (deformation) of the tine after hitting an obstacle.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Dimensions: Before purchase/installation, carefully measure your arm: pin hole diameters (45 mm), arm width (160 mm), and pin centers (295 mm).
  2. Check Pins: Ensure your 45 mm pins are not worn or oval. Mounting a new attachment (even with new bushings) on worn pins will quickly lead to play.
  3. Lubrication: Generously grease the pins and bushings before installation to ensure smooth movement and reduce friction.
  4. Retainers: Always use functional pin retainers (linchpins) to prevent the pins from sliding out during operation.
  5. Avoid Side Loading: Remember, a ripper is not designed for prying sideways. Only operate in line with the dipper arm.

Frequently Asked Questions (FAQ)

What do the hitch dimensions (45mm/160mm/295mm) mean?

These are the mounting dimensions. It means both pin hole diameters are 45 mm, the arm width at the mounting points is 160 mm, and the pin spacing (center-to-center) is 295 mm. This is a critical set of dimensions to verify.

Does this ripper fit a quick hitch?

Yes, the description states that the hitch dimensions match the standard arm dimensions, which means it is compatible with both quick hitches (that pick up on pins) and traditional direct pin-on mounting.

Is the tooth (cap) replaceable?

Yes, this model comes with a replaceable tooth cap. After it is worn, it can be removed (usually by knocking out a pin) and a new one installed, without needing to replace the entire ripper body.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TR-KOMATSU
TR-KOMATSU
100.00 kg

Data sheet

SUITABLE FOR
KOMATSU
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
TR-KOMATSU
PINS (MM)
45
ARM WIDTH (MM)
160
SPACING OF THE PINS (MM)
295

Specific References

MPN
TR-KOMATSU
