Part Number: 331/37238
Manufacturer: GOLDEN EAGLE

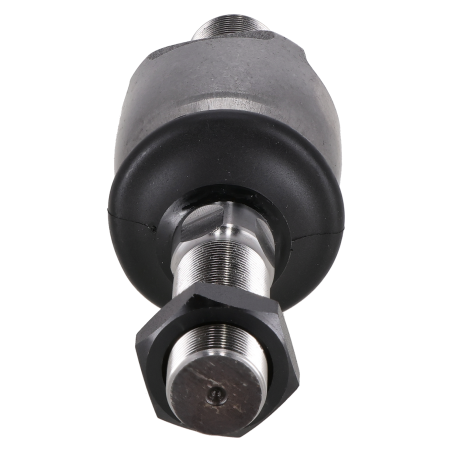

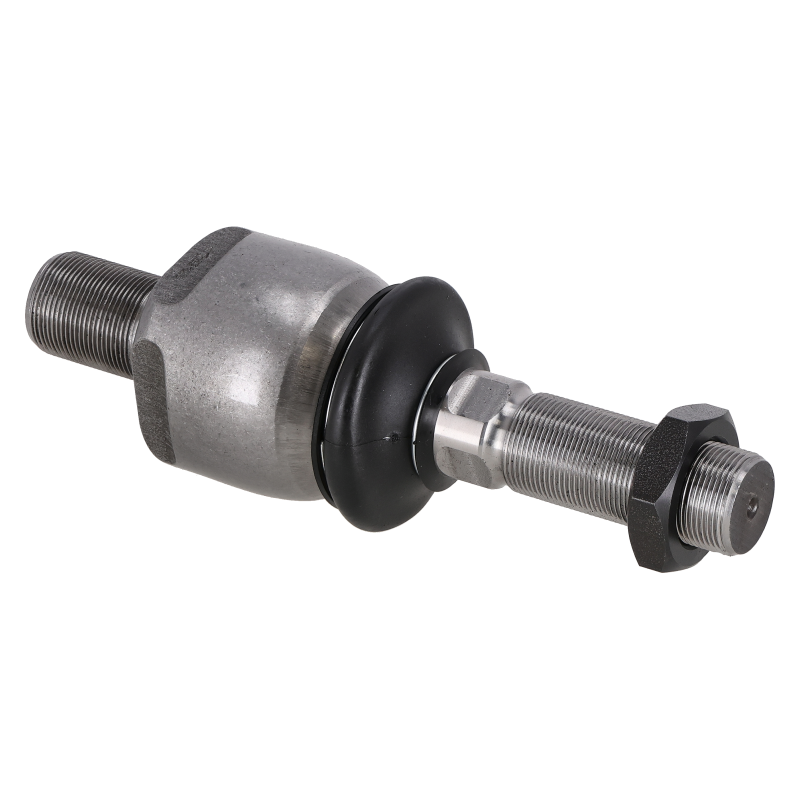

Type: Tie Rod End
Application: Machines with two steering axles (4WS)
Technical Specifications:
Overall Length: 220 mm
Thread Size: M28 × 1.5
Function in the Machine and Fault Diagnosis
The 331/37238 tie rod end connects the steering cylinder to the steering knuckle, transferring steering motion directly to the wheels. In machines with 4WS (four-wheel steering), this component is critical for precise control and machine stability.
Signs of Wear or Damage:
Knocking or play in the steering linkage (worn ball joint).
Uneven tire wear caused by misaligned steering geometry.
Delayed or imprecise response to steering inputs.
Damaged rubber boot and grease leakage, accelerating joint corrosion.
⚠️ Safety Warning
Play in the tie rod ends on JCB 4CX machines is especially dangerous at higher speeds (over 30 km/h). It can cause the machine to "wander" and lose directional control. A broken tie rod end can result in complete loss of steering, posing a serious risk to the operator and surrounding personnel.
| Brand | Models (2 steering axles) |
|---|---|
| JCB | 3CX SUPER, 4CX |
Part intended exclusively for models with two steering axles (4WS). Check thread M28x1.5.
