• BOFORS B3 Loader Bucket Tooth 33102 (Flush) GX-AFTER
  • Bofors teeth for loaders - 33102
Bofors teeth for loaders - 33102
HIMACORE

Bofors teeth for loaders - 33102

Catalog number:SKX1015192HM Nr OEM:33102 Manufacturer:HIMACORE
Add a review

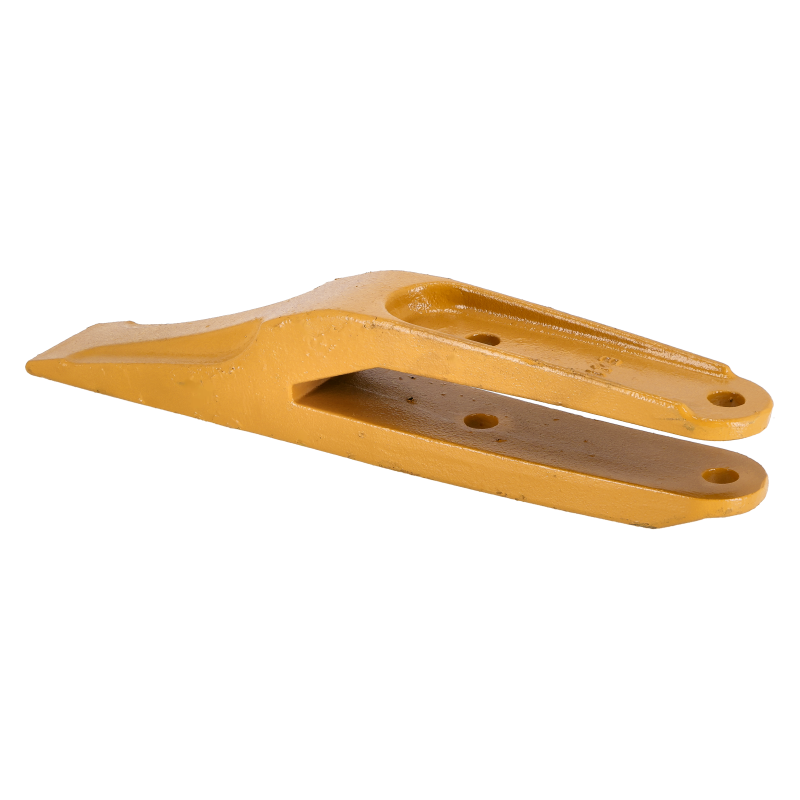

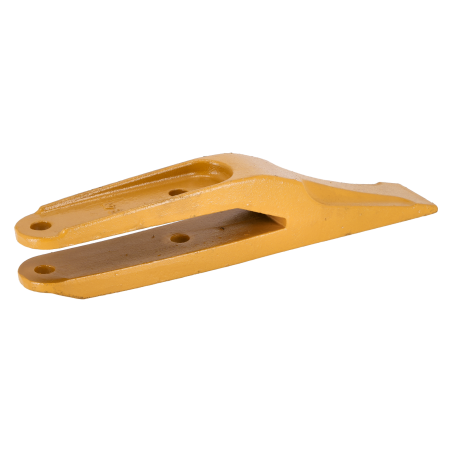

BOFORS B3 Loader Bucket Tooth (Flush) - 33102

Technical Specification and Compatibility

A high-quality 33102 loader bucket tooth by GX-AFTER. This is a tooth designed for the popular BOFORS (B-LOCK) system in size B3. It features a flat bottom, making it ideal for loader buckets working on loose materials and leveling ground. Designed for machines with a bucket cutting edge up to approx. 35 mm thick.

Part Number: 33102
Alternative Numbers: 3031539, 3032705
Tooth System: BOFORS B-LOCK (size B3)
Type: Loader (Flush bottom)
Hardness: 48-52 HRC (approx. 500 HB)

GX-AFTER is the smart choice for your machine. We provide high-class drop-forged replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability.

Features of the BOFORS 33102 (B3) Tooth

Loader Profile: The flat bottom of the tooth creates a flush line with the bucket floor, facilitating cleaning the ground and leaving a smooth surface.
Self-Sharpening: Specially designed shape ensures the tooth maintains a sharp leading edge as it wears down.
High Resistance: Forged steel with approx. 500 HB hardness ensures long life even when working with abrasive materials (sand, aggregate).
B-LOCK System: Secure and quick fastening using a driven-in wedge, resistant to tough working conditions.

Application in machinery

System Size Machine Type
BOFORS (B-LOCK) B3 Wheel loaders, backhoe front buckets, larger skid steers.

The Bofors system is universal. It is critical to check if the adapter on your bucket is size B3.

Related Parts and Hardware

Tooth 33102 (B3) is dedicated for adapters such as 4046862. Installation requires a locking pin (B-Lock wedge) number 6254682.

⚠️ Safety Warning

Operating with completely worn-out teeth leads to irreversible damage to adapters (nose wear) and the bucket edge. A loose tooth can fall off and end up in a crusher, causing costly damage.

Part Role in the Machine and Failure Diagnostics

Bofors B3 loader teeth facilitate penetration into material piles and protect the bucket blade. Their flat bottom is crucial for grading and leveling work.

  • › Rounded edge (difficult material loading).
  • › Bottom wear (uneven ground leveling).
  • › Play on the adapter (worn 6254682 lock).
  • › Tooth lost during operation.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Check Size: Ensure you have the B3 system. It is a popular size, but easy to confuse with B2 or B4.
  2. Clean Adapter: Remove rust and dirt from the adapter nose before installing a new tooth to ensure proper seating.
  3. New Wedge: Always use a new wedge (6254682) when replacing a tooth. Old wedges lose their elasticity and can fall out.

Frequently Asked Questions (FAQ)

What does "Loader Tooth" mean?

It means that the underside of the tooth is flat and aligns with the bucket bottom. This facilitates material loading from flat ground and leaves a level surface after a bucket pass.

What is the difference between 33102 and 33101?

Both are size B3, but 33102 is a loader tooth (flat bottom), while 33101 is an excavator tooth (more aggressive profile, protruding below the bucket line).

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX1015192HM
33102
11.60 kg

Data sheet

SUITABLE FOR
ATLAS
BOMAG
CASE
CAT
DAEWOO
DOOSAN DAEWOO
FERMEC
FIAT HITACHI
HIDROMEK
HITACHI
HYUNDAI
JCB
KOBELCO
KOMATSU
NEW HOLLAND
TEREX
VOLVO
MACHINE TYPE
BACKHOE LOADER
EXCAVATOR
MINIEXCAVATOR
OEM NUMBERS
33102 / 3031539 / 3032705

Specific References

MPN
33102
