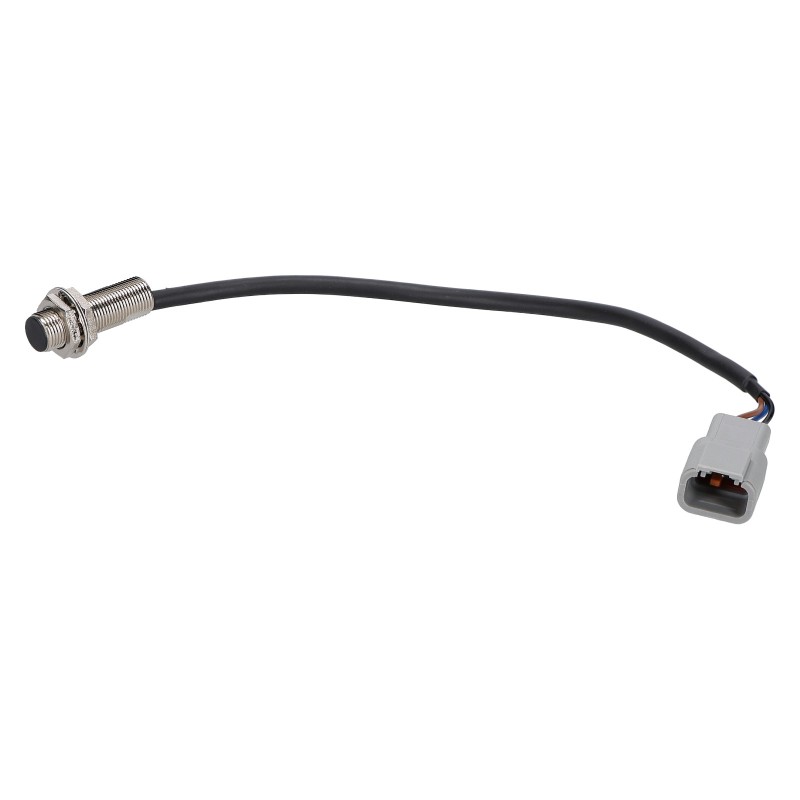

Switch Proximity - Brake suitable for JCB 3CX 4CX
GX-AFTER

Switch Proximity - Brake suitable for JCB 3CX 4CX

Catalog number:701/80629A Nr OEM:701/80629 Manufacturer:GX-AFTER
Add a review

BRAKE PROXIMITY SENSOR SUITABLE FOR JCB 3CX, 4CX - 701/80629

Technical Specification and Compatibility

An inductive proximity sensor, serving as a switch for the brake lights and parking brake signal. Its function is to non-contact detect a metal component on the brake pedal (or lever) mechanism and send a signal to the electrical system. It is a key element for road safety (brake lights) and the proper functioning of the machine's systems.

Part number: 701/80629
Alternative part numbers: 701/80342
Sensor type: Inductive Proximity
Voltage: 12V

A NEXGEN brand product – a high-quality replacement that meets the highest standards of durability and performance.

Application in machines

Brand (Machine Type) Model
JCB (Backhoe Loaders) 1CX, 2CX, MIDI CX, 3CX, 4CX
JCB (Telehandlers) Loadall (wide range of models)
JCB (Other Machines) Teletruk Forklifts, ROBOT Skid Steer Loaders

The list above is for reference. Before purchasing, we recommend visually comparing the sensor and its plug with your old part.

Service Recommendation: Ensure Maximum Lifespan

Problems with sensors often stem from moisture and corrosion on the contacts. Before connecting the new part, thoroughly inspect and clean the plug in the machine's wiring harness. Use a dedicated HYPTRON electrical contact cleaner spray to ensure a perfect connection and avoid reading errors.

Part's Role in the Machine and Failure Diagnostics

The brake sensor is a critical component for safety and efficiency. It is responsible for two functions: activating the brake lights to inform others of braking, and sending a signal to the transmission to disengage the drive (the "declutch" function), which facilitates loader work and reduces brake wear.

Replace the sensor if you notice any of the following symptoms:

  • No brake lights when the brake pedal is pressed.
  • The brake lights stay on constantly, even without pressing the pedal.
  • The transmission does not disengage when braking, the machine "pushes forward".
  • The drive is constantly disengaged or disengages at unexpected times.
  • Visible mechanical damage to the sensor or its cable.

Peace of Mind Guarantee: Why Choose Our Offer?

✓ Restore Safety and Efficiency: Choose NEXGEN Reliability

In the construction industry, machine reliability is key to success. The NEXGEN sensor is a high-quality replacement that meets the highest standards of durability and performance. Thanks to its precise construction, it restores proper communication with the control module, which is crucial for regaining full functionality and work safety.

Don't risk safety on the road and don't waste time during loading!

Our sensor is available off-the-shelf. Order now, replace this small component, and restore full functionality and safety to your machine!

Expert's Guide: Key Installation Tips

  1. Disconnect the battery: Always disconnect the power before starting work to avoid the risk of a short circuit.
  2. Set the correct air gap: It is crucial for proper operation to set the correct distance between the sensor face and the metal actuator on the brake pedal mechanism (usually 1-2 mm).
  3. Check the actuator: Make sure the metal plate that the sensor "sees" is clean, undamaged, and properly secured.
  4. Clean the electrical connector: Before plugging in the new sensor, thoroughly clean the plug in the machine's wiring harness to ensure a reliable contact.

Frequently Asked Questions (FAQ)

1. My brake lights don't work. Is this sensor definitely the cause?

Failure of this sensor is a very common cause. However, the problem could also lie in burnt-out bulbs, a blown fuse, or a damaged wiring harness. It is worth checking these elements first.

2. Does this sensor fit both the foot brake and the parking brake?

Yes, in many JCB models, the same type of sensor is used for both the foot brake pedal and the parking brake lever.

Key Advantages

🛡️

Road Safety

Restores brake light operation.

🎯

Work Efficiency

Improves loader work with the "declutch" function.

📦

Reliable Operation

Precise and repeatable action.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

701/80629A
701/80629
0.06 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
TELESCOPIC HANDLER
OEM NUMBERS
701/80629 / 701/80342

Specific References

MPN
701/80629
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Switch Proximity - Brake suitable for JCB 3CX 4CX

Catalog number: 701/80629A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

153.75 zł

net price
125,00 zł
Available in large quantity Temporarily unavailable
125,00 zł
net price

153.75 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 13 points, it gives you 5.20 zł
  • Lowest price from 30 days before the discount: 153.75 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    TELESCOPIC HANDLER
    OEM NUMBERS
    701/80629 / 701/80342
