Left side window suitable for CAT graders - 3001875
GX-OEM

Left side window suitable for CAT graders

Catalog number:SKX643374C Nr OEM:3001875 Manufacturer:GX-OEM
Add a review

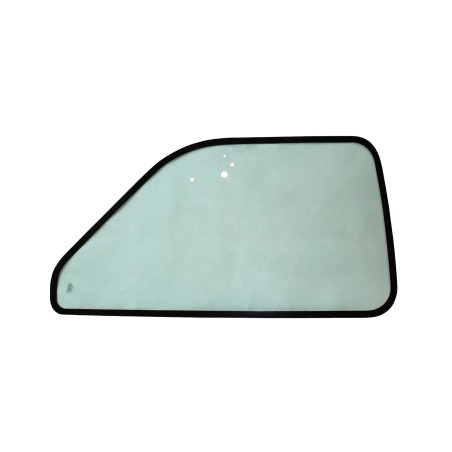

Left Side Window Glass suitable for CAT Motor Grader - 3001875

Technical Specification and Compatibility

Left side window glass (mounted behind the door) with part number 3001875 from the GX-OEM offer. It is high-quality safety glazing dedicated to Caterpillar (CAT) motor graders of M, L series and newer (e.g., 140M, 12M, 160M). The glass is made of green-tinted tempered glass, which ensures heat reduction inside the cabin and protects the operator from noise and external elements.

Part Number: 3001875
Replaces Number: 2606725
Component Type: Left Side Window (Behind Door)
Dimensions: 1474 mm x 785 mm
Number of Holes: 4
Color/Tint: Green (Heat absorbing)
Material: Tempered Glass
Screen Printing: Yes
Manufacturer: GX-OEM

GX-OEM line products are windows manufactured according to factory specifications. They have the correct curvature, mounting hole placement, and certified safety parameters required in mining and road machinery.

Features of GX-OEM 3001875 Glass

Safety (Tempered): Glass subjected to the tempering process is many times more resistant to impact than ordinary glass. If broken, it shatters into small, non-sharp pieces, minimizing the risk of injury to the operator.
Thermal Comfort: The green tint filters sunlight, providing a minimum of 70% light transmittance, which reduces cabin heating on sunny days.
Soundproofing: The thick glass pane acts as an acoustic barrier, significantly reducing external noise levels (engine, blade work).
Precision Fit: 4 factory mounting holes and screen printing (black border) ensure a perfect fit to the gasket and grader cab frame.

Application in CAT machinery

Category Motor Grader Models
Motor Graders 12M, 12M 2, 12M 3, 12M 3 AWD, 14, 14L, 14M, 14M-3, 14M3, 16, 16M, 16M3, 18, 18M3, 120M, 120M 2, 140, 140M, 140M 2, 140M 3, 140M 3 AWD, 150, 160, 160M, 160M 2, 160M 3, 160M 3 AWD

The glass fits the left side, behind the operator's door. Before purchasing, check dimensions: 1474 x 785 mm.

Related Parts and Hardware

For installation, you may need: glass adhesive, edge seal, and mounting hardware (bolts/bushings) for holes. We recommend checking the condition of seals before installation.

⚠️ Installation Warning

Tempered glass is very resistant to surface impacts but sensitive to edge impacts. During installation, use extreme caution not to chip the edge of the glass, as this can lead to it shattering immediately.

Part Role in the Machine and Failure Diagnostics

Glass 3001875 provides visibility and protection in the cab.

  • › Cracks ("spider web") (stone impact, frame stress).
  • › Dulling (long-term exposure to sand and dust).
  • › Leaks (water in cabin, air whistle).
  • › Damage to hole mounts (vibrations).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Frame Cleaning: Before gluing the new glass, thoroughly clean the frame of old glue and glass residues. The surface must be dry and degreased.
  2. Bolt Tightening: If the glass is mounted with bolts through holes, do not overtighten them. Use rubber spacers so metal bolts do not touch the glass.
  3. Bonding: Use only dedicated automotive glass adhesives. Leave the machine for the glue drying time (according to instructions) to avoid glass displacement.

Technical FAQ and Trivia

Why is the glass green?

The green tint indicates that the glass is athermal. It contains metal oxides that absorb part of the infrared radiation (heat), so the cabin interior heats up more slowly on sunny days, improving air conditioning efficiency.

What is screen printing?

Screen printing is the black border (often with dots) on the edges of the glass. It protects the mounting adhesive from UV degradation and aesthetically hides the glass-to-frame bonding area.

CAT M-Series Trivia

The Caterpillar M-Series motor graders were revolutionary because they replaced the traditional steering wheel and levers with a joystick control system. This required a cab redesign to ensure maximum visibility, hence the large glass areas in these machines.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX643374C
3001875
0.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
MOTOR GRADER
OEM NUMBERS
3001875 / 2606725

Specific References

MPN
3001875
