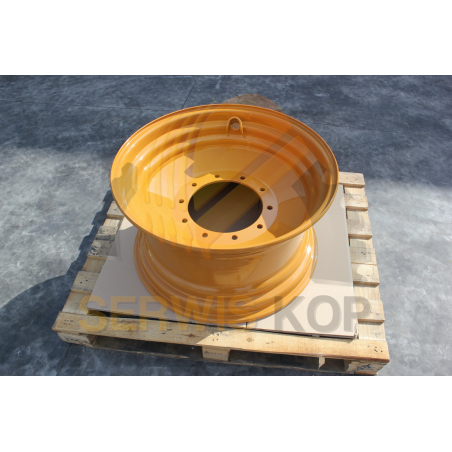

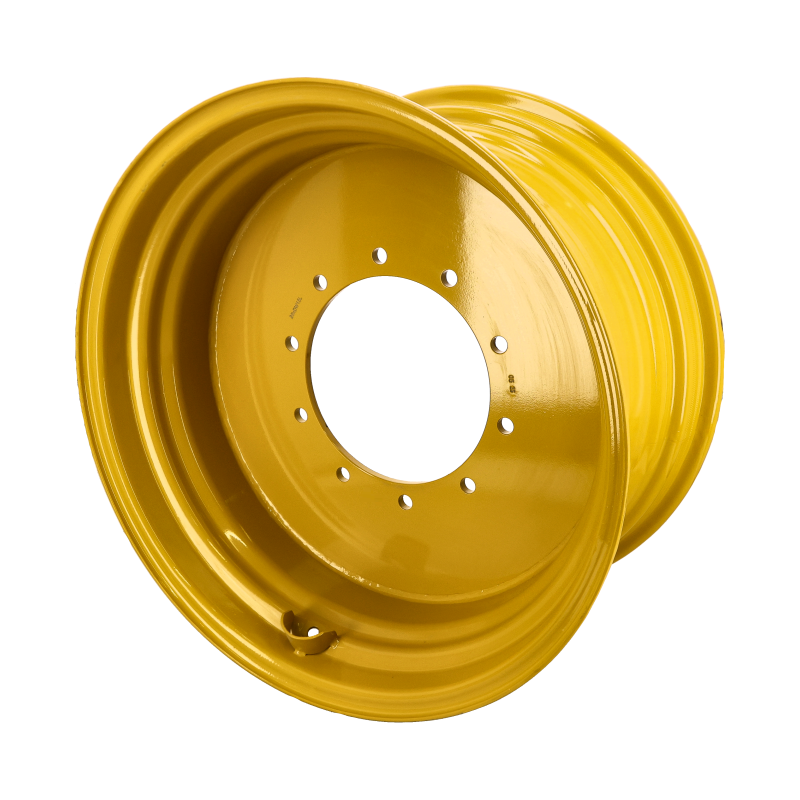

Heavy-duty steel 1956348 rear wheel rim from the GX-AFTER range. Dedicated to Caterpillar (CAT) backhoe loaders series E and F. This 28-inch rim is designed to fit industrial tires size 16.9-28 (or metric 440/80-28). The structure features 10 mounting holes and a precise center bore of 283.5 mm, characteristic for CAT drive axles.
GX-AFTER rims are manufactured from rolled steel with increased fatigue strength. Precise disc stamping and robotic welding guarantee perfect geometry (no runout) and safety under heavy loads.
| Machine Type | Models / Series |
|---|---|
| Backhoe Loaders | 422E, 424, 424B, 424B HD, 424B2, 426 F2, 428E, 434E (check tire size) |
The model list is for reference. It is crucial to check the tire size (16.9-28) and center bore diameter (283.5 mm) on your machine.
The rim is sold without a tire and fasteners. New wheel nuts and hub studs may be needed for installation. We also recommend installing a new valve stem.
Driving on a cracked or bent rim risks sudden tire pressure loss and, in extreme cases, wheel detachment from the hub. Fatigue cracks near mounting holes are a sign for immediate rim replacement.
The rim transmits torque from the hub to the tire and supports the weight of the machine.
📞 Can't find the part you're looking for?
No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!
No. This is a 28-inch rim. A 26-inch tire will not fit. You need a 16.9-28 tire.
Yes, the rim design allows for the installation of tubeless (TL) tires, but tubes can also be used if the tire requires it.
This rim (for CAT with 283.5mm hub) has 10 mounting holes of 22mm diameter.
Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.
Data sheet
Specific References
Manufacturer
Responsible person
See also similar products





Rear rim, size 16.9x28, for backhoe loaders, suitable for CAT 428E 434E machines.
