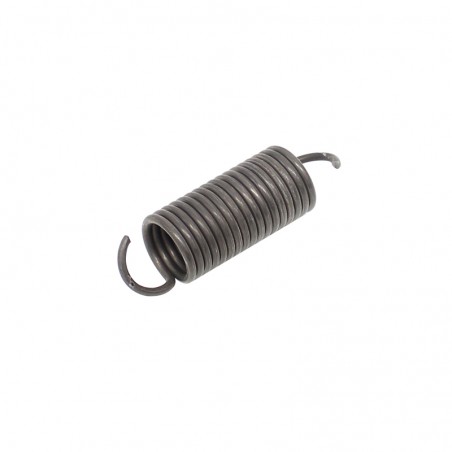

Brake pedal spring suitable for JCB 2CX 3CX 4CX
JCB

Brake pedal spring suitable for JCB 2CX 3CX 4CX

Catalog number:814/10122D Nr OEM:814/10122 Manufacturer:JCB
Add a review

Brake Pedal Spring suitable for JCB - 814/10122

Technical Specification and Compatibility

Original brake pedal spring 814/10122 designed for JCB 2CX, 3CX, 4CX, and MIDI CX backhoe loaders. This is a key component of the braking mechanism, responsible for correctly returning the brake pedal to its rest position after it is released by the operator. It provides the correct resistance and rapid pedal response, essential for safety and comfort.

Part Number: 814/10122
Type: Brake Pedal Return Spring

Original JCB product – a guarantee of the highest quality, perfect fit, and 100% compatibility with your machine.

Features of the 814/10122 Brake Spring

Genuine JCB Quality: Guarantees a perfect fit, correct parameters, and durability matching factory standards.
Precise Tension Force: Ensures proper resistance and immediate return of the brake pedal upon release.
High Durability: Made from high-quality spring steel, resistant to cracking and material fatigue.
Critical for Safety: Essential for correct brake response and proper operation of the brake light switch.

Application in machinery

Brand Type / Series / Model
JCB Backhoe Loaders: 2CX, 3CX, 4CX, MIDI CX

The list above is for reference only. If you are unsure about the part's compatibility, please contact our experts.

Related Parts and Hardware

When replacing the brake pedal spring, we recommend also inspecting the condition of the pedal pivot pin, any bushings, and the operation of the brake light switch.

⚠️ Safety Warning

A broken or excessively stretched brake pedal spring is critical for safety. It can cause the pedal to not return to its rest position, resulting in continuous, light braking (overheating the brakes and increasing fuel consumption) or the brake lights staying on, confusing other road users.

Part Role in the Machine and Failure Diagnostics

The 814/10122 spring is a return spring mounted directly to the brake pedal. Its job is to exert a force opposite to the operator's foot pressure. When the operator releases the pedal, the spring must immediately and forcefully pull it back to the neutral (upper) position, ensuring the brake system disengages and the brake light switch is released.

  • › Brake pedal feels "spongy" or "soft" and does not return upwards on its own.
  • › Pedal stays depressed or returns very slowly.
  • › Brake (STOP) lights stay on continuously (switch is not released).
  • › Machine feels "weak" or "drags" while driving (brakes are not fully disengaging).
  • › Visible cracking or advanced corrosion on the spring.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Check Mounting Points: Before removing the old spring, locate its attachment points on the pedal and bracket.
  2. Clean the Pivot Pin: It's a good idea to clean the brake pedal pivot pin of rust and old grease to ensure smooth motion.
  3. Use a Spring Tool: Use a dedicated spring hook or tool to install the new tension spring to avoid damaging it or causing injury.
  4. Check Stop Switch: After installation, press and release the pedal several times. Ensure the pedal properly releases the brake light switch (lights turn off).

Frequently Asked Questions (FAQ)

Does this spring fit the accelerator (throttle) pedal?

No, this is a return spring specifically designed for the brake pedal with a specific tension rate. The accelerator pedal spring typically has a different part number and characteristics.

Why are my brake lights stuck on?

The most common cause is a broken, worn, or missing 814/10122 spring. This prevents the brake pedal from returning fully to release the brake light switch. It could also be the switch itself or its adjustment.

Is this a genuine JCB part?

Yes, product 814/10122 is an original JCB part, guaranteeing the highest quality, durability, and a perfect fit for your machine.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

JCB
814/10122D
814/10122
0.07 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
MIDI CX
OEM NUMBERS
814/10122

Specific References

MPN
814/10122
