Front lamp indicator lens suitable for CAT
GX-AFTER

Front lamp indicator lens suitable for CAT

Catalog number:SKX992160A Nr OEM:100-3250 Manufacturer:GX-AFTER
Add a review

Indicator Lens Amber suitable for CAT 428 432 - 1003250

Technical Specification and Compatibility

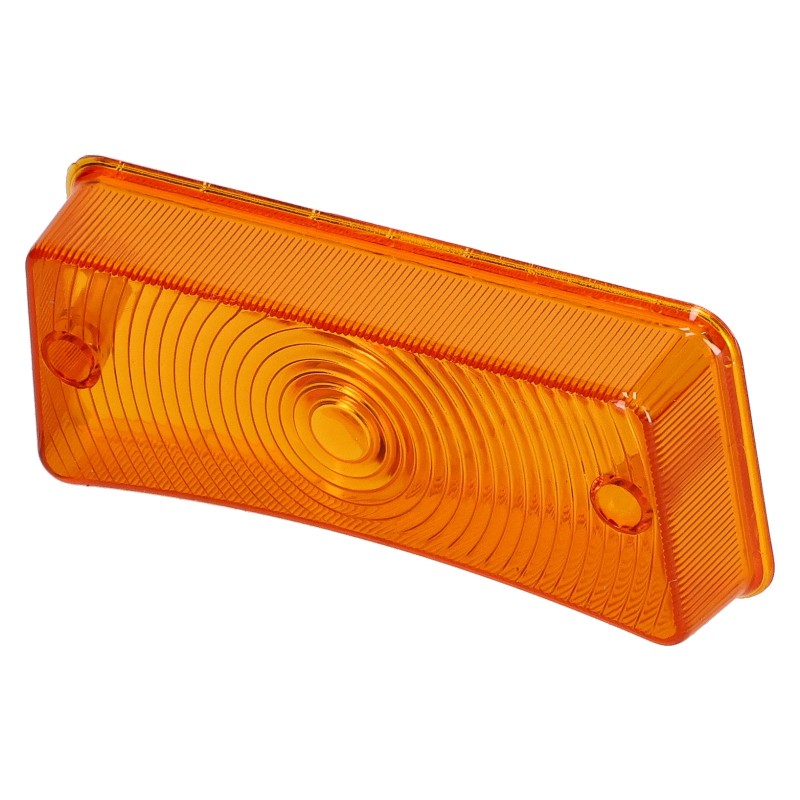

High-quality 1003250 turn signal lens from the GX-AFTER offer. It is a rectangular amber (orange) optical element, designed for combination lamps installed in Caterpillar (CAT) machines. Fits a wide range of equipment: from B, C, D, E series backhoe loaders, through telehandlers, to bulldozers and graders. The lens protects the lamp interior from contaminants and ensures clear turn signaling.

Part Number: 1003250
Component Type: Indicator Lens / Turn Signal Lens
Color: Amber / Orange
Length: 137.1 mm
Width: 60.9 mm
Height (Depth): 27.9 mm
Shape: Rectangular
Manufacturer: GX-AFTER

GX-AFTER lenses are made of plastic with a Hard Coating. This minimizes damage caused by UV radiation (fading, dulling) and increases scratch resistance, which is crucial in difficult construction conditions.

Features of GX-AFTER 1003250 Lens

High Contrast: Intense amber color ensures excellent visibility of the turn or hazard signal, even in full sun.
UV Protection: Special coating prevents dulling and color loss, so the lamp looks new for a long time and meets safety standards.
Shock Resistance: Durable plastic is resistant to vibrations generated by the machine and minor mechanical impacts.
Sealed Protection: The lens effectively protects bulb sockets and electrical connectors from dust, mud, and moisture.

Application in CAT machinery

Machine Type Models / Series
Backhoe Loaders 416B, 416C, 416D, 420D, 422E, 424D, 426, 426B, 426C, 428, 428B, 428C, 428D, 428E, 430D, 432D, 432E, 434E, 436, 436B, 436C, 438, 438B, 438C, 438D, 442D, 442E, 444E
Skid Steers 216, 216B, 226, 226B, 226D, 232, 232B, 236, 236B, 242, 242B, 246, 246B, 247B, 248, 248B, 252B, 257B, 259D, 262, 262B, 267B, 268B, 277B, 287B (and B3, D3 versions)
Wheel Loaders 902, 904B, 906, 908, 914G, 924F/G/GZ, 928F/G, 936F, 938F/G/H, 950F/G/H, 960F, 962G/H, 966F/G/H, 970F, 972G/H, IT14, IT24, IT28, IT38, IT62
Telehandlers TH62, TH63, TH82, TH83, TH103
Graders 12H, 120H, 14H, 140H, 143H, 16H, 160H, 163H (ES, NA versions)
Others Rollers (CS/CP), Dumpers (D20D, D250), Pavers (AP-655C), Challenger (65E-95E), Forest Machines (550-580)

This is a very popular lens used in front combination lamps ("indicator/parking"). Check dimensions (137mm length).

Related Parts and Hardware

The lens is mounted with screws (not included). When replacing, we recommend checking the gasket condition and replacing amber or white bulbs (depending on regulations and lens color) to ensure proper light color.

⚠️ Safety Warning

A damaged indicator lens can allow water into the wiring, leading to contact corrosion and lighting failure. Lack of maneuver signaling creates a serious collision risk on the road and construction site.

Part Role in the Machine and Failure Diagnostics

Lens 1003250 ensures visibility of turn signals.

  • › White indicator light (faded lens).
  • › Water in lamp (lens crack, lack of tightness).
  • › Poor light visibility (outer surface dulling).
  • › Lack of tightness after washing (broken screw holes).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Tightening: Plastic lenses break easily when screws are overtightened. Tighten carefully, just until sealed ("finger tight").
  2. Gasket: Check if the lamp gasket is intact. If damaged, replace it or use a sealant to prevent fogging.
  3. Cleaning: Before installing the new lens, clean the lamp interior and reflectors from dust and moisture to ensure maximum brightness.

Frequently Asked Questions (FAQ)

Does it fit left and right sides?

Yes, usually this lens is symmetrical or fits both sides. Check the lamp on your machine to be sure.

Is this the complete lamp?

No, the offer applies only to the lens (plastic part). The lamp base, bulb sockets, and bulbs are not included.

Are screws included?

No. Lenses are sold without mounting screws. Use existing screws or buy new ones.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX992160A
100-3250
0.03 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
ARTICULATED / DUMP TRUCK
BACKHOE LOADER
SKID STEER LOADER
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
1003250

Specific References

MPN
100-3250
Łączna ocena:
4,0
Kupiłeś ten produkt? Napisz recenzję dla innych!

2021-06-29

solidny produkt

Ten klosz kierunkowskazu jest solidny i nie ma problemu z jego montażem. Polecam

Opinion:
(1 opinion)

Write a review

Front lamp indicator lens suitable for CAT

Catalog number: SKX992160A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

21.88 zł

net price
17,79 zł
Available in large quantity Temporarily unavailable
17,79 zł
net price

21.88 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 2 points, it gives you 0.80 zł
  • Lowest price from 30 days before the discount: 21.88 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    MACHINE TYPE
    ARTICULATED / DUMP TRUCK
    BACKHOE LOADER
    SKID STEER LOADER
    TELESCOPIC HANDLER
    WHEELED LOADER
    OEM NUMBERS
    1003250
