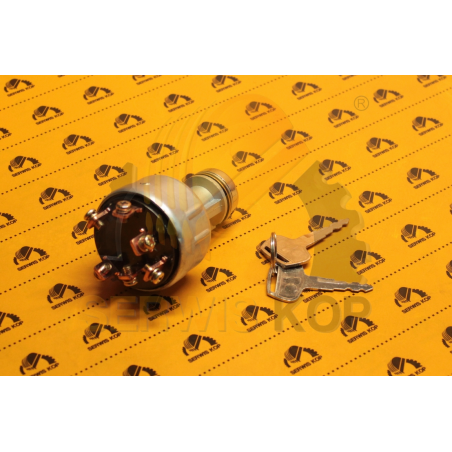

Ignition switch suitable for KOMATSU
GX-AFTER

Ignition switch suitable for KOMATSU

Catalog number:SKX096405A Nr OEM:20S-06-31130 Manufacturer:GX-AFTER
Add a review

Ignition Switch suitable for Komatsu PC05 PC10 - 20S-06-31130

Technical Specification and Compatibility

20S-06-31130 ignition switch from the GX-AFTER range. This is a key electrical component dedicated to Komatsu compact excavators (PC05, PC10, PC15 series and derivatives). The ignition switch is responsible for starting the engine, heating glow plugs, and powering electrical accessories in the machine.

Part Number: 20S-06-31130
Component Type: Ignition Switch / Start Switch
Kit Includes: Switch + Key Set
Manufacturer: GX-AFTER

GX-AFTER electrical components are proven OEM-quality replacements. The durable tumbler mechanism and solid contacts ensure long component life, even in difficult working conditions on construction sites (dust, vibration).

Features of GX-AFTER 20S-06-31130 Switch

Dust Resistance: Sealed design protects the internal mechanism from dust and moisture, which is crucial in mini excavators often working without a sealed cab.
Contact Precision: High-quality contact materials prevent connection burnout during engine startup (high current).
Ready to Install: The switch features Komatsu-compliant connectors, facilitating quick replacement without wiring modifications.
Complete Set: Product delivered with matching keys, ready to use right out of the box.

Application in Komatsu machinery

Brand Excavator Models
KOMATSU PC05-6, PC05-7, PC10-6, PC10-7, PC12R-8, PC15-2, PC15R-8, PC110R-1

The switch fits older and newer Komatsu mini excavator models. Please verify the part number in the catalog.

Related Parts and Hardware

The ignition switch is supplied with keys. In case of electrical system problems, it is also worth checking the condition of fuses, the starter relay, and the battery.

⚠️ Safety Warning

A damaged ignition switch can cause unexpected power disconnection while the machine is operating or a short circuit in the electrical system, creating a fire risk. If the key jams or falls out, replace the switch immediately.

Part Role in the Machine and Failure Diagnostics

Switch 20S-06-31130 controls current flow to the starter, glow plugs, and accessories.

  • › No starter response (burnt contacts inside switch).
  • › Key insertion problems (dirt or damaged tumblers).
  • › Machine stalls on bumps (internal play in contacts).
  • › Key does not return from start position (broken return spring - risks burning the starter).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Power Disconnect: Always disconnect the negative battery terminal before replacing the ignition switch to avoid accidental short circuits.
  2. Plug Verification: Check if the pins in the connector block are not corroded or melted. Replace connectors if necessary.
  3. Water Protection: If the mini excavator does not have a cab, after work, it is worth protecting the ignition panel from rain, which will significantly extend its life.

Frequently Asked Questions (FAQ)

Are keys included?

Yes, the new ignition switch is always supplied with a set of dedicated keys.

Does it fit other Komatsu models?

Number 20S-06-31130 is popular in small excavators. It may fit other PC series models, but we recommend verification by part number or appearance.

Does it have a glow plug function?

Yes, ignition switches for diesel engine machines typically have a position or function (e.g., turn left) to activate glow plugs.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX096405A
20S-06-31130
0.18 kg

Data sheet

SUITABLE FOR
KOMATSU
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
20S-06-31130

Specific References

MPN
20S-06-31130
Łączna ocena:
5,0
Kupiłeś ten produkt? Napisz recenzję dla innych!

2021-11-10

Bez zarzutu

Stacyjka pierwsza klasa;) Do tego super szybka obsługa i ekspresowy czas realizacji. Napewno wrócę do Serwis-Kop po więcej zamienników!


2021-09-10

Dobry produkt

Stacyjka jest OK. Pasuje do mojego pojazdu idealnie. Dostawa na czas. Polecam

Opinion:
(2 opinions)

Write a review

Ignition switch suitable for KOMATSU

Catalog number: SKX096405A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

59.66 zł

net price
48,50 zł
Available in large quantity Temporarily unavailable
48,50 zł
net price

59.66 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 5 points, it gives you 2.00 zł
  • Lowest price from 30 days before the discount: 59.66 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    KOMATSU
    MACHINE TYPE
    EXCAVATOR
    OEM NUMBERS
    20S-06-31130
