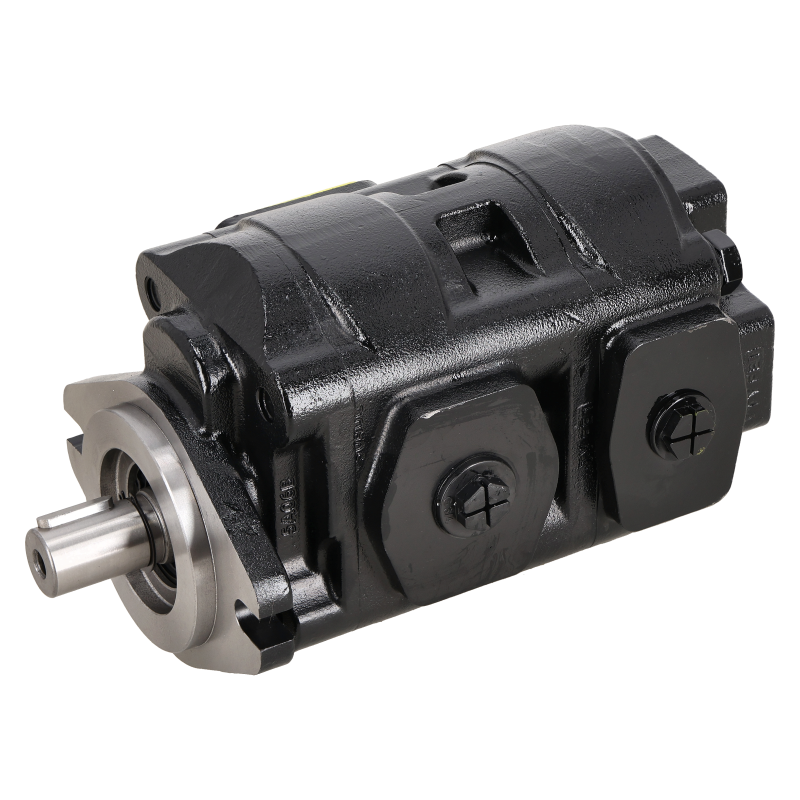

Hydraulic Pump 33/22 – Suitable for JCB 3CX
GX-AFTER

Hydraulic Pump 33/22 – Suitable for JCB 3CX

Catalog number:SKX974579A Nr OEM:919/71400 Manufacturer:GX-AFTER
Add a review

Part Number: 919/71400
Alternative Numbers: 919/66800
Type: Gear Pump, Tandem (Two-Section)
Manufacturer: AFTERMARKET
Application: JCB 3CX Backhoe Loaders (older models)

We recommend verifying the part number on your old pump's housing and confirming the specifications (shaft, ports, rotation) before purchasing.

Product Description

The TANDEM 33/22 hydraulic pump is a critical component of the working hydraulic system in JCB 3CX backhoe loaders. This aftermarket two-section gear pump provides flow rates of 33 cc/rev + 22 cc/rev and generates the pressure and hydraulic flow required to operate both the front loader and the rear digging arm.

Robust construction and standard SAE/BSPP connections ensure reliable operation in demanding work conditions.

Technical Specifications

  • Flow – Section 1: 33 cc/rev
    (approx. 33 L/min at 1000 RPM)

  • Flow – Section 2: 22 cc/rev
    (approx. 22 L/min at 1000 RPM)

  • Rotation Direction: Left (CCW – counterclockwise, viewed from the shaft end)

  • Shaft: 1.125” (28.8 mm), parallel key

  • Mounting Flange: SAE B, 2 holes

  • Suction Port: Common, 2” SAE flange

  • Pressure Port – Front Section: 3/4" BSPP

  • Pressure Port – Rear Section: 5/8" BSPP

Function and Failure Diagnostics

The hydraulic pump is the heart of the hydraulic system, converting engine mechanical power into hydraulic pressure that drives all actuators and machine functions. Pump failure results in partial or complete immobilization of the backhoe loader.

Typical signs of wear or damage:

  • Loud pump operation (whining, grinding) – indicates cavitation or bearing wear.

  • Very slow hydraulic function despite high engine RPM.

  • Loss of lifting power – the machine cannot lift the load or “struggles” under load.

  • Rapid overheating of hydraulic oil.
SKX974579A
919/71400
29.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
919/71400 / 919/66800

Specific References

MPN
919/71400
