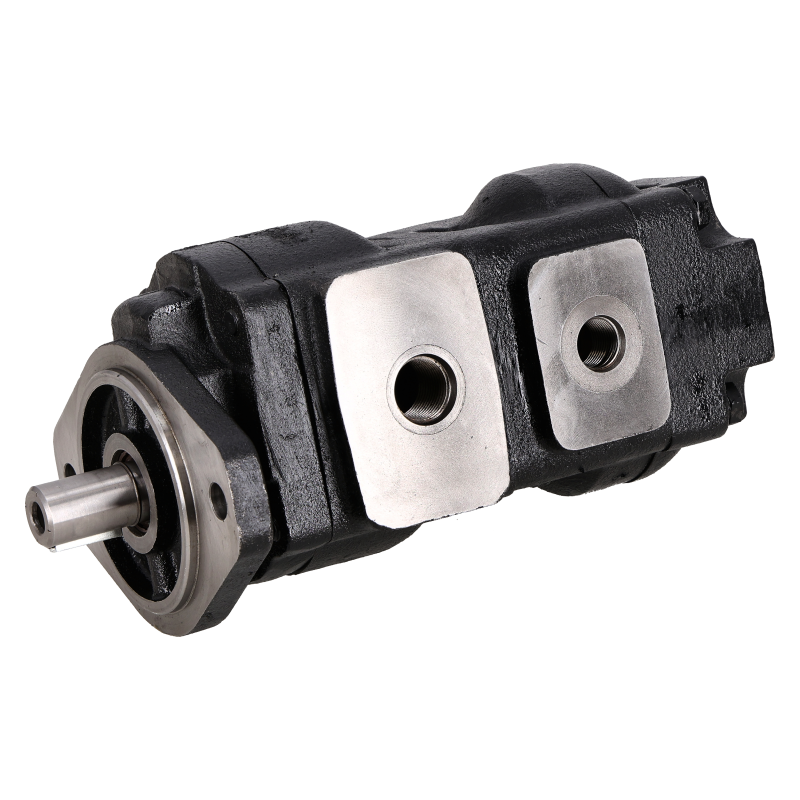

Hydraulic Pump 36/26 ccr – suitable JCB 3CX, 4CX
GX-AFTER

Hydraulic Pump 36/26 ccr – suitable JCB 3CX, 4CX

Catalog number:SKX971338A Nr OEM:20/912800 Manufacturer:GX-AFTER
Add a review

Part Number: 20/912800
Alternative Numbers: 20/902900, 400/E0868
Type: Tandem (dual-section) hydraulic gear pump

The 36/26 ccr hydraulic pump is a core component of the hydraulic system in JCB 3CX and 4CX backhoe loaders. It is the heart of the hydraulic system, responsible for generating oil flow and pressure to power all working functions such as the boom, bucket, loader arms, auxiliary hydraulics, and attachments.

Its precision gear design and high-strength materials ensure factory-level performance, full hydraulic power, and fast, smooth operation even under heavy-duty working conditions.

The pump features two independent working sections with a shared suction port, allowing stable and simultaneous operation of multiple hydraulic circuits.

Technical Specifications

  • Rotation: Counter-clockwise (viewed from shaft end)

  • Drive shaft: 1" (25.4 mm), parallel with key

  • Mounting flange: SAE B, 2-bolt

  • Front section displacement: 33 cc/rev (33 l/min at 1000 rpm)

  • Rear section displacement: 29 cc/rev (29 l/min at 1000 rpm)

  • Inlet (suction): Common SAE 2" flange

  • Front outlet: 1 1/16”–12 UNF thread

  • Rear outlet: 7/8”–14 UNF thread

Function and Failure Diagnosis

A worn or damaged hydraulic pump leads to reduced system pressure and loss of machine performance, potentially immobilizing the entire machine.

Common failure symptoms:

  • Loss of power on all hydraulic functions

  • Very slow hydraulic response, especially when oil is warm

  • Loud whining noise indicating cavitation or internal wear

  • Overheating of hydraulic oil

  • Metal particles found in hydraulic oil or filter

Application in machines

Machine Configuration Engine Type
3CX Centremount (AA, AB, AR, AK)
3CX Sideshift (AA, AB, AR, AK)
3CX Sitemaster & Contractor (AA, AB, AR, AK)
3CX SUPER & 444 SUPER (AA, AB, AR, AK)

The list above is for reference. Before purchasing, we recommend verifying the part number in the parts catalogue for your machine.

SKX971338A
20/912800
23.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
20/912800 / 20/902900 / 400/E0868

Specific References

MPN
20/912800
