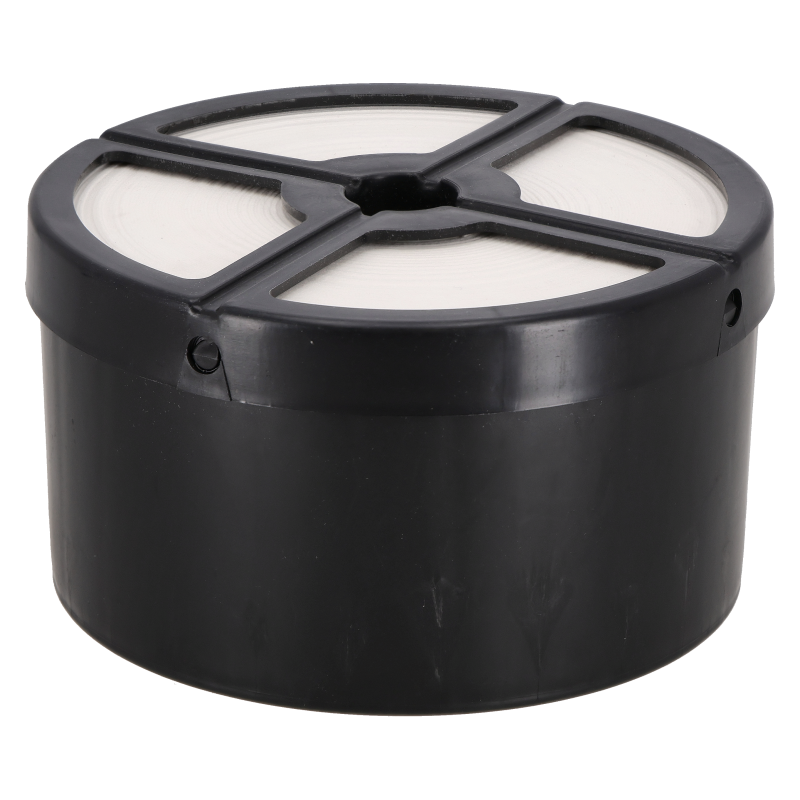

PLEXUS Hydraulic Filter – suitable for JCB Excavators
REDX

PLEXUS Hydraulic Filter – suitable for JCB Excavators

Catalog number:SKX821191RX Nr OEM:32/925140 Manufacturer:REDX
Add a review

Hydraulic Plexus Filter suitable for JCB JS200 JS220 - 32/925140

Technical Specification and Compatibility

Hydraulic filter element with part number 32/925140 from the REDX offer. It is an advanced return filter made in Plexus technology, dedicated to heavy JCB JS series excavators (tracked and wheeled). Mounted directly in the hydraulic tank, it constitutes the most important line of defense for the system, cleaning the oil returning from cylinders and hydraulic motors before it reaches the main pump again.

Part Number: 32/925140
Component Type: Hydraulic Filter Element (Plexus)
Location: Oil Tank (Return Line)
Outer Diameter: 195 mm
Inner Diameter: 40 mm
Height: 110 mm
Technology: Plexus (Micronic Filtration)
Manufacturer: REDX

Features of REDX 32/925140 Filter

Return Filtration: Cleans the oil just before it enters the tank, preventing the accumulation of contaminants generated by working components (cylinders, motors).
Large Surface: The 195 mm diameter provides a huge absorption surface, allowing for long operation without increasing back pressure in the return system.
Pump Protection: Stops contaminants that could cause scratching of the surface and seizure of the main pump.
Specific Dimensions: Height 110 mm and hole 40 mm are characteristic for the Plexus system in JCB JS machines.

Application in JCB machinery

Machine Type Models
Crawler Excavators JS200, JS210, JS220, JS235, JS240, JS260, JS290, JS330, JS360, JS370, JS460, JS500
Wheeled Excavators JS200W

Filter dedicated to heavy JS series excavators. Check dimensions (195mm diameter) before purchasing.

Related Parts and Hardware

When replacing the hydraulic cartridge, always replace the sealing O-ring of the filter cover (often a large gasket with a diameter similar to the filter). It is also worth checking the hydraulic oil level and the pilot filter (servo).

⚠️ Operational Warning

The Plexus system ensures ultra-fine filtration. Using cheap substitutes that do not meet the Plexus standard (e.g., have inferior filtration mesh) exposes the hydraulic pump to destruction by micro-contaminants that the human eye cannot see.

Part Role in the Machine and Failure Diagnostics

Filter 32/925140 takes care of the "health" of the entire hydraulic system.

  • › Slow hydraulics (clogged filter causes return restriction).
  • › Oil overheating (too much flow resistance through dirty filter).
  • › Pump cavitation (if the filter is partially blocked).
  • › Visible filings on the filter (signal of pump or cylinder failure).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Cleanliness: Replacing the hydraulic filter requires sterile cleanliness. Before opening the tank, thoroughly clean the lid of dust and sand.
  2. Pressure Release: Before opening the tank, be sure to release pressure from the system (unscrew the filler cap slowly) to avoid hot oil spurting out.
  3. O-ring: Always install a new O-ring under the filter lid. The old gasket may be deformed and will cause a tank leak.

Technical FAQ and Trivia

What is the Plexus system?

Plexus is a hydraulic oil filtration technology developed by JCB, which ensures extremely thorough cleaning (up to 1.5 microns). Thanks to this, oil change intervals can be extended, and component life increases.

Where is this filter?

The return filter is usually located inside the hydraulic oil tank. Access to it is gained by unscrewing the round lid on top of the tank.

Oil cleanliness trivia

The human eye sees particles of about 40 microns in size. The Plexus filter stops particles much smaller (even 1.5-5 microns), which means it removes contaminants that you don't even see, but which are lethal to precision hydraulics.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX821191RX
32/925140
2.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
32/925140 / SH 60180 / SH60180 / HY90440
OUTER DIAMETER (MM)
195
INNER DIAMETER (MM)
40
HEIGHT (MM)
110

Specific References

MPN
32/925140
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

PLEXUS Hydraulic Filter – suitable for JCB Excavators

Catalog number: SKX821191RX
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

97.79 zł

net price
79,50 zł
Available in large quantity Temporarily unavailable
79,50 zł
net price

97.79 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 8 points, it gives you 3.20 zł
  • Lowest price from 30 days before the discount: 97.79 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    EXCAVATOR
    OEM NUMBERS
    32/925140 / SH 60180 / SH60180 / HY90440
    OUTER DIAMETER (MM)
    195
    INNER DIAMETER (MM)
    40
    HEIGHT (MM)
    110
